CHASSIS
3-29
Toro TimeCutter SW/SWX Service Manual
3

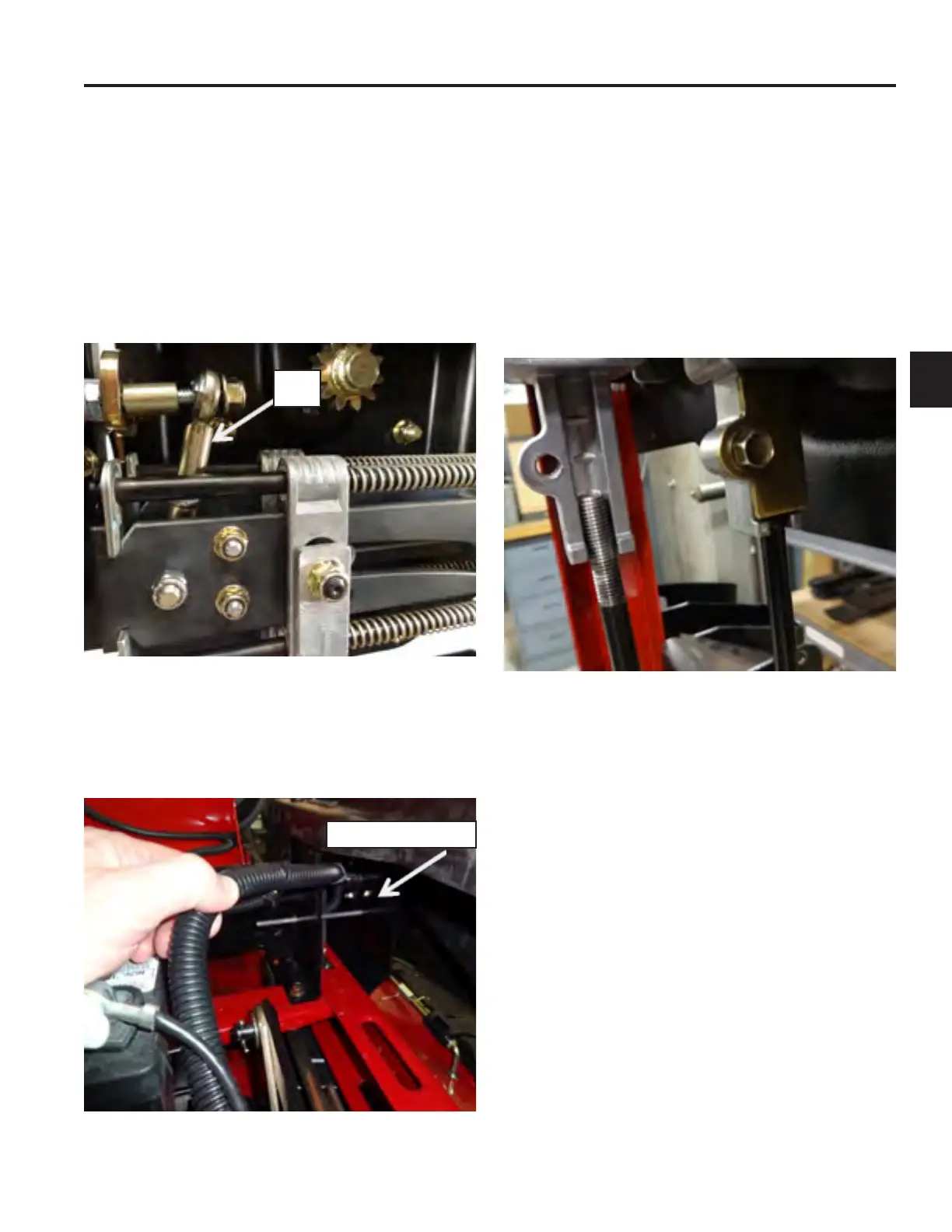

4. If a dowel pin will not insert through the speed
control assembly and the hole in the chassis,
then the rod end (A) will have to be adjusted.
Remove the nut on the rod end and remove the
rod end from the bolt. Insert a dowel through
the speed control until the pin goes through the
holes on the speed control and the chassis as
shown in step 3. Turn the rod end until it can be
placed on the bolt, re-install the nut on the bolt
(A).
5. Lift up the seat and insert a 1/4 in. dowel pin
through both alignment hoes on both sides of
the hydro rod bell cranks (for more information
refer to the “Steering System-Alignment”
service information sheet).
6. When all four pins are installed (traction pedal,
speed control assembly, one on each side bell
cranks), connect the hydro rods to the speed
control assembly. Insert the rods into the the
correct slot on the speed control. Place the rod
end cover on top and torque bolts to 80-100
in-lbs. (9-11.5 Nm). Remove all four 1/4 in.
pins and connect the speed control cables as
outlined in “Cable Replacement.” Re-install the
top shroud and test drive.
A
1/4 in. Dowel Pin
SPEED CONTROL ASSEMBLY - ZERO TURN TRACTOR
