ENGINE
4-2
Toro TimeCutter SW/SWX Service Manual
4
Fig. 034 PICT-1080

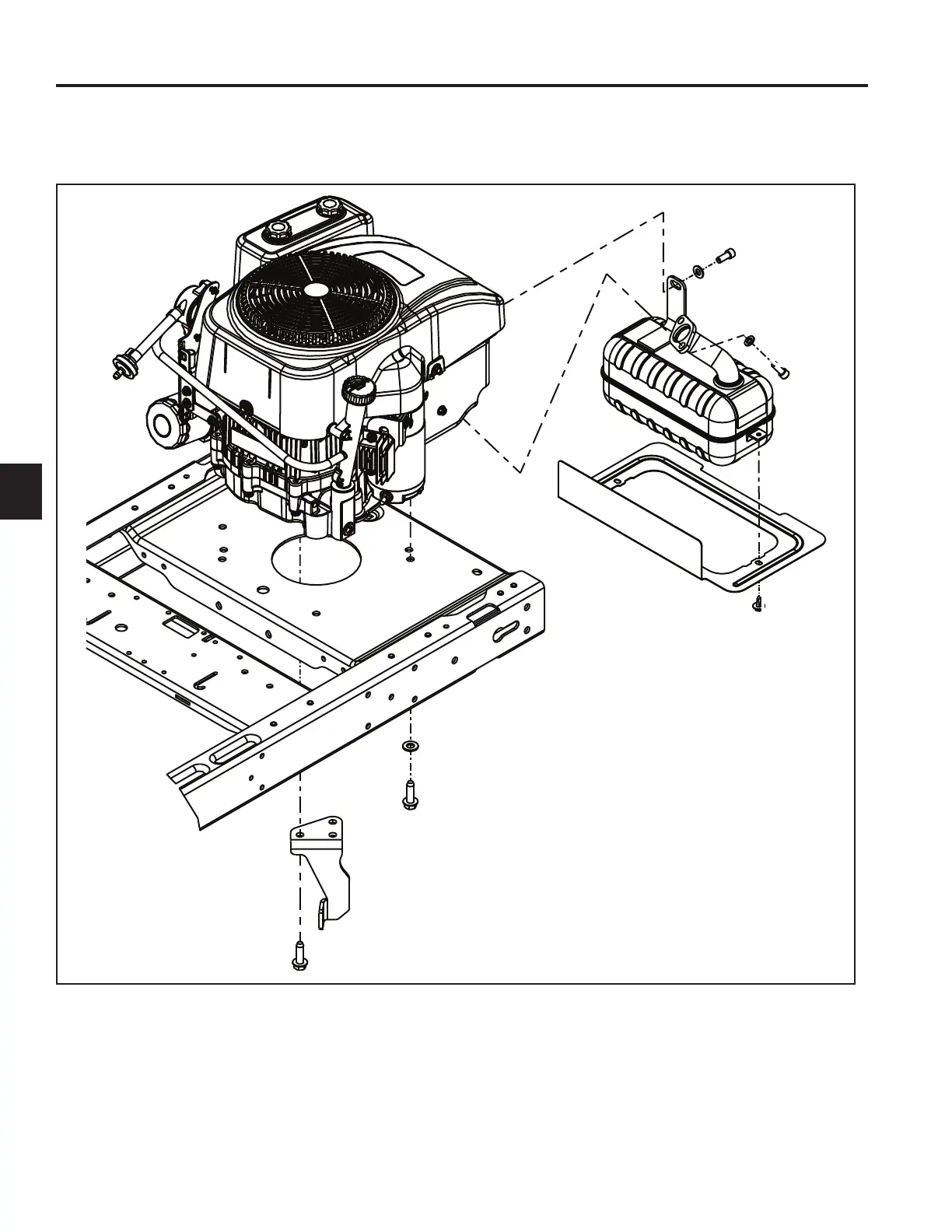

Engine Mounting - Toro LC1P92F Engine
(Fig. 034)
A. Clutch stop
B. Engine to chassis mounting bolts (4) - torque in a
cross pattern, apply Loctite
®
242 - 33 ft-lbs. (44 Nm)
C. Mufermountingbolts-13.5ft-lbs.(17.5Nm)
D. Heat shield mounting bolts - 5 ft-lbs. (7 Nm)
C
C
D
B
B
A
