HYDROSTATIC DRIVE SYSTEM
5-8
Toro TimeCutter SW/SWX Service Manual
5

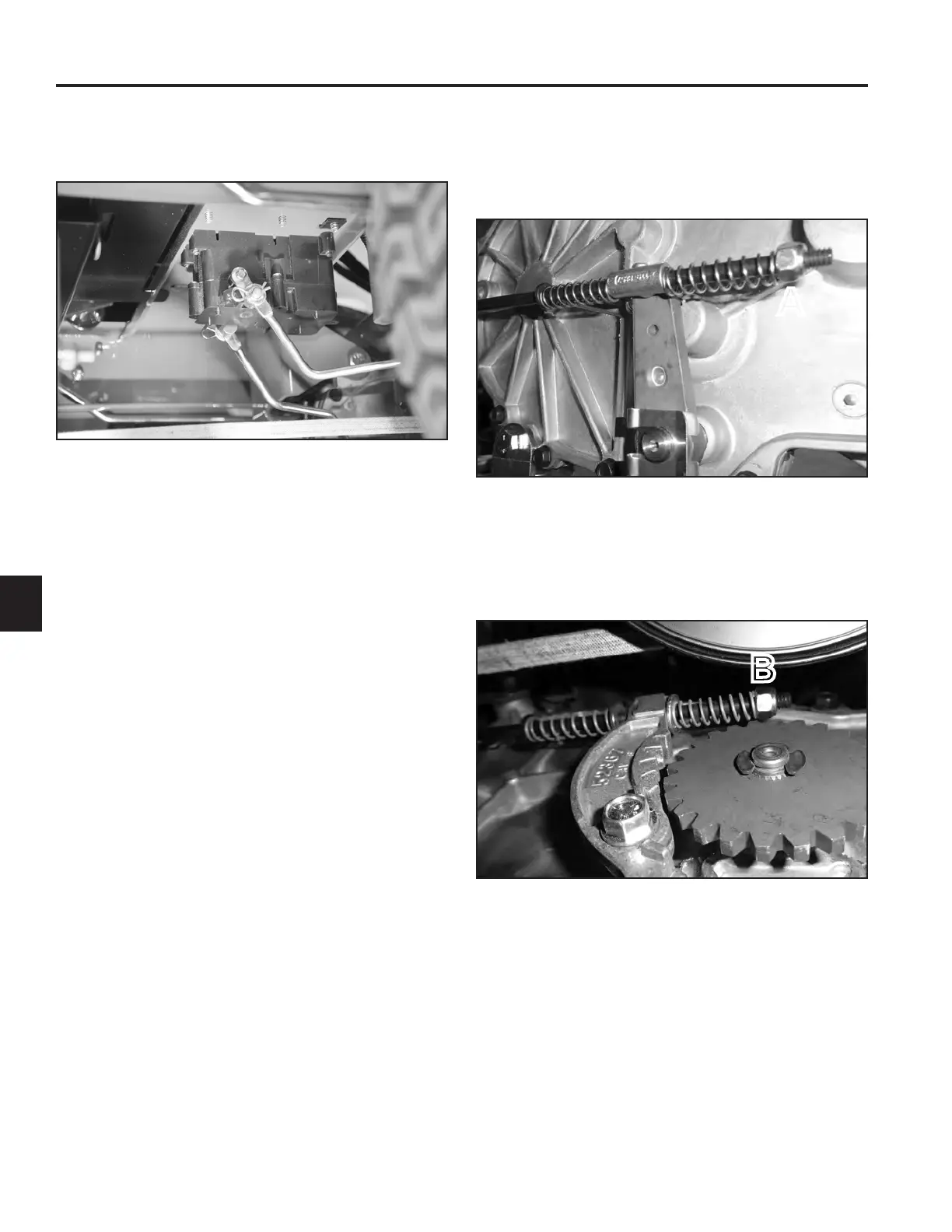

Fig. 060 IMG-0968b
7. Remove the brake rod from the hydro:
All TimeCutter SW 54 inch SWX 50 inch models only
– Remove the nut (A) and the spring. Remove the brake
rod from the unit (Fig. 061).
6. Remove the brake rod from the brake actuator
module (Fig. 060). See “Brake Actuator Module” on
page 7-6.
All TimeCutter SW 32 & 42 inch and SWX 42 inch
models – Remove the nut (B), spring and washer.
Remove the brake rod from the unit (Fig. 062).
Fig. 062 PICT-1102
B
Fig. 061 PICT-1101
A
