HYDROSTATIC DRIVE SYSTEM
5-10
Toro TimeCutter SW/SWX Service Manual
5
13. Narrow Frame Only– Remove the (2) outer hydro
mounting fasteners (Fig. 067).

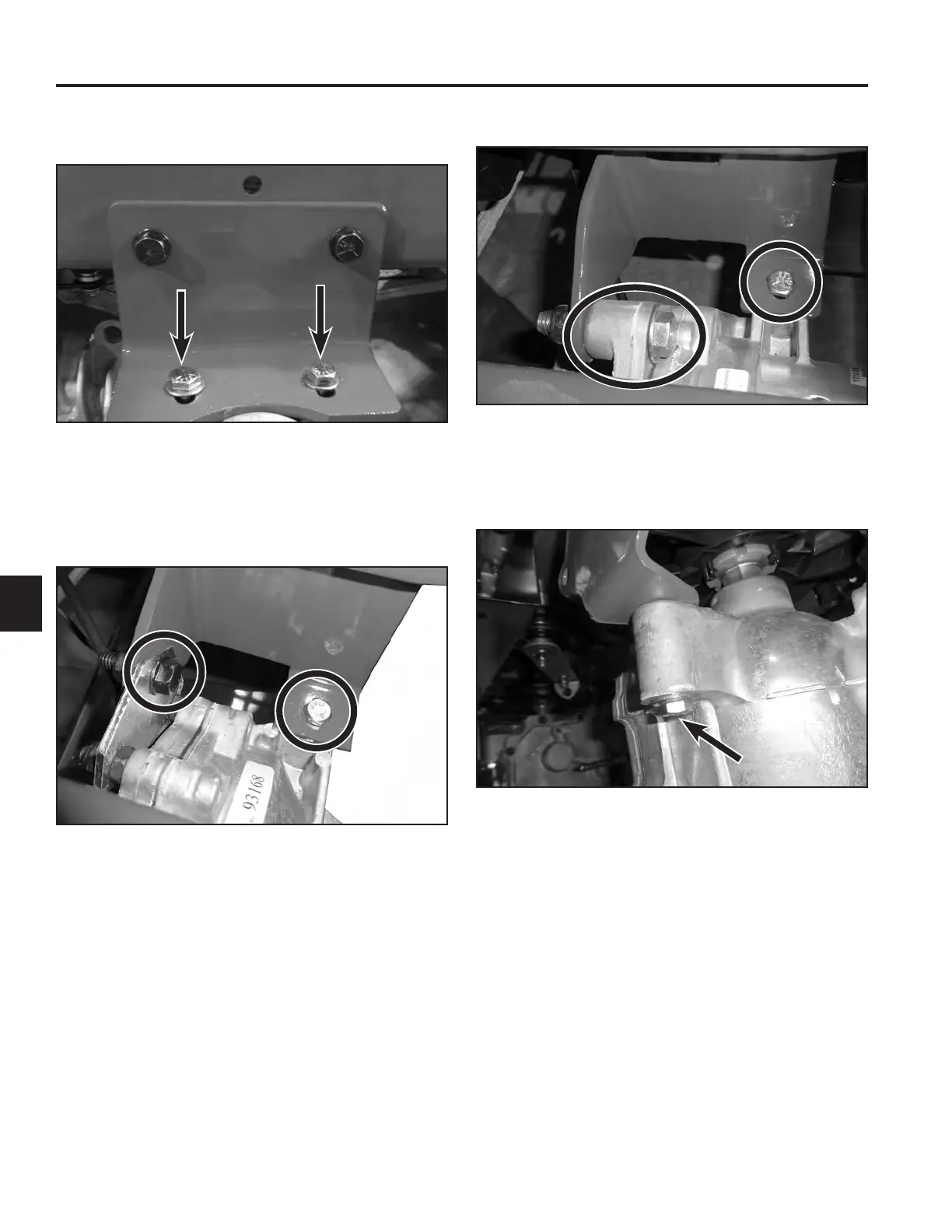

Fig. 067 PICT-1100
14. Remove the (2) front hydro mounting fasteners.
Wide Frame (Fig. 068)
Fig. 068 PICT-1106
Fig. 069 PICT-1098
Narrow Frame (Fig. 069)
15. Remove the (1) rear hydro mounting fastener (Fig.
070).
Fig. 070 PICT-1099
16. Lower the hydro assembly and remove it from the
frame.
