Toro TX 427 - Front Screen Removal Steps; Front Screen, Oil Cooler, and Weights Removal

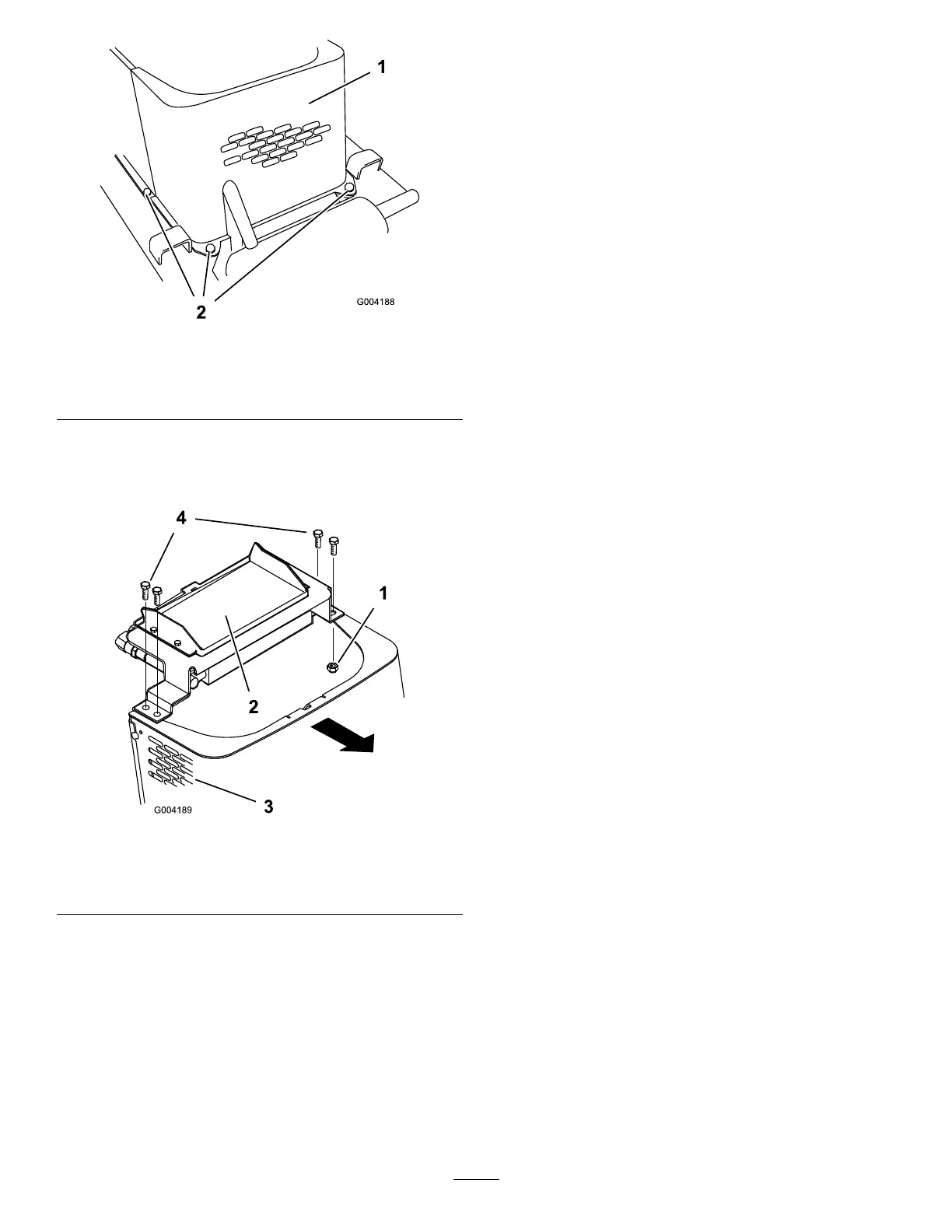

g004188
Figure28
1.Frontscreen
2.Bolts(leftsideboltnot
shown)
6.Removetheshoulderboltsandnutssecuring
theoilcoolertothetopofthefrontscreen
(Figure29).
g004189
Figure29
1.Nut3.Frontscreen
2.Oilcooler4.Shoulderbolts
7.Removethefrontscreen.
8.Whennished,installthefrontscreenwiththe4
boltsremovedpreviously.
9.Installtheoilcoolertothefrontscreenwiththe4
shoulderboltsandnutsremovedpreviously.
10.Slidetheslopedplatebetweentheframeand
theweights;secureittothefrontscreengrill
usingthecarriageboltsandnutsremoved
previously(Figure27).
11.Tightentheboltssecuringthefrontweights
(Figure27).
12.Installthesidescreensandclosethehood.
25
