Toro TX 700 - Lifting the Machine

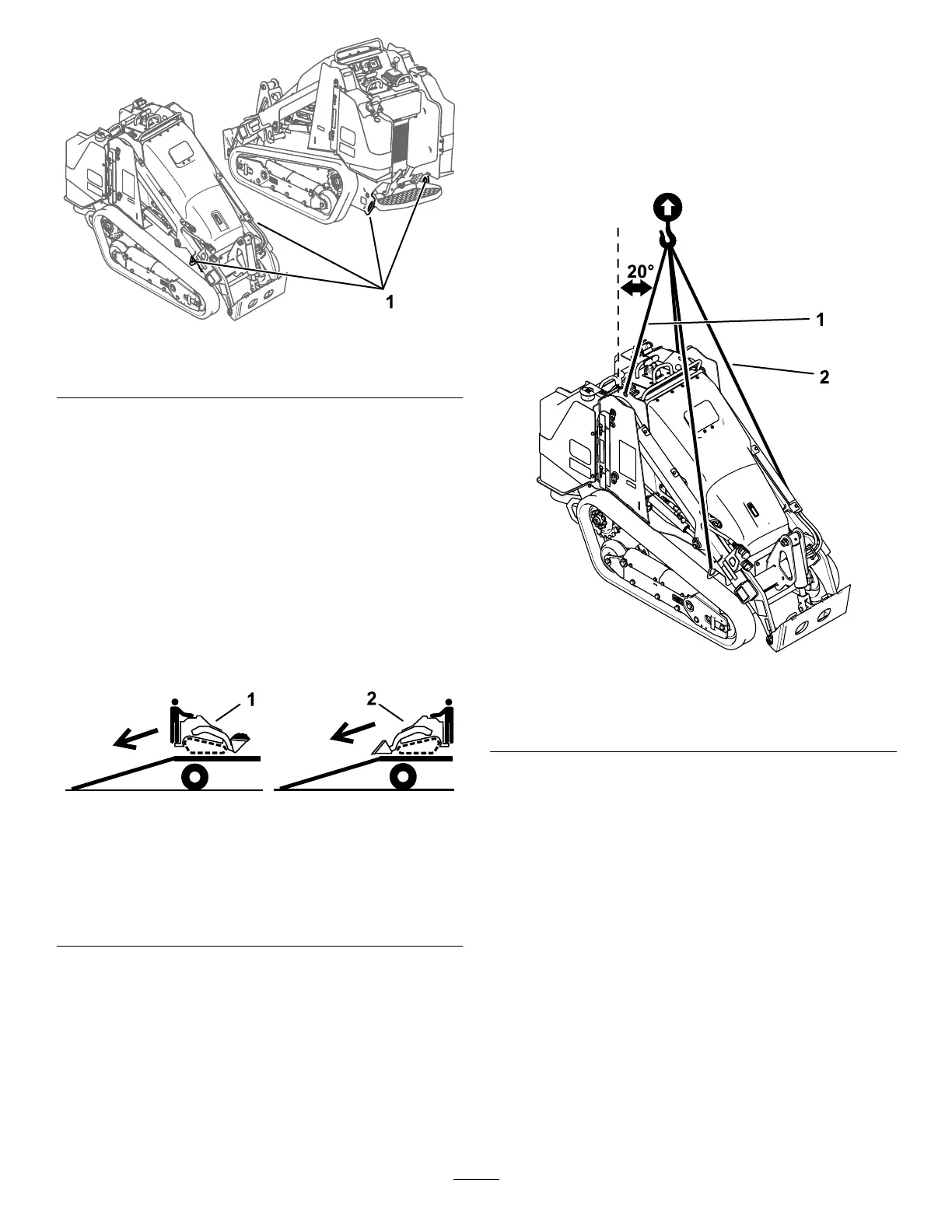

g411229
Figure29
1.Tie-downloops
UnloadingtheMachine
1.Lowertheramp(s).
2.Unloadthemachinefromthetrailerwiththe
heavyenduptheramp,carryingloadslow.
•Ifthemachinehasafullload-bearing
attachment(e.g.,bucket)ora
non-load-bearingattachment(e.g.,
trencher),backitdowntheramp.
•Ifthemachinehasanemptyload-bearing
attachmentornoattachment,driveitforward
downtheramp.
g204458
Figure30
1.Machinewithfull
attachmentor
non-load-bearing
attachment—backthe
machinedownthe
ramp(s).
2.Machinewithemptyor
noattachment—drivethe
machineforwarddownthe
ramp(s).
LiftingtheMachine
Removeanyattachmentsandliftthemachineusing
the4liftpoints.
Donotexceeda20-degreeanglewhenliftingthe
machine;usetheminimumchainlengthsprovided
below.
g377831
Figure31
1.Chainlengthforrearliftpoint(2)—118.9cm(46.8inches)
2.Chainlengthforfrontliftpoint(2)—206.2cm(81.2inches)
