Toro TX 700 - Checking the Hydraulic-Fluid Level; Replacing the Hydraulic Filter

Checkingthe
Hydraulic-FluidLevel
ServiceInterval:Every25hours
Important:Alwaysusethecorrecthydraulic
uid.Unspecieduidswilldamagethehydraulic
system.RefertoHydraulicFluidSpecications
(page47).
1.Removeanyattachments.
2.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
3.Shutofftheengineandremovethekey.
4.Raisethebracket.

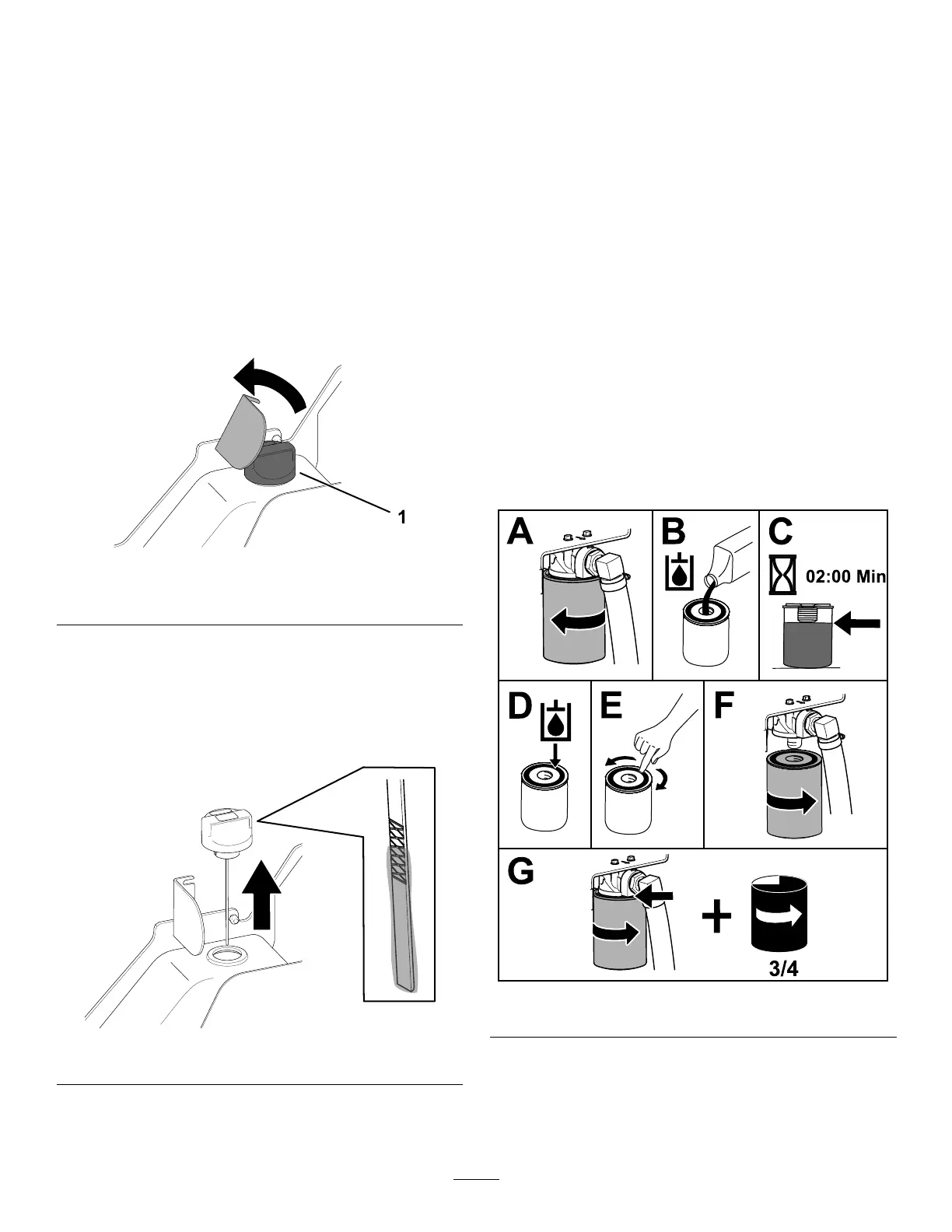

g366993
Figure70
1.Fillercap
5.Cleantheareaaroundthellercap.
6.Removetheller-neckcapandchecktheuid
levelonthedipstick.
Note:Theuidlevelshouldbewithinthemarks
onthedipstick.
g366992
Figure71
7.Ifthelevelislow,addenoughuidtoraiseitto
theproperlevel.
8.Installthellercap.
9.Lowerthebracket.
ReplacingtheHydraulic
Filter
ServiceInterval:Aftertherst8hours
Every250hours
Important:Donotsubstituteanautomotiveoil
lter;otherwise,severehydraulicsystemdamage
mayresult.
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowertheloaderarms.
2.Shutofftheengineandremovethekey.
3.Openthehoodandsecuretheproprod.
4.Placeadrainpanunderthelterandreplace
thelterasshown.
g367095
Figure72
5.Cleanupanyspilleduid.
6.Starttheengineandletitrunforabout2minutes
topurgeairfromthesystem.
7.Shutofftheengineandcheckforleaks.
