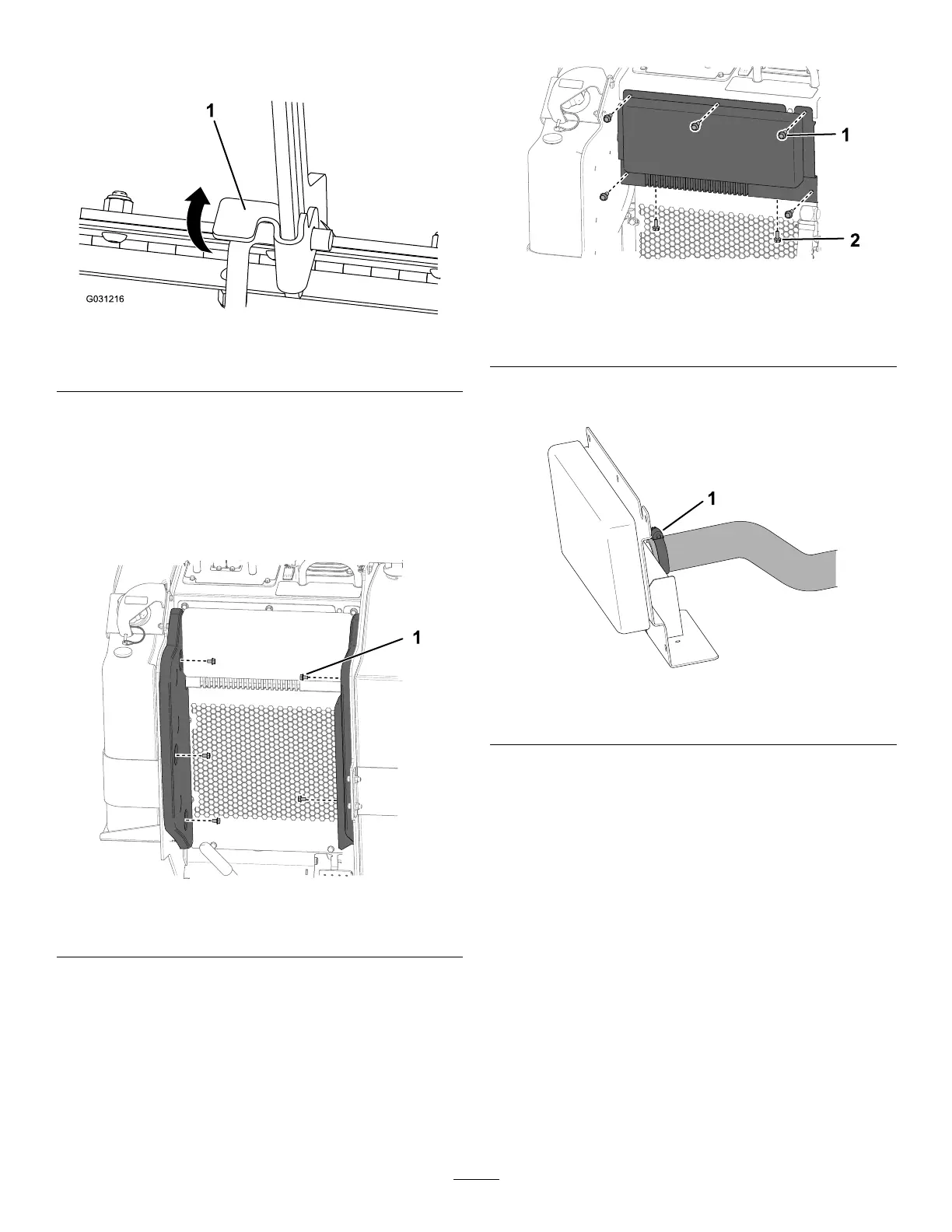

ClosingtheHood
1.Liftuponthetabsecuringtheproprod.
g031216
Figure34
1.Prop-rodtab
2.Lowerthehoodandsecureitbypushingdown
onthefrontofthehooduntilitlocksinplace.
3.Usethelatchkeytosecurethelatch.
RemovingtheRearCover
1.Removethe2sidecushions.
g367613
Figure35
1.Hex-washerheadbolt—5/16x1/2inch(5)
2.Removetherearcover.
g367612
Figure36
1.Hex-washerhead
bolt—3/8x1inch(5)
2.Hex-washerhead
bolt—5/16x3/4inch
(2)
3.Loosenthehoseclamponthehoseand
disconnectthehosefromthecover.
g367611
Figure37
1.Hoseclamp
