Page 6 -- 16 Workman GTX GasolineChassis

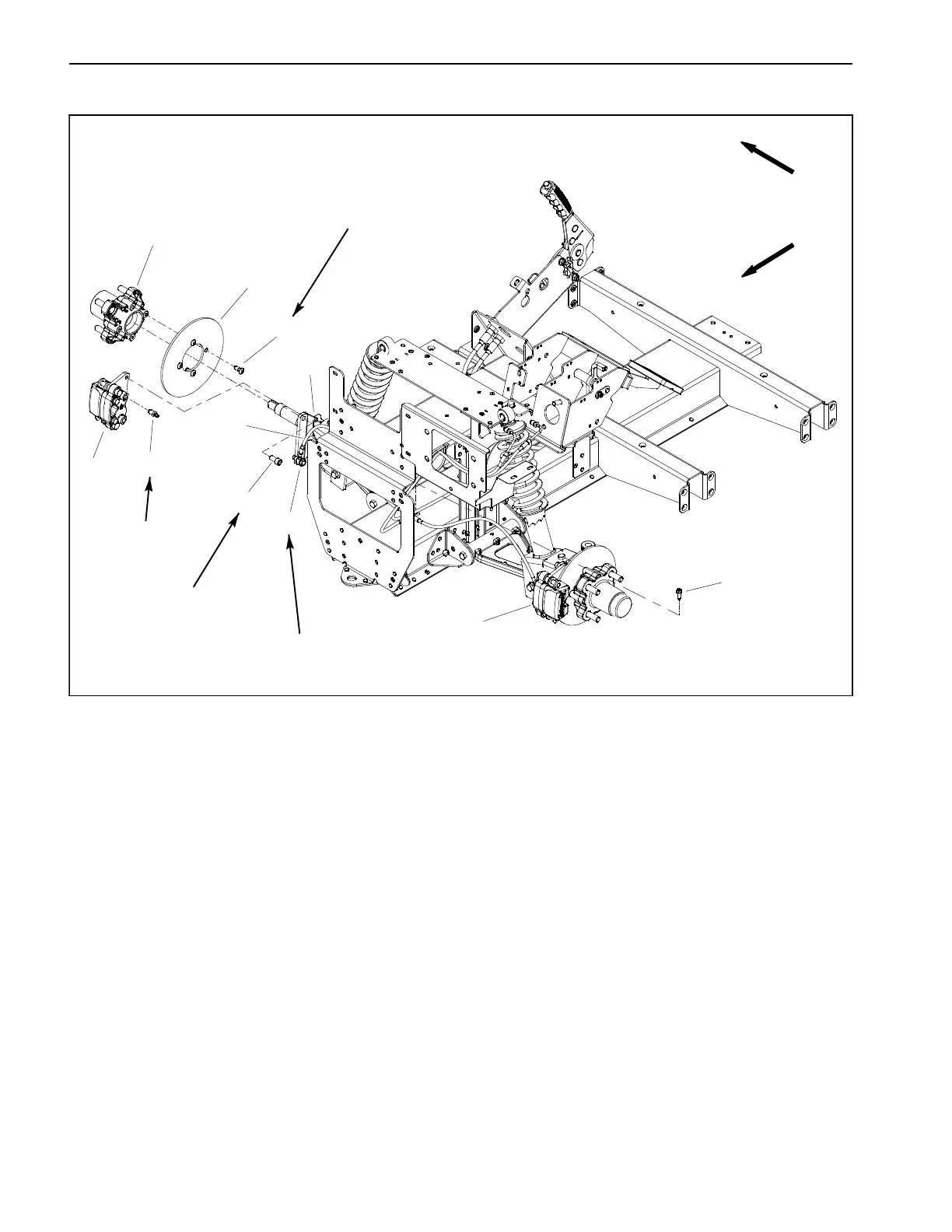

Front Brake Calipers
1. LH brake caliper
2. RH brake caliper
3. Socket head screw (2 per caliper)
4. Wheel hub assembly (2 used)
5. Brake rotor (2 used)
6. Socket head screw (4 per rotor)
7. Spindle (RH shown)
8. Front brake line
9. Banjo bolt
10. Bleed screw
11. Washer head screw
Figure 14
FRONT
RIGHT
9to11ft--lb
(13to14N--m)
2
3
6
8
9
10
11
1
5
7
4
108 to 132 in--lb
(12.3 to 14.9 N--m)
54 to 66 in--lb
(6.1 to 7.4 N--m)
35 to 40 ft--lb
(48to54N--m)
Medium Strength
Thread Locker
