Workman GTX Gasoline
Drive Train
Page 4 − 10

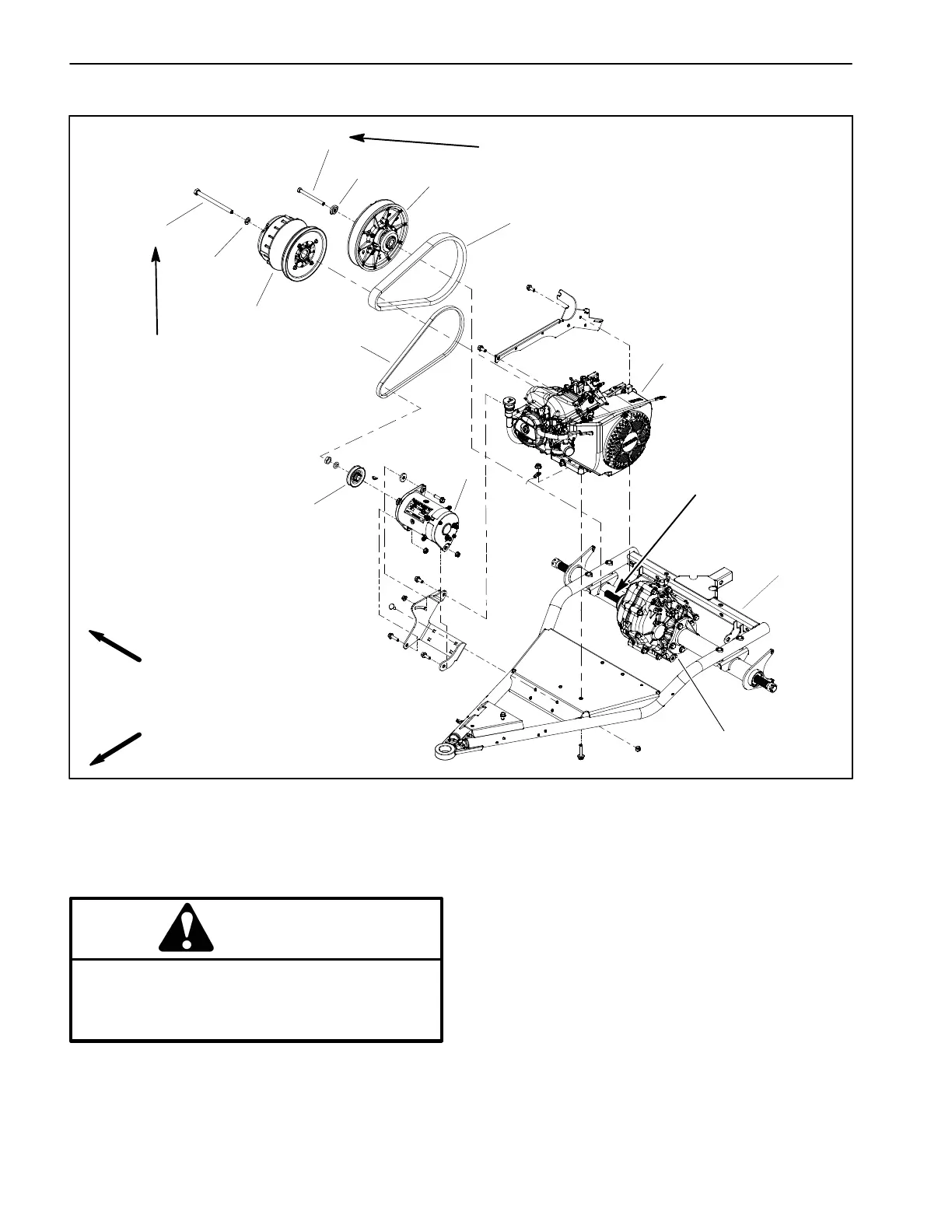

Primary and Secondary Clutches
1. Engine
2. Starter/generator
3. Starter/generator drive belt
4. Starter/generator pulley
5. CVT drive belt
6. Primary clutch
7. Cap screw
8. Flat washer
9. Secondary clutch
10. Cap screw
11. Stepped washer
12. Vehicle swing arm
13. Transaxle assembly
Figure 8
17 to 22 ft−lb
(24 to 29 N−m)
7
4
5
3
2
6
1
8
9
10
11
FRONT
RIGHT
Antiseize
Lubricant
12
13
39 to 47 ft−lb
(53 to 63 N−m)
CAUTION
The engine, exhaust system and drive system
components may be hot. To avoid possible
burns, allow all components to cool before work-
ing on drive system components.
Removal (Fig. 8)
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the key switch.
2. Allow engine, exhaust system and drive system to
cool before working on drive system.
3. Raise and support vehicle cargo bed (if installed) to
allow access to clutches.
4. Remove CVT drive belt from the primary and sec-
ondary clutches (see CVT drive belt in this section).
