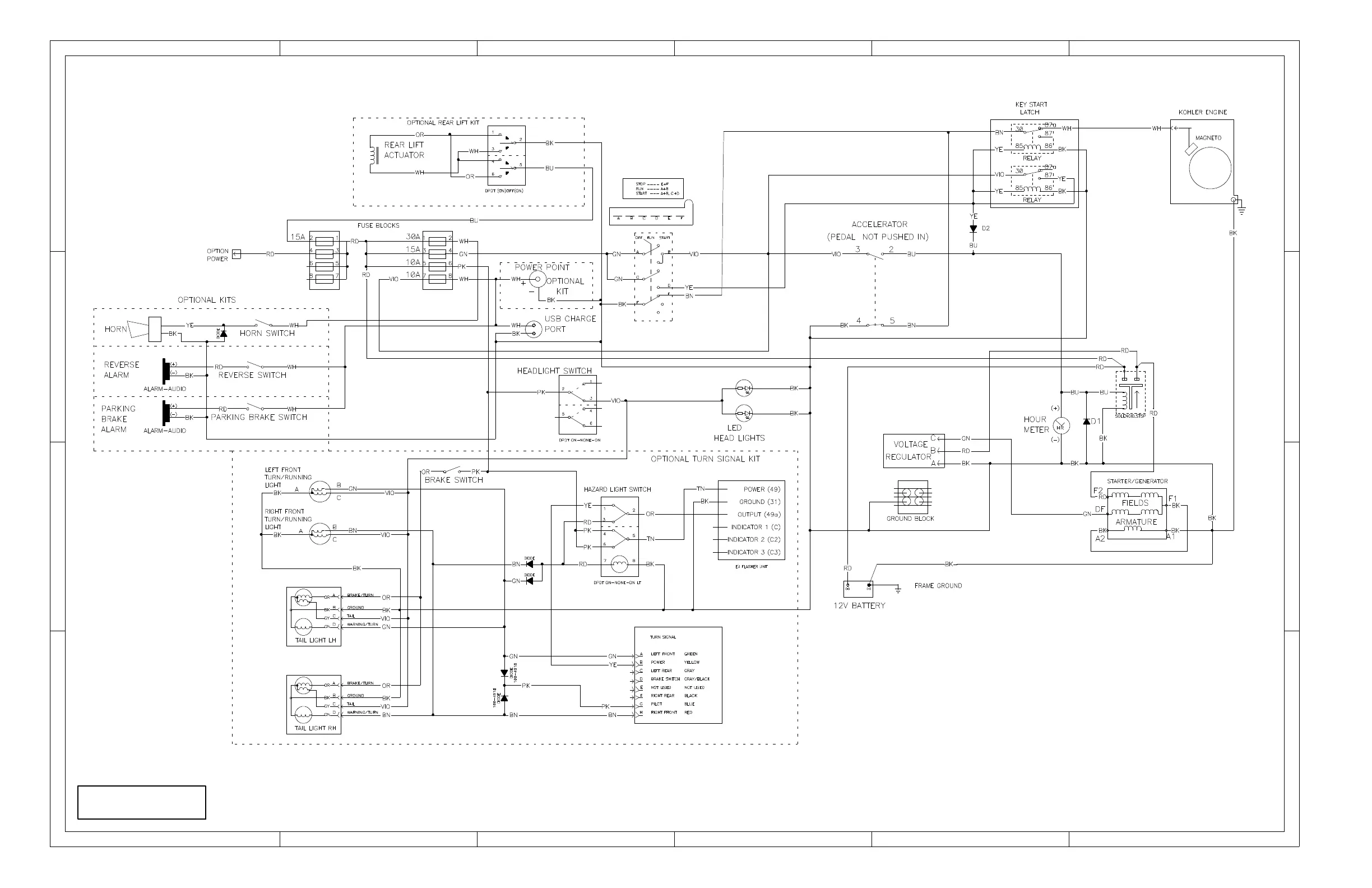

Toro Workman GTX - Electrical Schematic (Carbureted Engine)

Page 7 -- 4
D
C
B
A
654321
D
C
B
A
654321
122--1144 REV. A
Electrical Schematic
All relays and solenoids
are shown as de--energized.
All ground wires are black.
Workman GTX Gasoline
(carbureted engine)
401400001 to 403448000
Machine serial number
