Page 6 -- 44 Workman GTX GasolineChassis

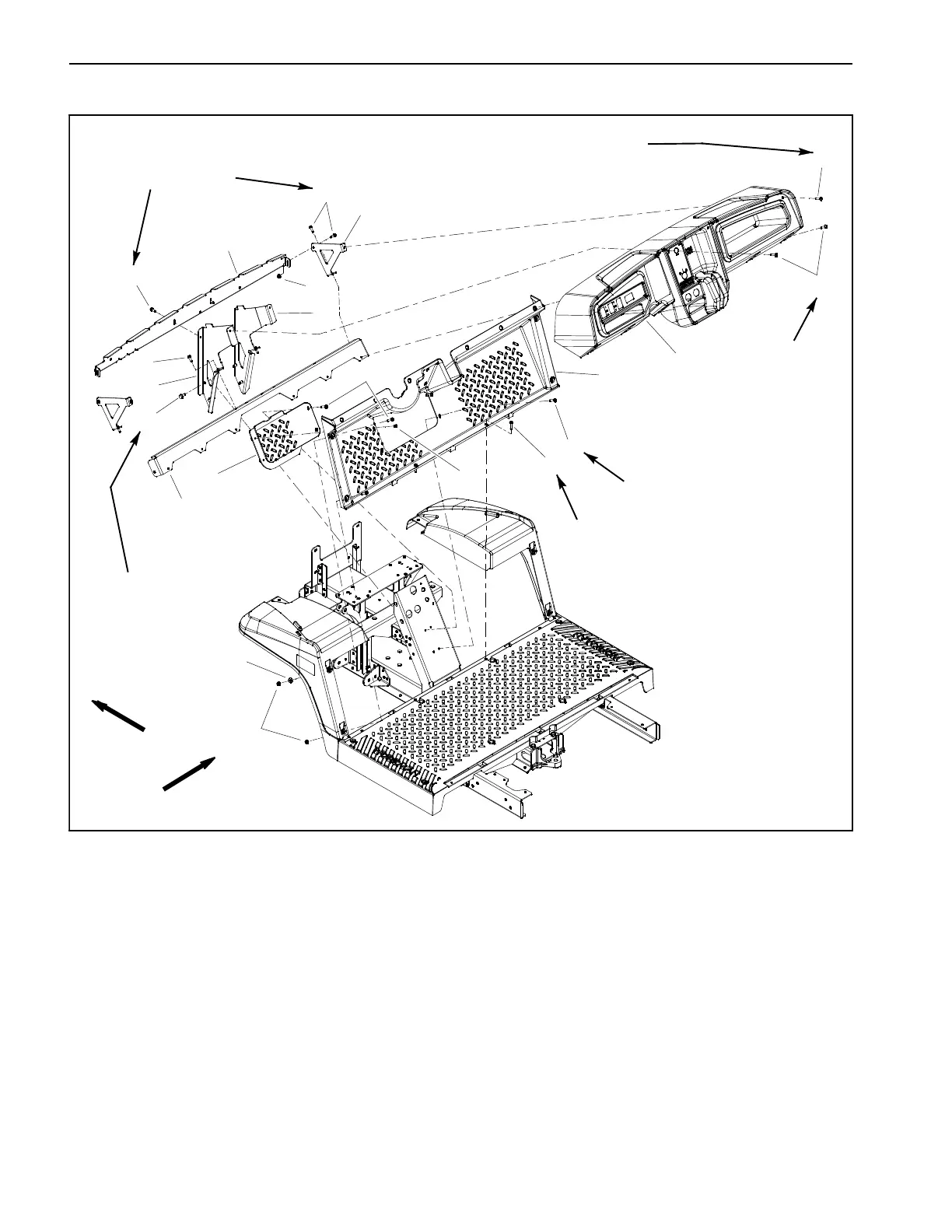

Dash
1. Dash
2. Washer head screw (10 used)
3. Foot board
4. Screw (2 used)
5. Washer head screw (10 used)
6. Foot board cover
7. Flange nut (4 used)
8. Flat washer (2 used)
9. RH dash bracket
10. LH dash bracket
11. Dash angle bracket
12. Dash bracket
13. Washer head screw (8 used)
14. Washer head screw (4 used)
15. Side dash bracket (2 used)
16. Flange nut (2 used)
Figure 44
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
4
5
13
2
40 to 45 in--lb
(4.6 to 5.0 N--m)
40 to 45 in--lb
(4.6 to 5.0 N--m)
40 to 45 in--lb
(4.6 to 5.0 N--m)
90 to 100 in--lb
(10.2 to 11.3 N--m)
18 to 22 in--lb
(2.1 to 2.4 N--m)
13
15
16
5
18 to 22 in--lb
(2.1 to 2.4 N--m)
