Workman GTX GasolinePage 5 − 10Electrical System
Headlight Switch
The headlight switch is located on the dash (Fig. 9). This
rocker switch allows the headlights to be turned ON and
OFF.
Testing
1. Park vehicle on a level surface, shut engine off and
engage the parking brake. Remove key from the key
switch.
2. Raise hood to allow access to wire harness connec-
tions for switches mounted in dash.
3. Disconnect wire harness connector from the head-
light switch.
4. With the use of a multimeter (ohms setting), the
switch functions may be tested to determine whether
continuity exists between the various terminals for each
headlight switch position. The headlight switch termi-
nals are marked as shown in Figure 9. The circuitry of
this switch is shown in the chart below. Verify continuity
between switch terminals.
SWITCH
POSITION
NORMAL
CIRCUITS
OTHER
CIRCUITS
ON 2 + 3 5 + 6
OFF 1 + 2 4 + 5
5. Replace headlight switch if testing determines that
the switch is faulty.
6. If headlight switch tests correctly and circuit problem
still exists, check wire harness (see electrical schematic
and wire harness drawing in Chapter 7 − Electrical
Drawings).
7. After headlight switch testing is complete, connect
wire harness connector to the headlight switch. Lower
and secure front hood.

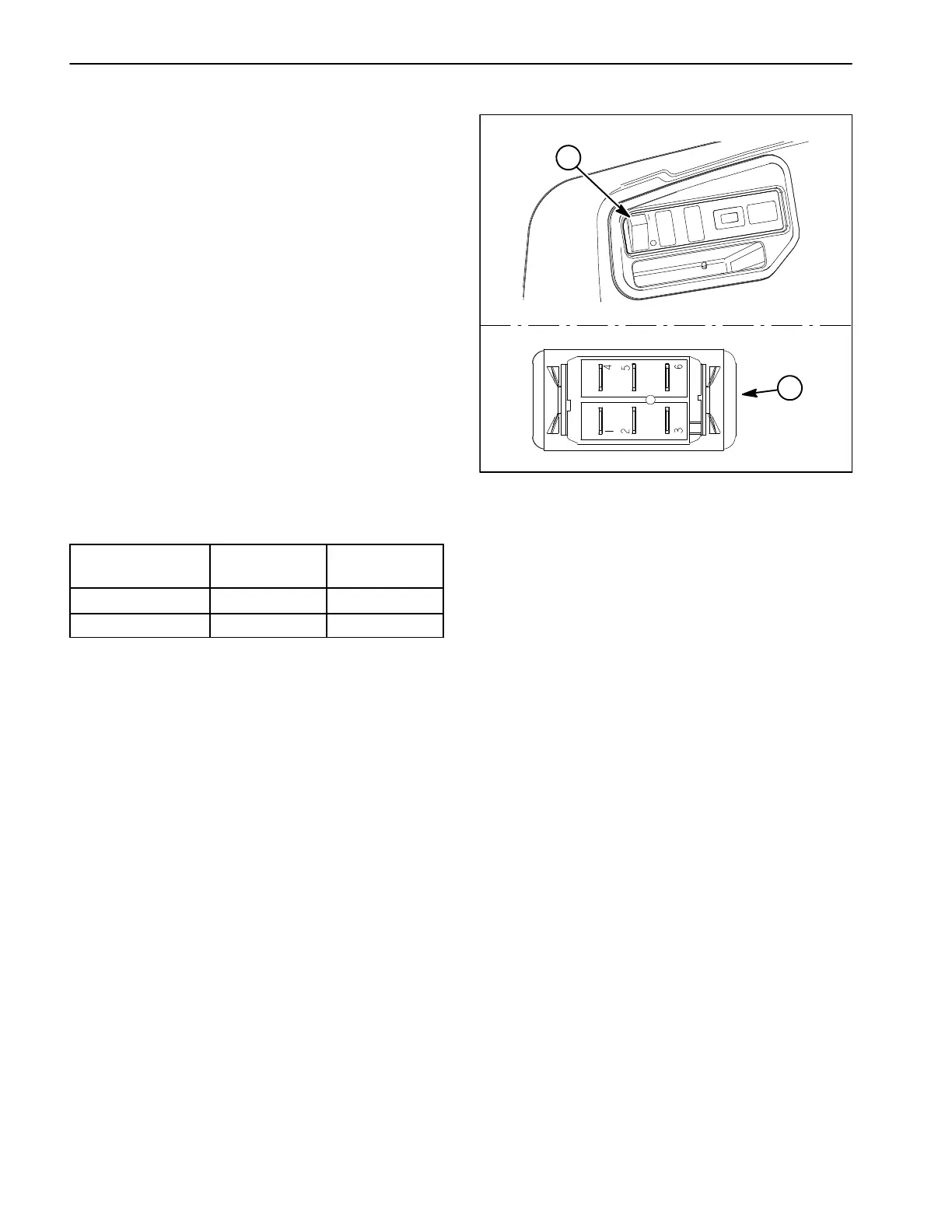

1. Headlight switch 2. Back of switch
Figure 9
2
1
