Workman GTX GasolinePage 5 − 4Electrical System
Special Tools
Order special tools from your Toro Distributor. Some
tools may also be available from a local supplier.
Multimeter
The meter can test electrical components and circuits
for current, resistance or voltage.
NOTE: Toro recommends the use of a DIGITAL Volt−
Ohm−Amp multimeter when testing electrical circuits.
The high impedance (internal resistance) of a digital me-
ter in the voltage mode will make sure that excess cur-
rent is not allowed through the meter. This excess
current can cause damage to circuits not designed to
carry it.

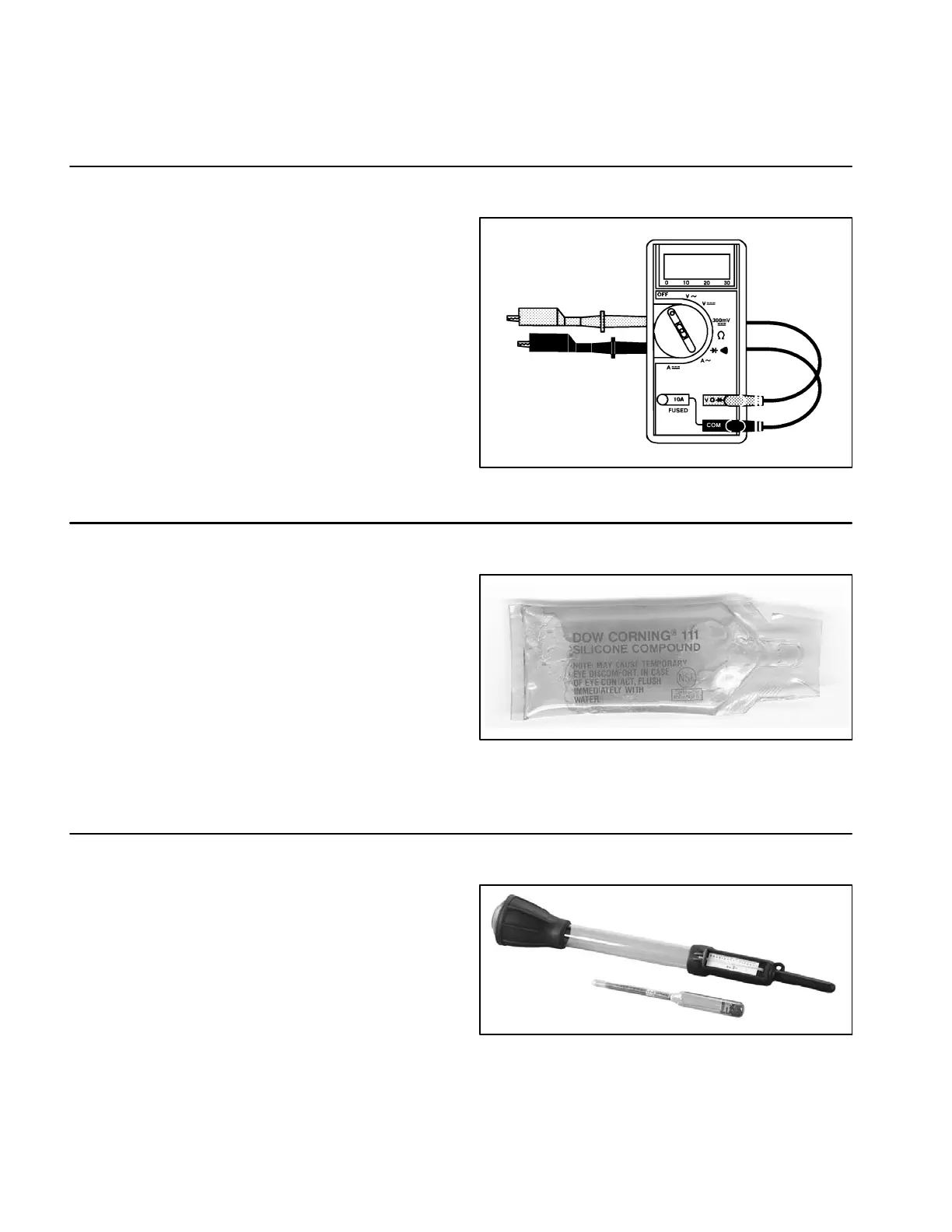

Figure 2
Dielectric Gel
Dielectric gel should be used to prevent corrosion of un−
sealed connection terminals. To ensure complete coat-
ing of terminals, liberally apply gel to both component
and wire harness connector, plug connector to compo-
nent, unplug connector, reapply gel to both surfaces and
reconnect harness connector to component. Connec-
tors should be thoroughly packed with gel for effective
results.
Do not use dielectric gel on sealed connection terminals
as the gel can unseat connector seals during assembly.
Toro Part Number: 107−0342
Figure 3
Battery Hydrometer
Use the battery hydrometer when measuring specific
gravity of battery electrolyte if the battery caps can be re-
moved. Obtain this tool locally.
Figure 4
