2. PRINTER SETUP ENGLISH VERSION EO1-33097
2.7 Loading the Media
E2-12
NOTES:
1. When printing labels without
removing them from the backing
paper, it is not necessary to pass
the media through the Strip Block.
2. When the media is correctly set,
the backing paper should be
pinched between the Platen and
the Strip Feed Roller as shown
below.
Strip Feed Roller

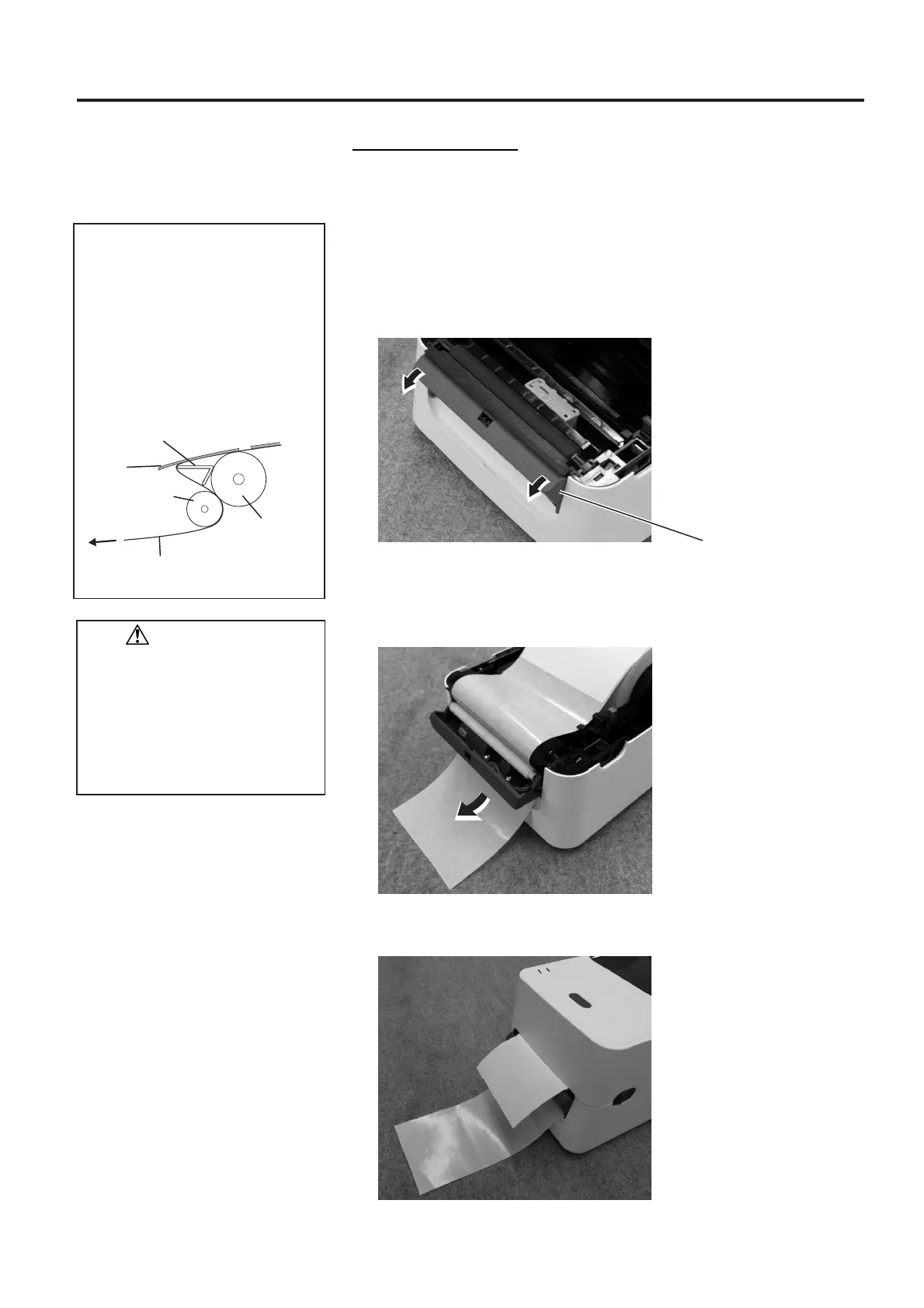

2.7 Loading the Media
(Cont.)
Strip mode (Option):
When printing in strip mode, labels are automatically removed from the
backing paper as each label is printed.
How to set the media
When issuing labels in the strip mode, set the label in the following
procedure:
1. Load the media as described on the previous pages.
2. Open the Peel-off Unit by pulling it out.
3. Remove enough labels from the leading edge of the media to leave 20
cm of backing paper free, and insert the top edge of the backing paper
into the media slot in the Peel-off Unit as shown below.
4. Close the Peel-off Unit and Top Cover.
Strip Plate
Label
Backing Paper
Platen
CAUTION!
When opening the Peel-off Unit
for loading the media, be
careful not to drop metal or
other foreign objects, such as a
paper clip into the module, as
this may cause a malfunction of
the printer.
Peel-off Unit
To Next Page
