A1.3 Media
EA1-5

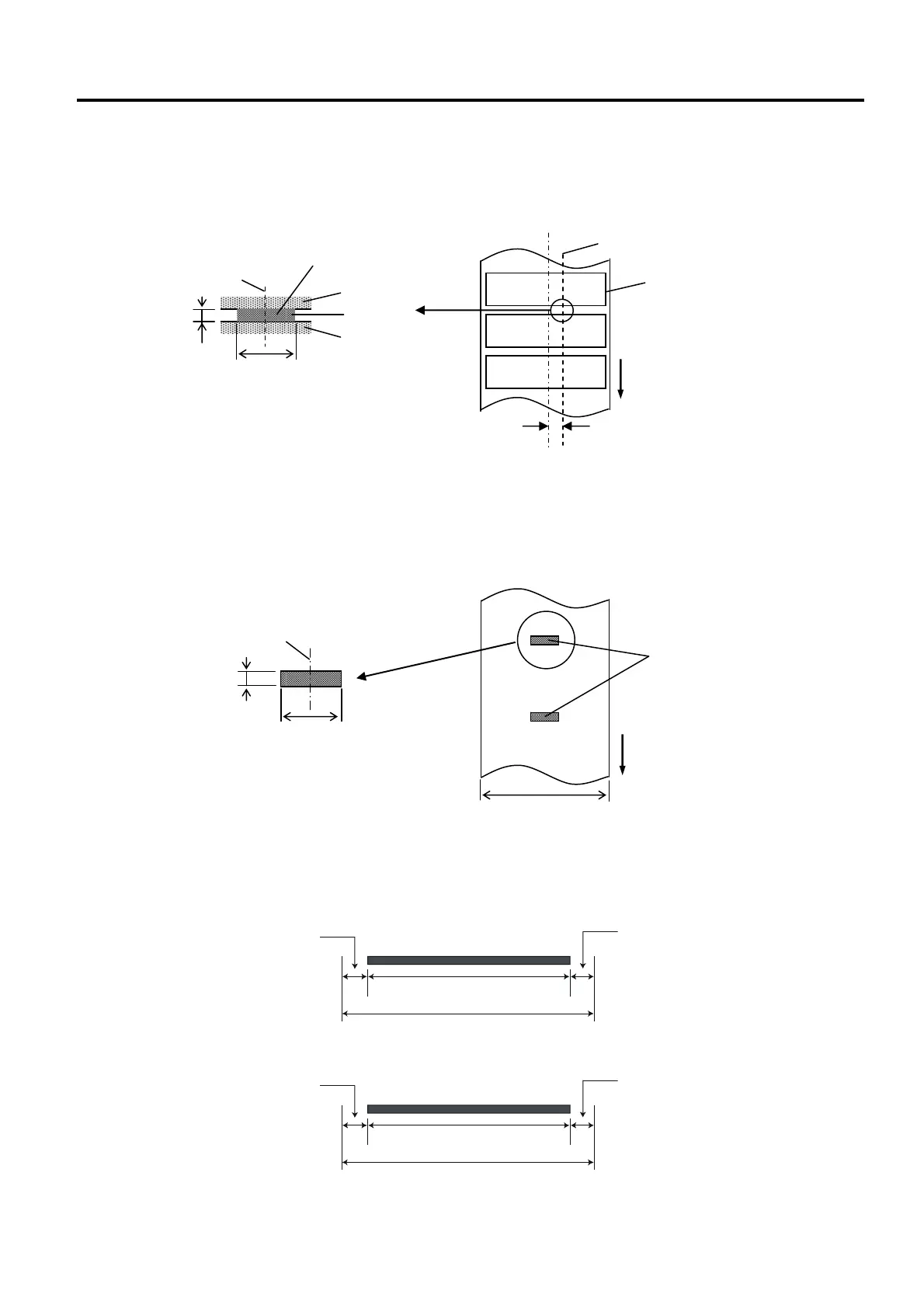

A1.3.2 Detection Area of the Feed Gap (Transmissive) Sensor
The Transmissive Sensor is fixed and positioned at 6.35 mm right of the centre of the media path.
The Transmissive Sensor detects a gap between labels, as illustrated below.
A1.3.3 Detection Area of the Black Mark (Reflective) Sensor
The Reflective Sensor is movable within the full range of the media width.
The reflection factor of the Black Mark must be 10% or lower with a waveform length of 950 nm.
The Reflective Sensor should be aligned with the centre of the Black Mark.
A1.3.4 Effective Print Area
The figure below illustrates the relation between the head effective print width and media width.
(for GS Type)
(for TS Type)
Min. 2 mm
(Min. 6 mm:
cut mode)
Min. 8 mm
Sensor position
A
rea to be detected.
Label
Gap
Label
Sensor position
Media feed direction
Print side
6.35mm
Min. 2 mm
Min. 8 mm
Sensor should be positioned at the
centre of the black mark.
Media feed direction
Detecting the black marks on the
back.
Sensor is movable within the full range.
5.0 mm
118.0 mm (Max. media width)
108.0 mm
(Head Effective Print Range)
Out of print range
Out of print range
5.0 mm
Print head element
6.15 mm
118.0 mm (Max. media width)
105.7 mm
(Head Effective Print Range)
Out of print range
Out of print range
6.15 mm
Print head element
