B‐FV700‐BLTH‐QM‐R
‐45‐
6.6.2  Ethernet

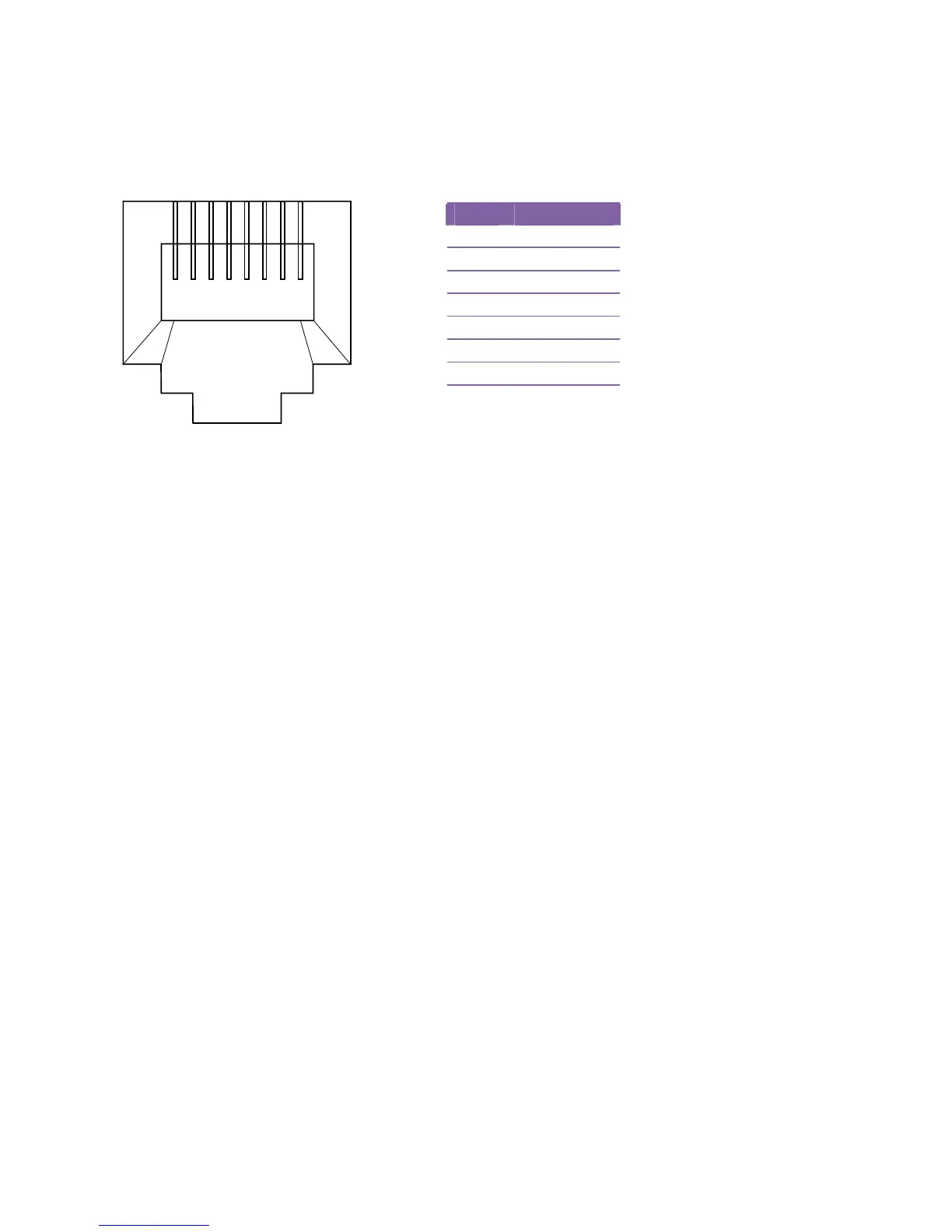

TheEthernetusesRJ‐45cable,whichis8P8C(8‐Position8‐Contact).Thefigurebelowshowsitspinout.
1
2
3
4
56
7
8

Pin Signal
1 Transmit+
2 Transmit‐
3 Receive+
4 Reserved
5 Reserved
6 Receive‐
7 Reserved
8 Reserved

