INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
4. Serial Interface Board: B-SA704-RS-QM-R
4- 3

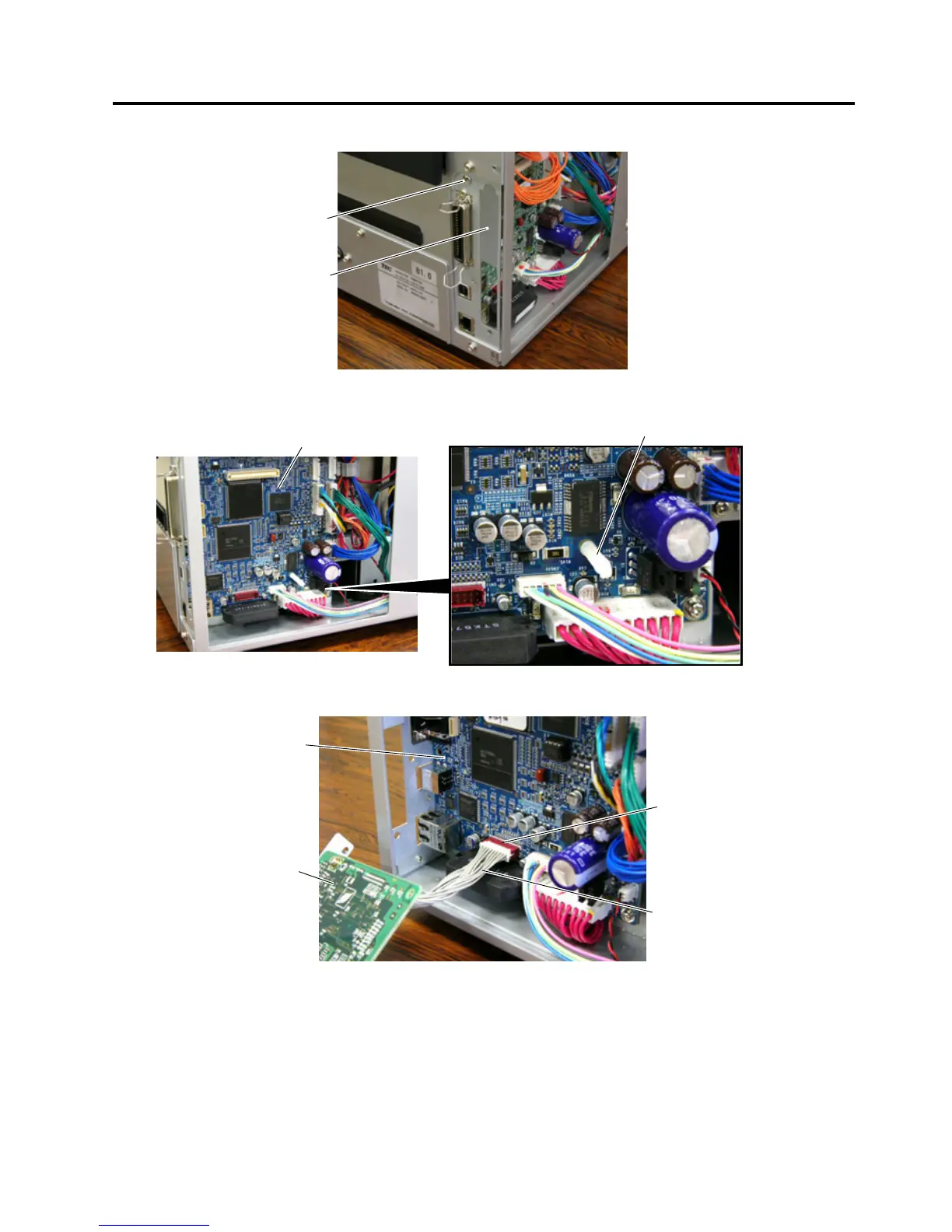

4. Attach the enclosed PCB Support Plate to the printer back with one of the enclosed SMW-3x6 screws.
5. Fit the Locking Support into the MAIN PC Board.
6. Connect the Serial Interface Cable of the SIO PC Board to CN12 on the MAIN PC Board.
PCB Support Plate
SMW-3x6
Locking Support
MAIN PC Board
SIO PC Board
Serial Interface Cable
CN12
MAIN PC Board
