INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
7. Expansion I/O Board: B-SA704-IO-QM-R
7- 1
7. Expansion I/O Board: B-SA704-IO-QM-R
B-SA704-IO-QM-R is an optional expansion I/O board for the B-SA4TM/SA4TP Series. The pictures used
in this section are those of the B-SA4TP, and the installation procedures are common with the B-SA4TM
unless otherwise noted.

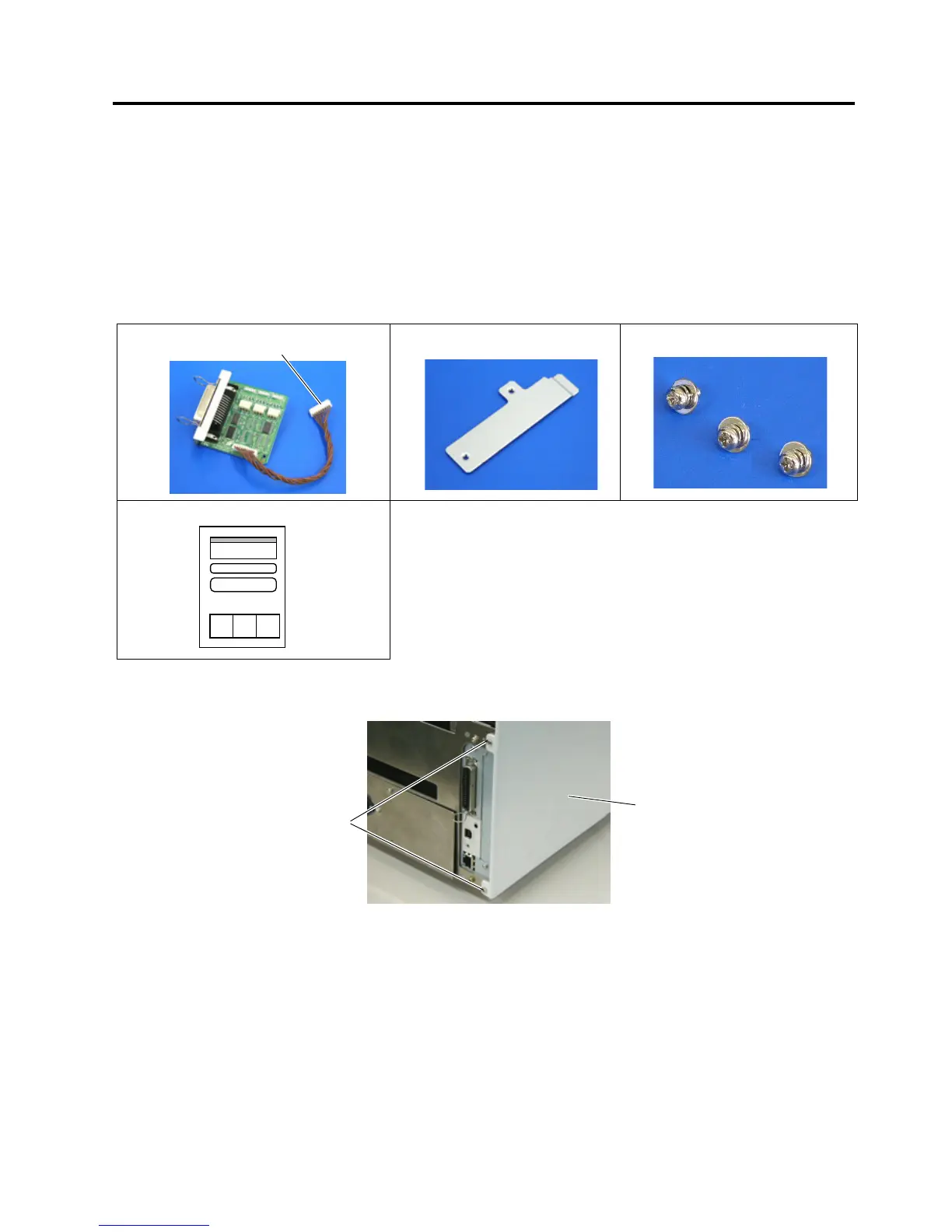

Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Expansion I/O Board (1 pc.) See Note.
Blind Plate (1 pc.)
SMW-3x6 Screw (3 pcs.)
Installation Manual (1 copy)
Note: Make sure that the Interface Cable is connected to CN1 on the
Expansion PC Board.
1. Remove the two SMW-3x6 screws from the back of the printer.
Interface Cable
SMW-3x6 Scre
w
Side Panel
