INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
7. Expansion I/O Board: B-SA704-IO-QM-R
7- 2

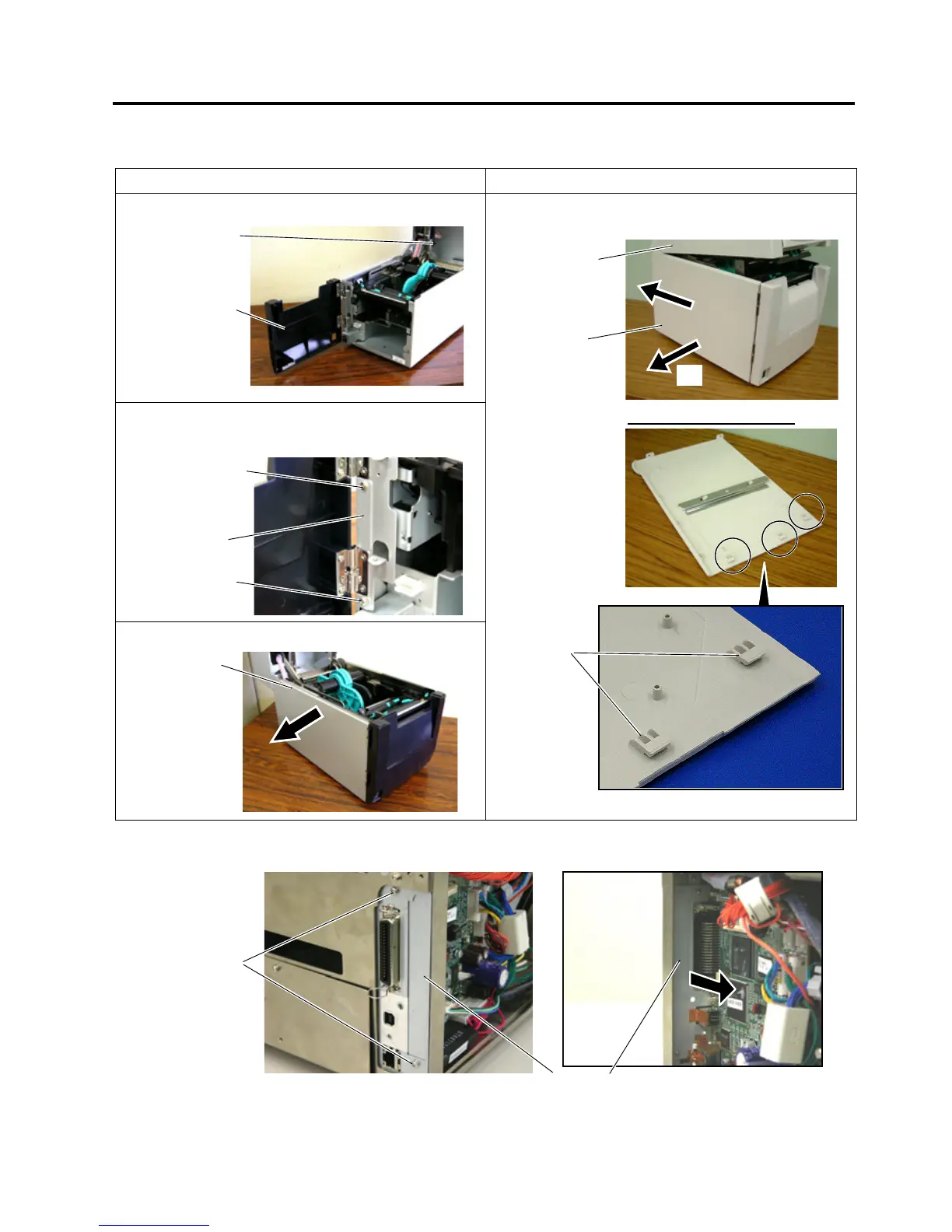

2. Remove the Side Panel in the following order. Please note the procedure is different between the B-
SA4TM series and the B-SA4TP series.
B-SA4TM B-SA4TP
(1).Open the Top Cover and Front Cover.
(2). Remove the two SMW-3x6 screws which secure
the Side Panel.
(3). Close the Front Cover and remove the Side Panel.
Open the Top Cover. Slide the Side Panel backward,
and then remove it in the direction of arrow A.
3. Remove the two SMW-3x6 screws to detach the Blind Plate.
NOTE: Keep the Blind Plate for future use.
Front Cove
r
Top Cove
r
SMW-36 Scre
w
Side Panel
SMW-36 Scre
w
Side Panel
Top Cove
r
Side Panel
Reverse side of Side Panel
A
Hoo
k
SMW-3x6 Scre
w
Blind Plate
