Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
6. Real Time Clock: B-SA704-RTC-QM-R
6- 1
6. Real Time Clock: B-SA704-RTC-QM-R
B-SA704-RTC-QM-R is an optional Real Time Clock for the B-SA4TM/SA4TP Series. The pictures used in
this section are those of the B-SA4TP, and the installation procedures are common with the B-SA4TM
unless otherwise noted.
NOTE: When the B-SA704-IO-QM-R Expansion I/O Board or B-SA704-RS-QM-R Serial Interface Board
has been already installed in the printer, the Interface Cable of the Real Time Clock cannot be
connected to the MAIN PC Board. Please remove this optional PC board temporality, prior to
installing the Real Time Clock.

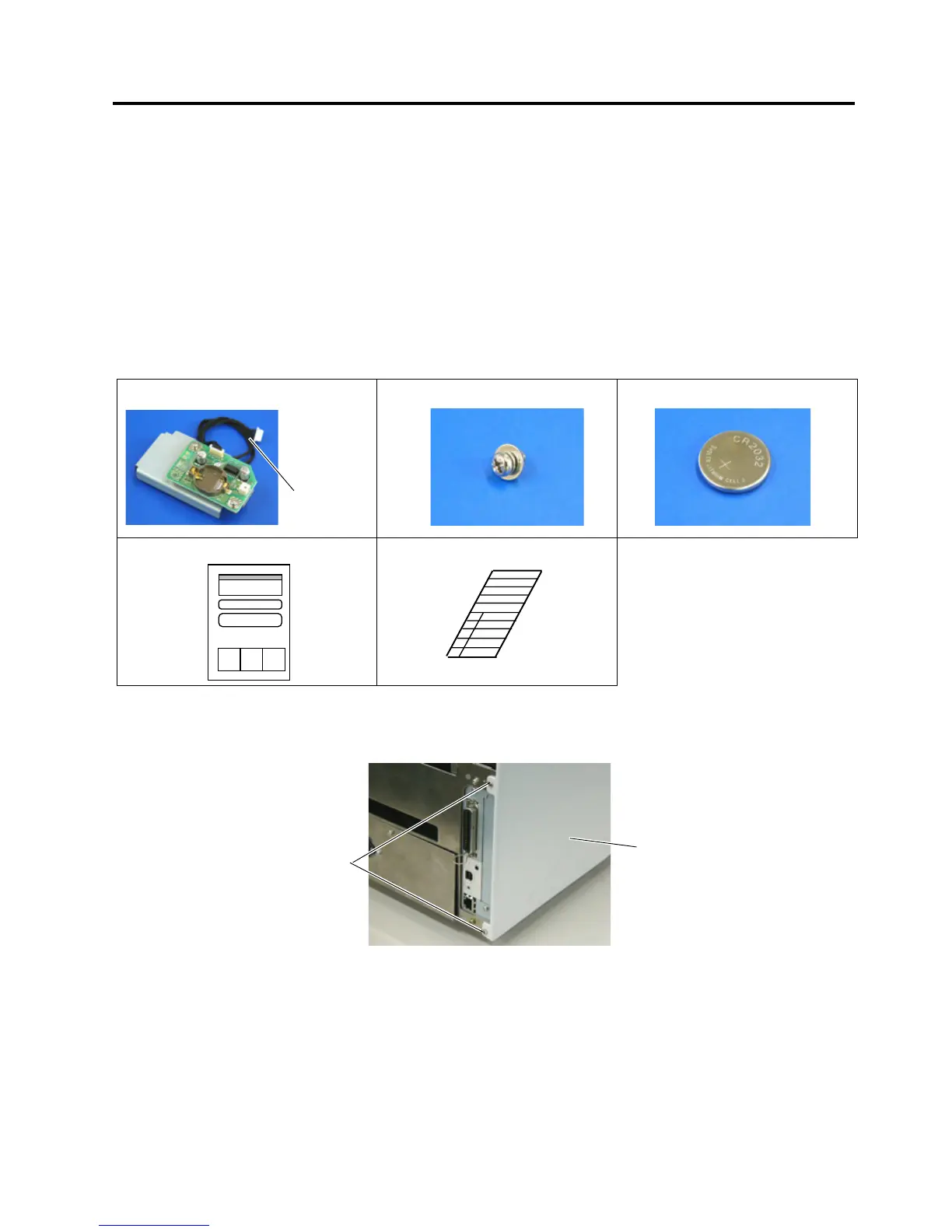

• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Real Time Clock (1 pc.) See Note.
SMW-4x8 Screw (1 pc.)
Lithium Battery CR2032 (1 pc.)
Installation Manual (1 copy)
Battery Sticker (1 pc.)
Note: Make sure that the
Interface Cable is
connected to CN1 on the
Real Time Clock.
• Installation Procedure
1. Remove the two SMW-3x6 screws from the back of the printer.
Interface
Cable
SMW-3x6 Scre
w
Side Panel

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
