Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

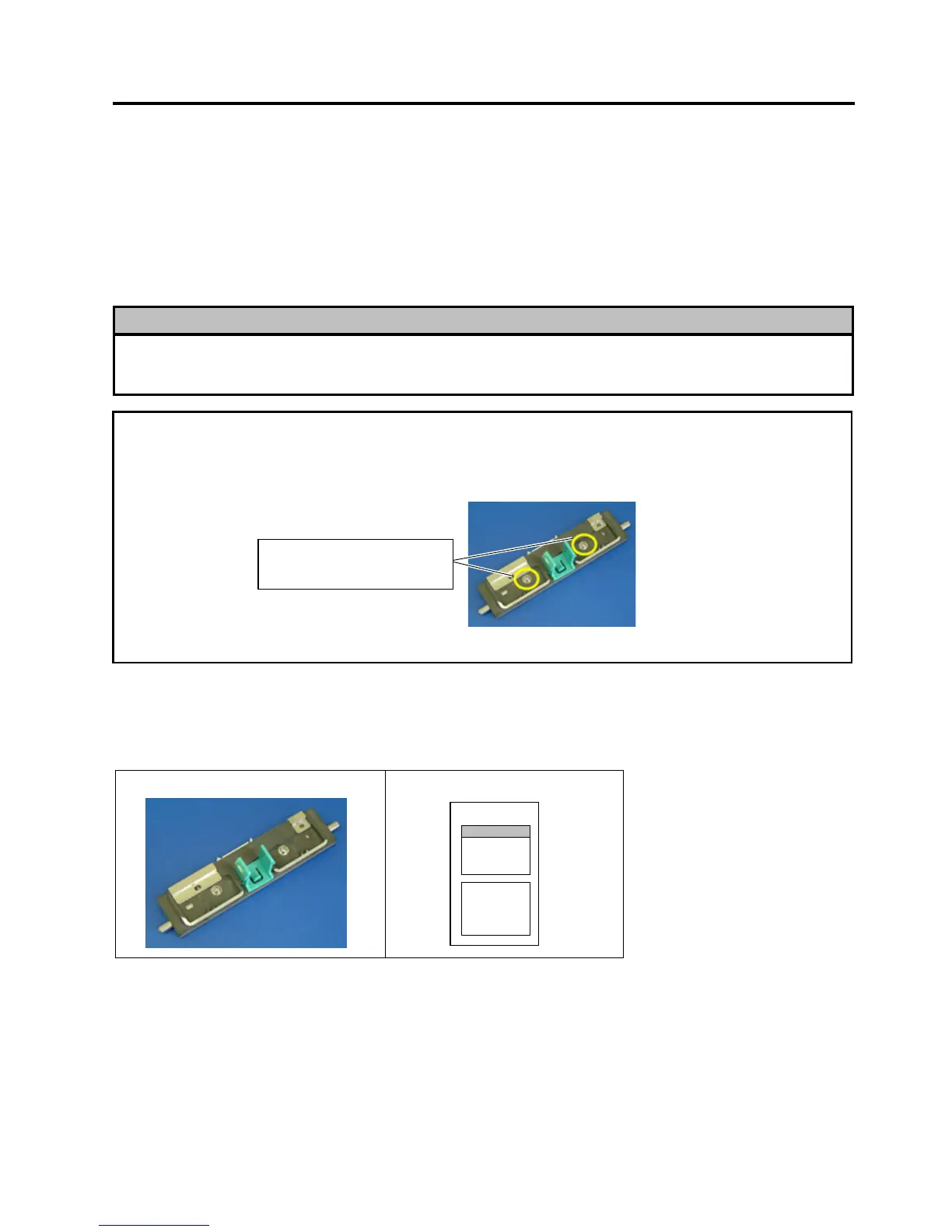

5. 300 dpi Print Head Kit: B-SA704-TPH3-QM-R
5- 1
5. 300 dpi Print Head Kit: B-SA704-TPH3-QM-R
B-SA704-TPH3-QM-R is an optional 300 dpi print head kit for the B-SA4TM/SA4TP-GS12 Series (203dpi
printer).
You will obtain the same print quality as the TS12 model (300 dpi) only by replacing the current print head
with this optional kit.
The pictures used in this section are those of the B-SA4TM, however, the installation procedure is common
with the B-SA4TP.
• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
300 dpi print head (1 pc.)
Installation Manual (1 copy)
Do not touch the print head or its neighboring parts immediately after printing, or you may burn
yourself.
WARNING
!
CAUTION!
1. NEVER loosen or remove the following two screws of the Print Head as they have been fine
adjusted before shipment. If they are loosened or removed, print quality may become
deteriorated.
2. Do not touch the Print Head Element when handling the Print Head.
NEVER loosen or remove
these screws.

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
