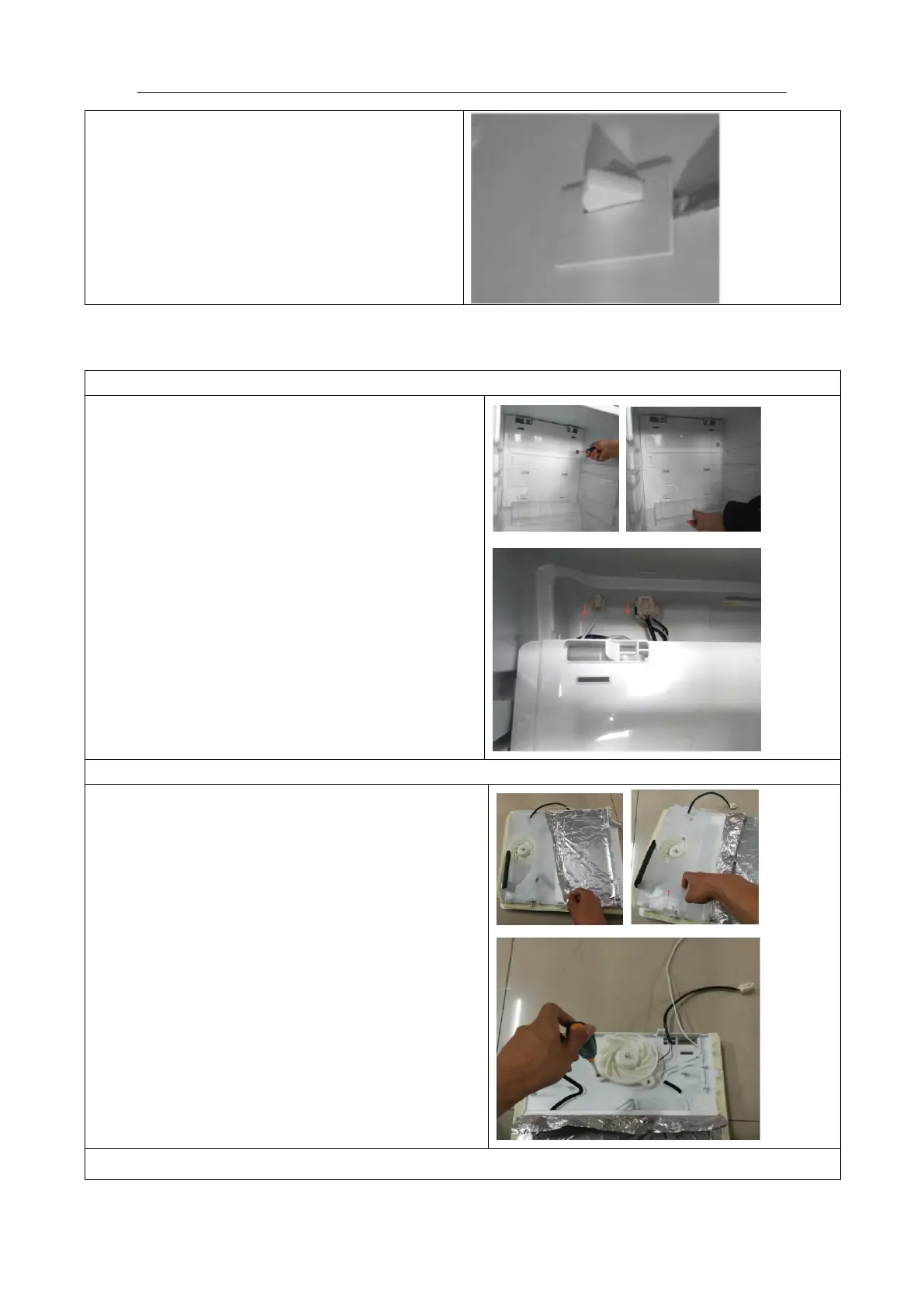

There is a light switch on the side wall of the
refrigerating chamber.
1） Loosen the hook with small normal screwdriver
and pull out the switch until the wire connector
reveals.
8.4Air duct and fan motor
Air duct components in freezing chamber
All accessories in the freezing chamber should be
dismantled before removing the air duct components.
1）Remove 2 screws on the cover plate of the freezing
air duct using a cross screwdriver;
2）Pull out it from the bottom of freezer chamber air duct.
3）Pull out the connector terminal of the fan motor;
1） Make air duct aluminum foil be away from the back
cover of air duct
2） Remove the back cover of bottom air duct assembly
3） Loosed the 3 screws fixed the fan motor
4） Replace the fan in reverse steps;
