operation, fan motor or electric control panel can be replaced.
10.5Refrigerator fan motor circuit(None)
10.6Condensing fan motor circuit(None)

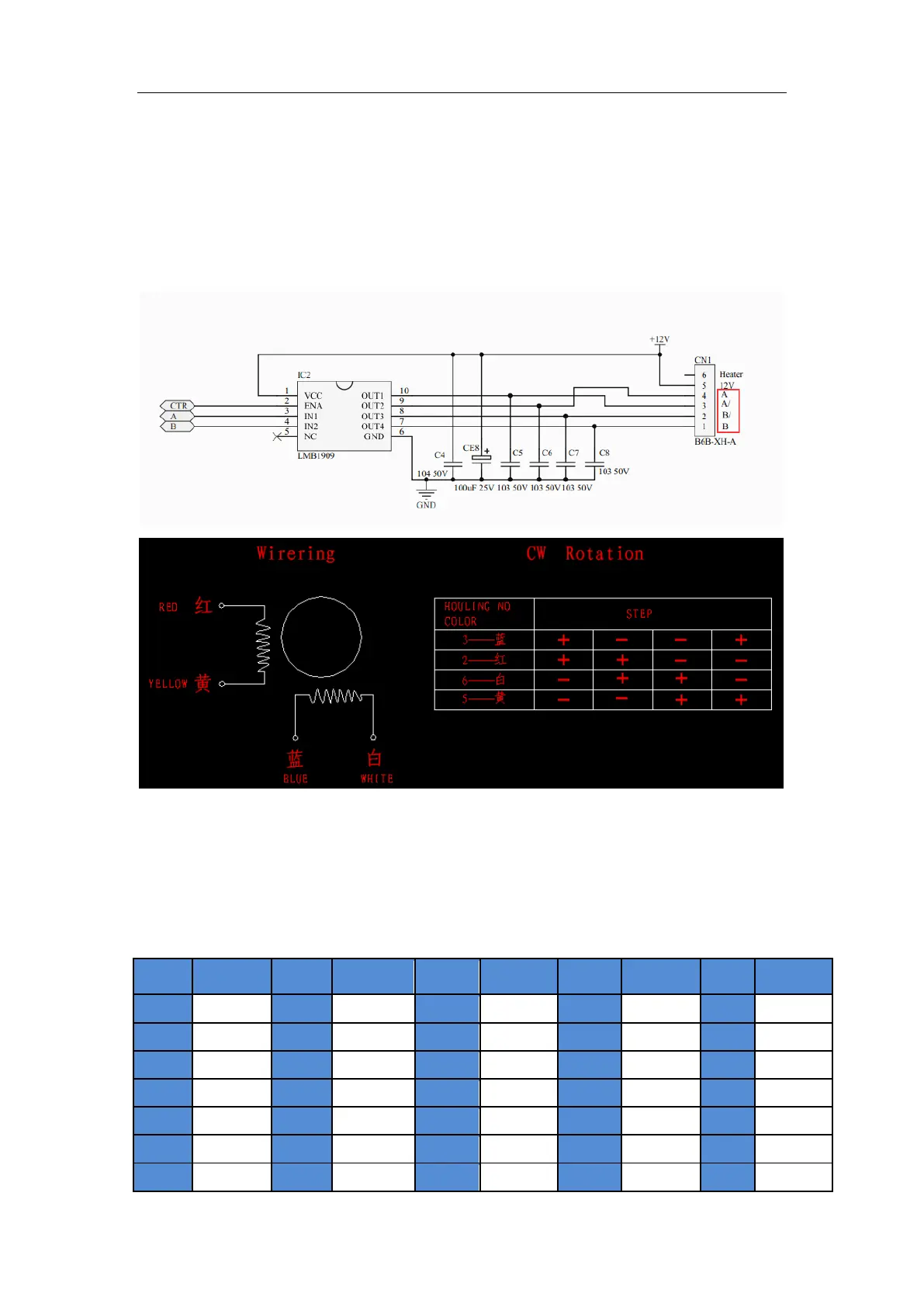

10.7Damper motor circuit
The air damper is driven by stepping motor of 2 phase Take 4.it has 4
wires(white,blue,yellow ,red),driven voltage is 12V, the current is very low, max is 100mA, Take 4
is one cycle, if positive rotation, it controls according to above photo(step 1-4), if reverse rotation,
it controls according to step 4-1
10.8Resistance value of the sensor (R/T)
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
-30
33.81
-15
14.31
0
6.495
15
3.141
30
1.617
-29
31.85
-14
13.55
1
6.175
16
2.999
31
1.55
-28
30.01
-13
12.83
2
5.873
17
2.865
32
1.486
-27
28.29
-12
12.16
3
5.587
18
2.737
33
1.426
-26
26.68
-11
11.52
4
5.315
19
2.616
34
1.368
-25
25.17
-10
10.92
5
5.06
20
2.501
35
1.312
-24
23.76
-9
10.35
6
4.818
21
2.391
36
1.259
