87
3
7

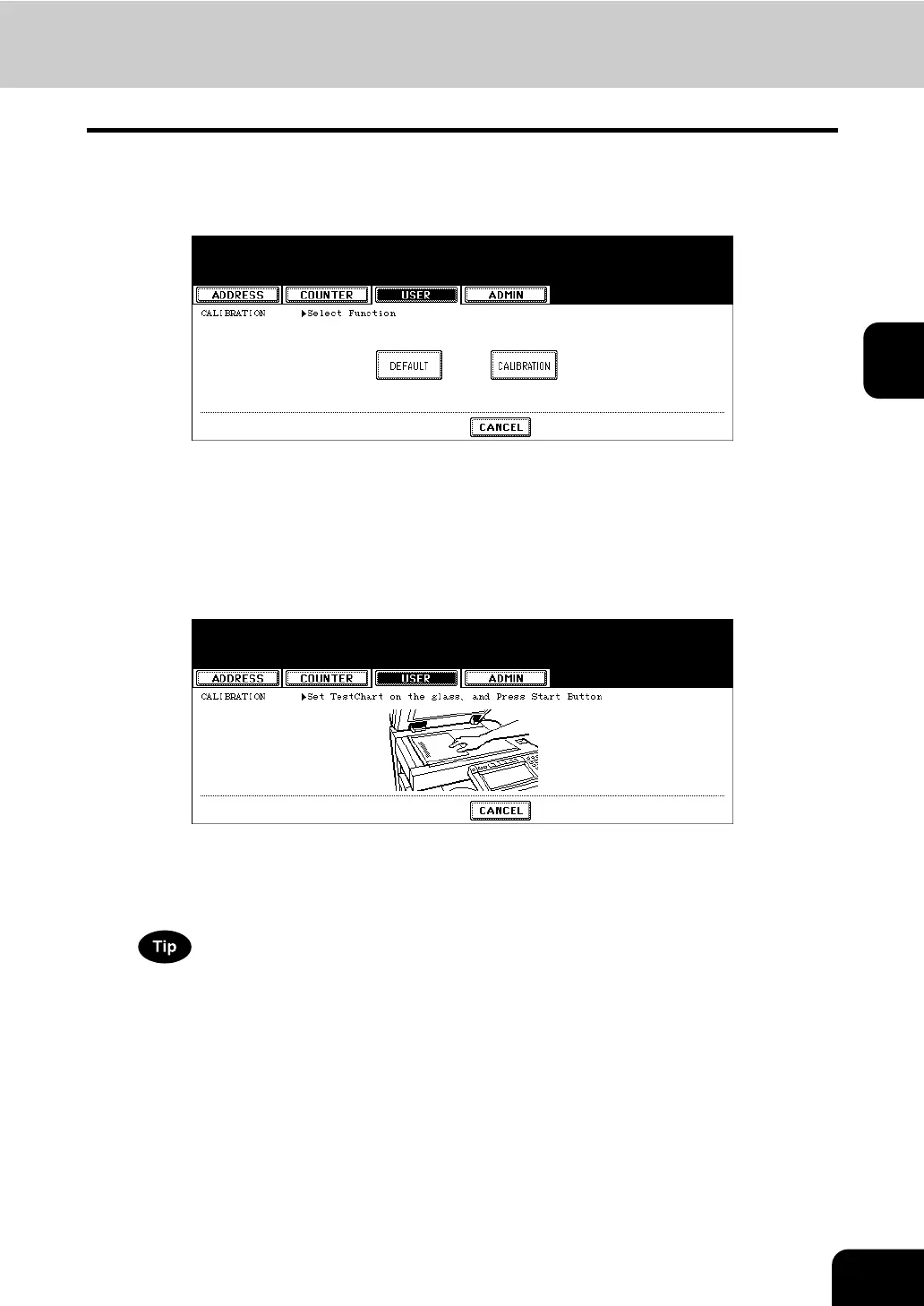

Press the [DEFAULT] button to set the default calibration setting for
selected job type, or [CALIBRATION] button to adjust the calibration
setting for selected job type.
• When you press the [DEFAULT] button, the system maintains the default calibration setting for selected job
type and returns to the CALIBRATION menu.
• When you press the [CALIBRATION] button, the chart is printed out and calibration guide illustration is dis-
played on the touch panel.
8
Place the printed chart face down on the glass with its bottom toward
you and its top left aligned against the original scale on the left side,
in order that the black line be placed at the left side.
9
Press the [START] button.
• After scanning the printed chart, following message is displayed:
[Apply Calibration Setting?]
If the chart is not properly placed, the message “Set chart correctly” is displayed on the touch panel. In this case,
go back to step 8 and place the chart again.
To Next Page
