4-16 Service Manual
Left cover handle holder removal
1.
Open the left side cover.
2. Remove the outer system board shield. See “Outer shield removal” on page 4-67.

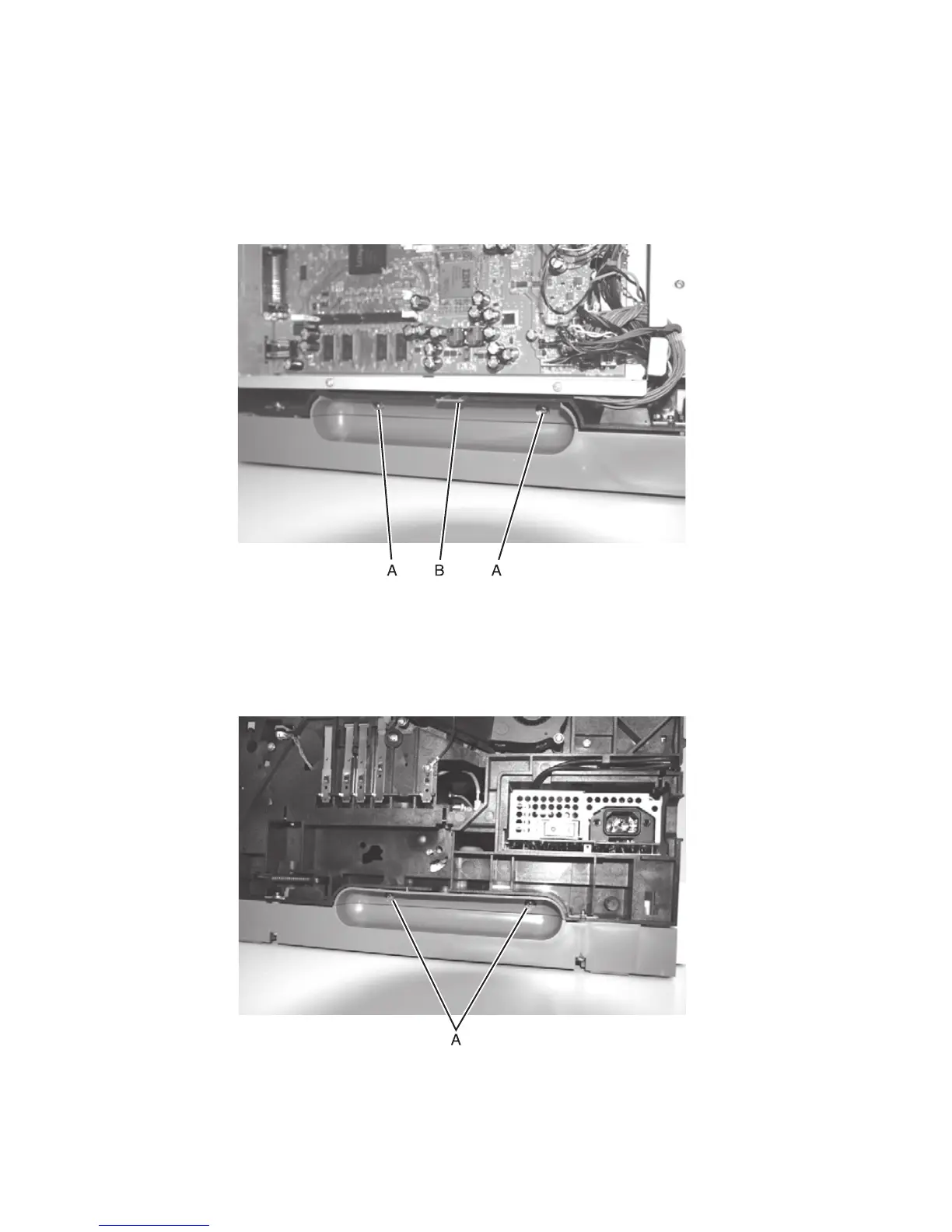

3. Remove the two screws (A) holding the top of the left handle holder in place.
4. Use the tab (B) to lift out the left handle holder.
Right cover handle holder removal
1.
Remove the right side cover. See “Right cover removal” on page 4-8.
2. Remove the two screws (A) holding the top of the right handle holder in place.
3. Lift out the right handle holder.
