Repair information 4-79
Upper paper deflector assembly removal
1. Either lift the ESD cover out of the way or remove it. See “ESD cover removal” on page 4-25.
Note: The tabs holding the ESD cover are easily stressed or broken.

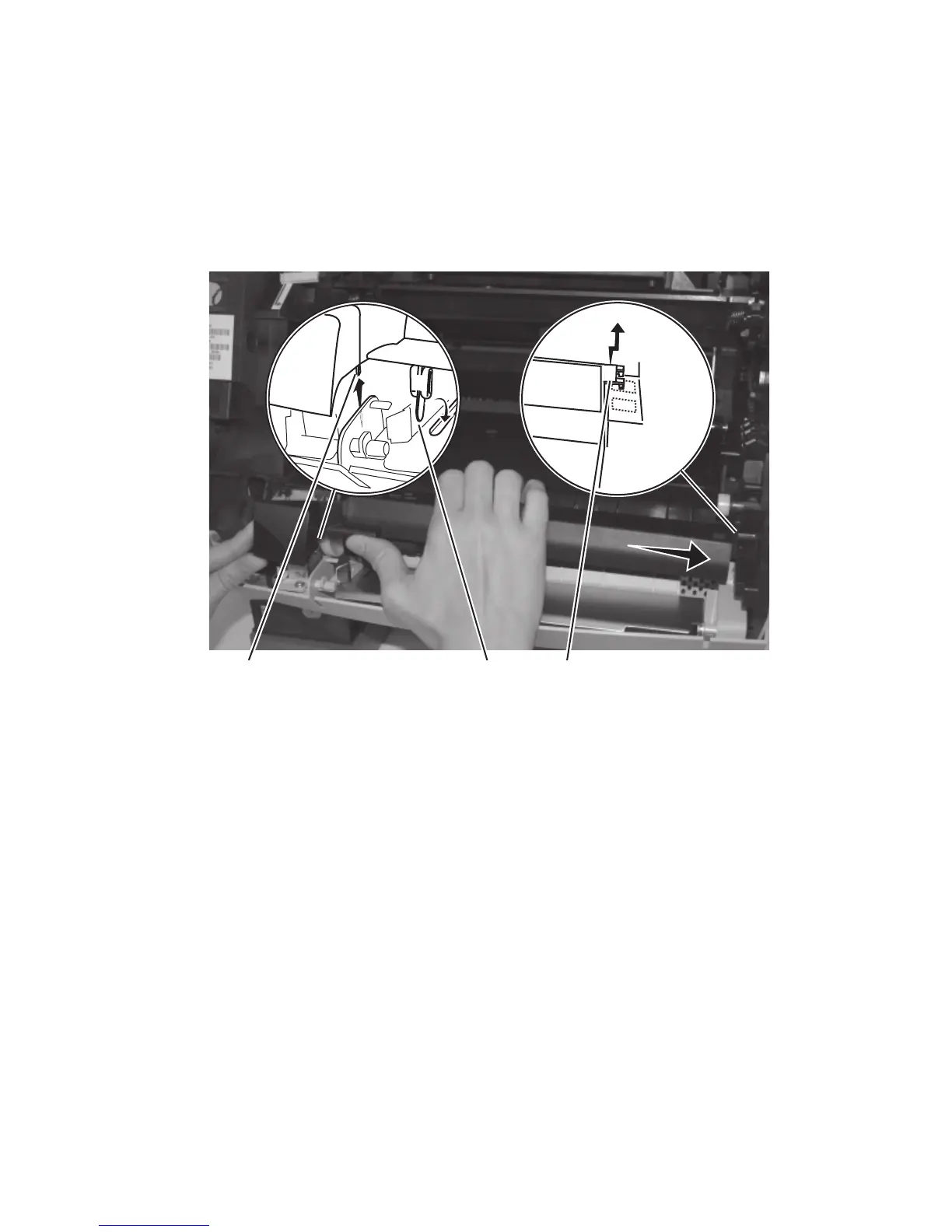

2. Lift the left side to release the small tab (A) on the left and the MPF flag (B) and slide the upper paper
deflector assembly to the right to unlatch the hooks (C) on the right.
Note: Be careful not to put too much stress on the small tab (A) on the right.
3. Lift to remove the upper paper deflector assembly.
Installation note: Make sure the MPF flag (B) is in place.
