Diagnostic aids 3-37

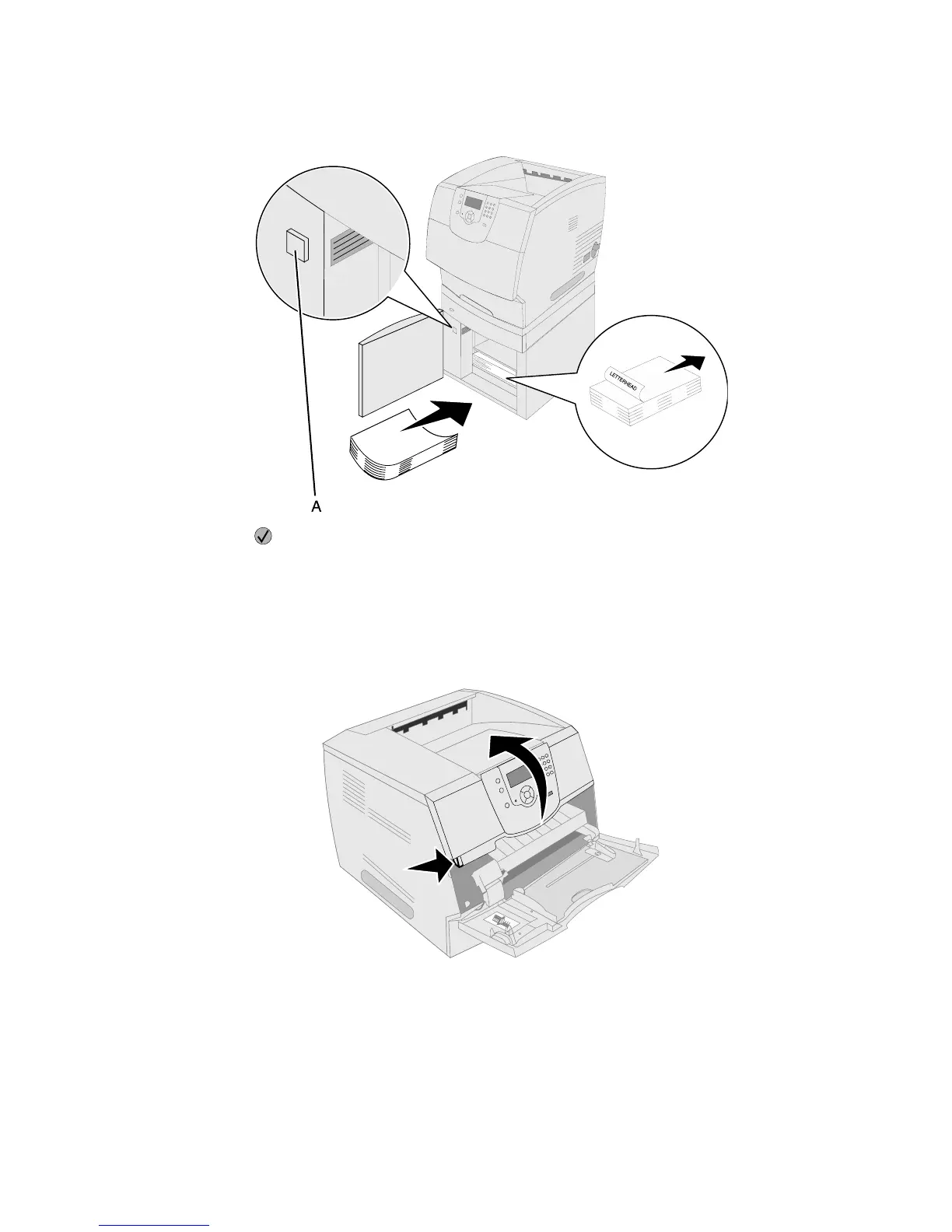

4. If you have an optional 2000-sheet feeder, open the front door, press the elevator button (A) to lower the

tray, remove the jam, and make sure the stack of print media is neat and aligned.

5. Press .

200 and 201 Paper Jam Remove Cartridge

Push the release latch, and lower the multipurpose feeder.

2. Push the release latch, and open the top front cover.

CAUTION: The inside of the printer is hot.

Default Chapter3
