4-60 Service Manual
MPF arm assembly removal
1. Open the left door.
2. Remove the MPF lower front cover. See “Multipurpose feeder/lower front cover assembly removal” on
page 4-15.
3. Remove the MPF lower paper deflector. See “MPF lower paper deflector” on page 4-61.
4. Remove the upper paper deflector. See “Upper paper deflector assembly removal” on page 4-79.
5. Remove the inner paper deflector. See “Inner paper deflector assembly removal” on page 4-47.
6. Remove the MPF solenoid assembly. See “MPF solenoid assembly removal” on page 4-62.

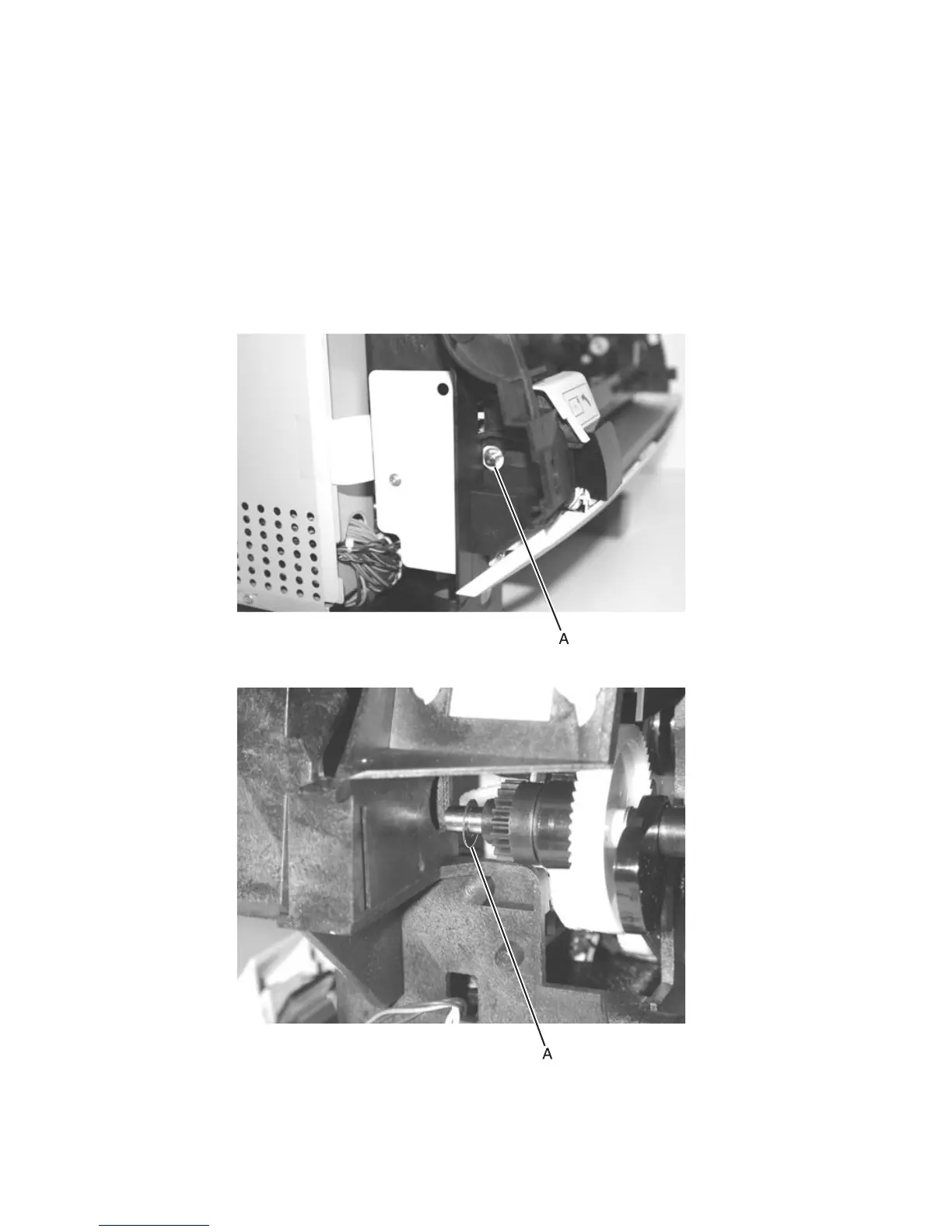

7. Remove the C-clip (A).
8. Remove the washer, and set it aside.
9. Remove the MPF arm assembly.
