P9 ASD Installation and Operation Manual 273

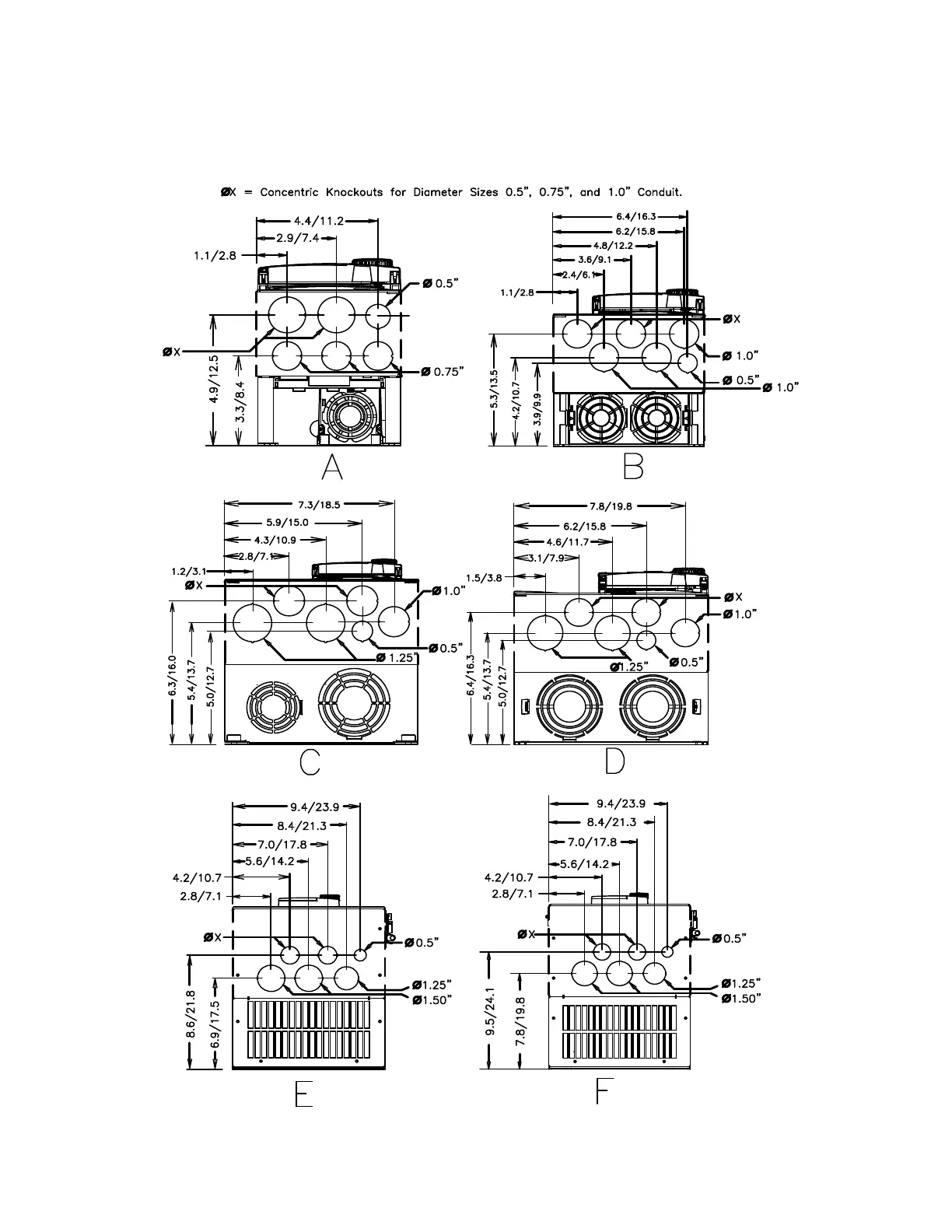

Conduit Plate Dimensions

Figure 41. See Tables 17 and 18 for the associated device. Dimensions are in in/cm.
