3.5. Command & Setpoint selection (Local/Remote)
CANopen communication command and setpoint (= Frequency) are activated on remote mode.

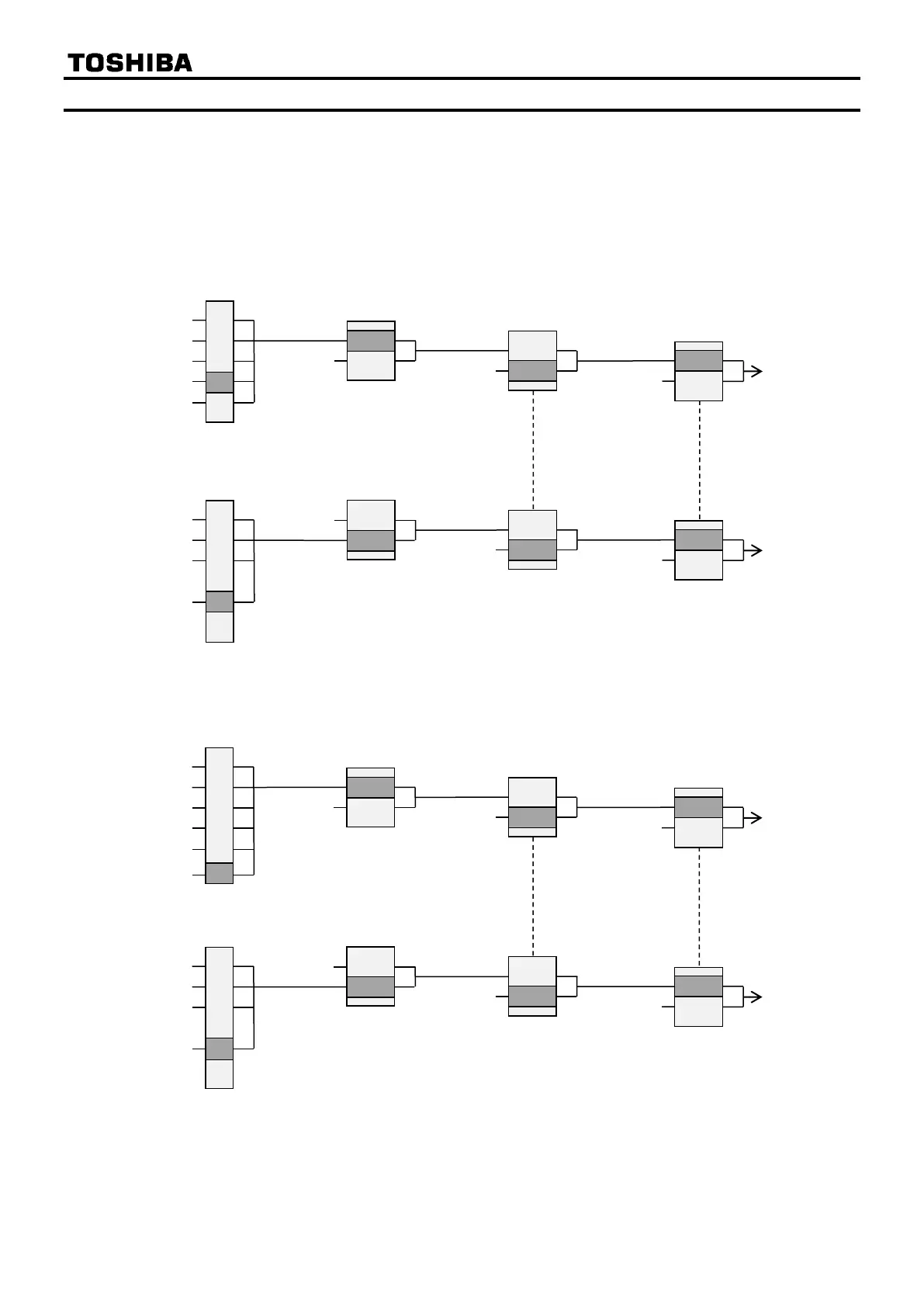

Drives have some switches to select the command and setpoint location. Following figure shows the
diagram. Refer to the drive instruction manual for the parameter in detail.
Example: VF-S15
Example: VF-AS3
Input Terminal Function
48(SCLC)
Forced local
from communication
cmod
Switch between Local and
Remote modes
by EASY key. (f750=2)
Prior com.
Operation
Panel
0
1
2
4
3
Terminal
Operation Panel
RS485
CANopen
Network option
ON
OFF
Loc
Rem
Command
fmod
Prior com.
Operation
Panel
0
2
:
6
Setting dial 1
Terminal VIA
terminal
Terminal VIB
terminal
:
ON
OFF
Loc
Rem
Frequency
CANopen
:
Input Terminal Function
108(CMTB)
Command mode
terminal block
Terminal
block
ON
OFF
f207
setting
Input Terminal Function
104(FCHG)
Frequency setting mode
forced switching
ON
OFF
1
Input Terminal Function
48(SCLC)
Forced local
from communication
cmod
Switch between Local and
Remote modes
by EASY key (f750=2)
or HAND/AUTO key.
Prior com.
Operation
Panel
0
1
2
3
5
Terminal
Operation Panel
Embedded Ethernet
RS485 (CN1)
RS485 (CN2)
ON
OFF
Loc
Rem
Command
fmod
Prior com.
Operation
Panel
0
2
:
-
Terminal RR
Terminal RX
:
ON
OFF
Loc
Rem
Frequency
Network option
( CANopen )
:
Input Terminal Function
108(CMTB)
Command mode
terminal block
Terminal
block
ON
OFF
f207
setting
Input Terminal Function
104(FCHG)
Frequency setting mode
forced switching
ON
OFF
1
4
Network option
( CANopen )
