Toshiba TOSVERT VF-S15 series Manual

E6581911
- 14 -

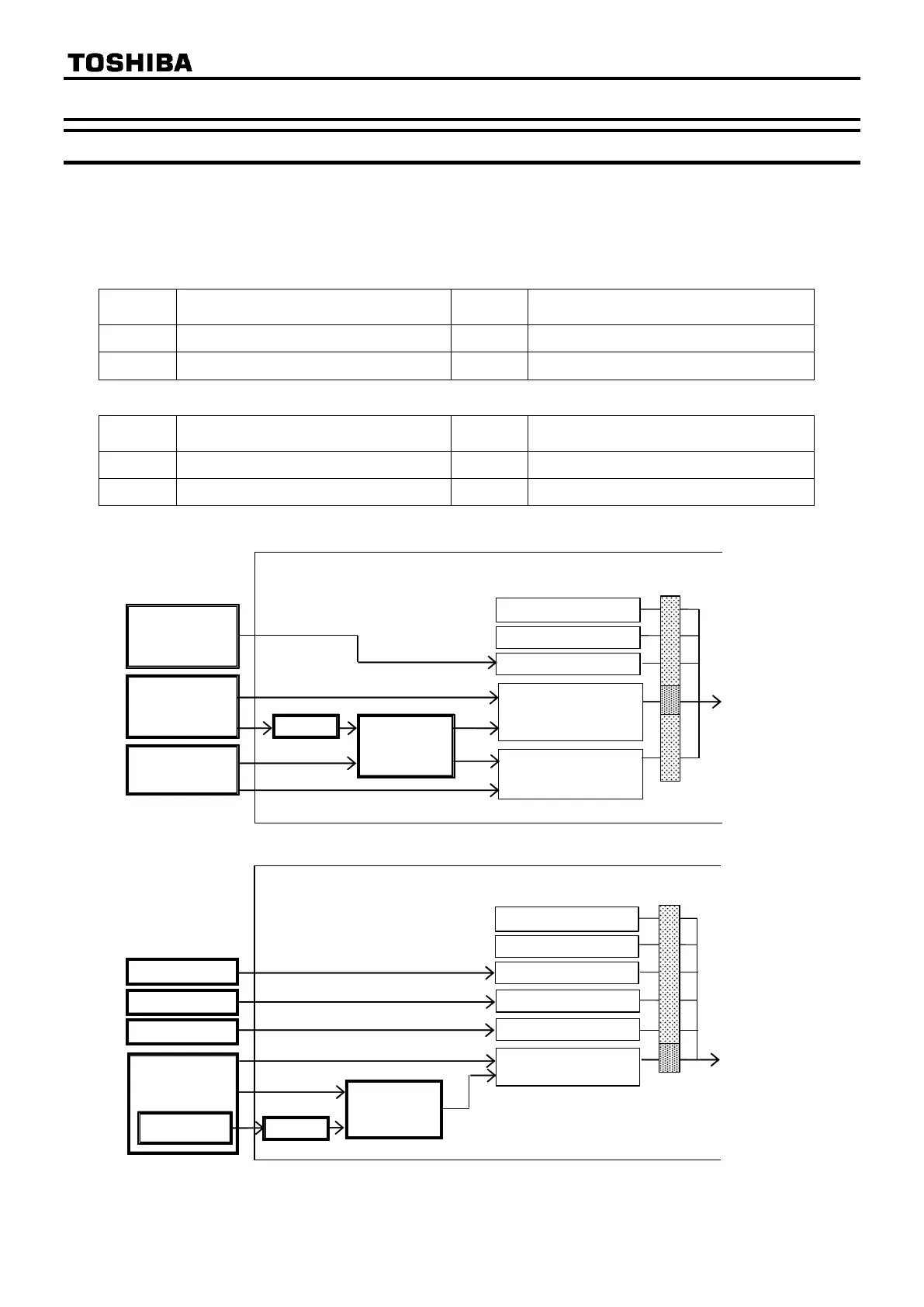

4. Parameters
4.1. Command and Freq. Reference setting
Set up the parameters as follows when command via CiA402 drive profile. From CANopen network, the
parameters can be commanded directory. The latest commanded parameters are activated when same run
command / frequency reference command.
Refer to the below table and the figurer and the capture “3.5 Command & Setpoint selection (Local/Remote)”.
[VF-S15]
P No.
Parameter function
Default
Value
Note
cmod
Command mode selection
1
3: CANopen communication
fmod
Frequency setting mode selection 1
0
6: CANopen communication
[VF-AS3]
P No.
Parameter function
Default
Value
Note
cmod
Run command select
0
5: Communication option (CANopen)
fmod
Frequency command select 1
1
23: Communication option (CANopen)
Example: VF-S15
cmod
Control terminal.
Operation panel.
RS485 com. (FA00)
0
1
2
3
4
CANopen
Network option
CiA 402
State machine
Network option (FA06)
CANopen (FA04)
6040
RS485
communication
Example: VF-AS3
cmod
Control terminal.
Operation panel.
Emb.Ethernet (FA37)
CANopen
CiA 402
State machine
Network option (FA06)
[ CANopen ]
6040
Emb.Ethernet
RS485 com. (FA00)
RS485 com.(CN1)
RS485 com.(CN2)
RS485 com. (FA04)
Network option
0
1
2
3
4
5
Figure 1 Command source

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
