INTERFACE MANUAL
The specifications of the extension input signal are as follows:
• Type of input:
Non-voltage contact input or transistor open collector input

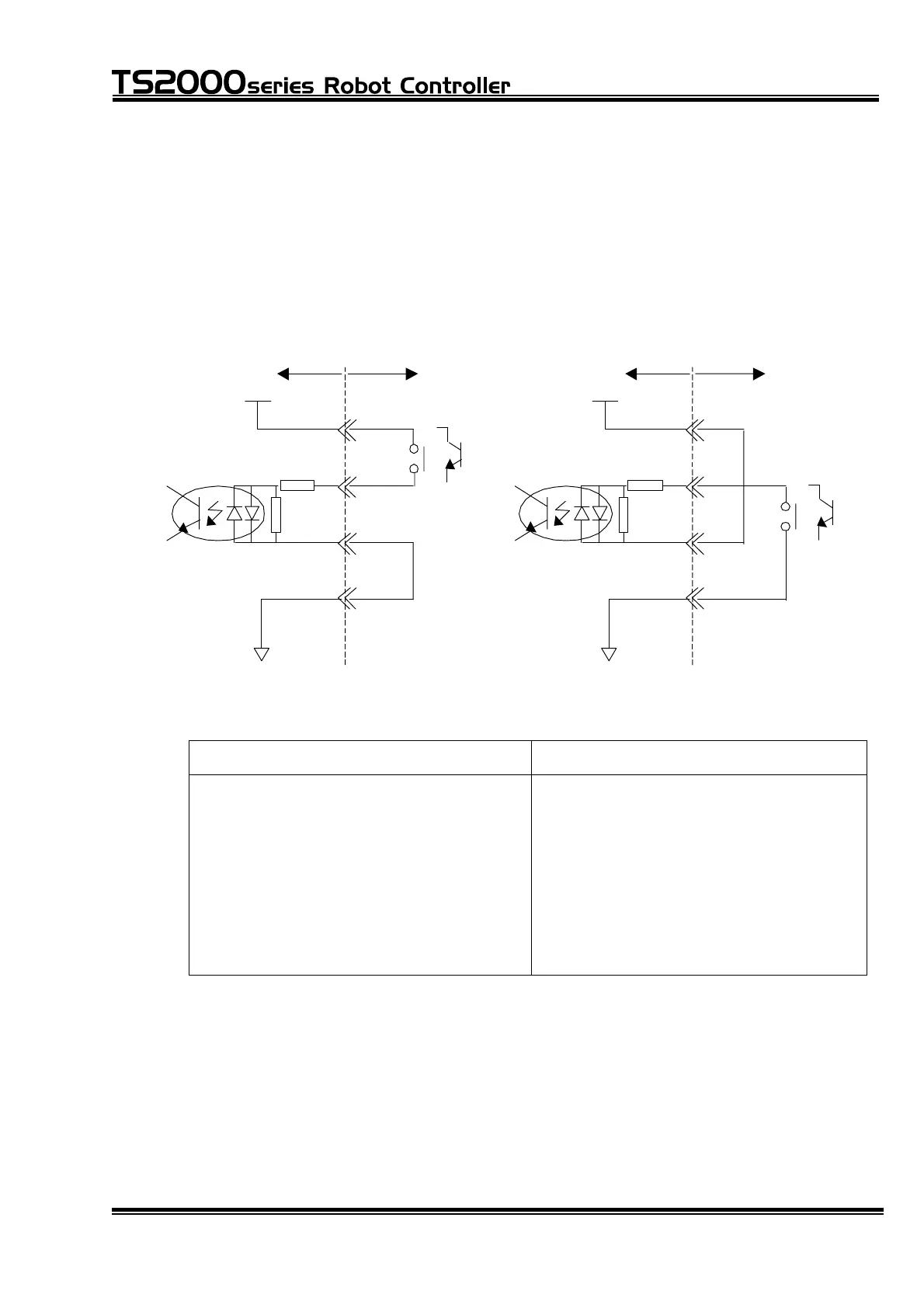

• Example of application circuit and structure of input circuit
Sink type ("–" common) Source type ("+" common)
P24V
P24G
DI_101 ~
INCOM1
~
3
Contact or
transistor
User sideTR48DIOCN
INCOM1
~
3
P24V
P24G
Contact or
transistor
User sideTR48DIOCN
DI_128
(DI_133~ DI_160)
DI_101 ~ DI_128
(DI_133 ~ DI_160)
• Non-voltage contact/transistor specifications
Non-voltage contact specifications Transistor specifications
Contact rating DC24 V, 10 mA or
over
Circuit current Approx. 7 mA
Minimum current DC24 V, 1 mA
Connected impedance
100
Ω or less
Voltage between collector and emitter
30 V or over
Current between collector and emitter
10 mA
Circuit current Approx. 7 mA
Leak current between collector and
emitter 100 µA
STE 71367
– 100 –
