3.2 Network Parameter Setting
3

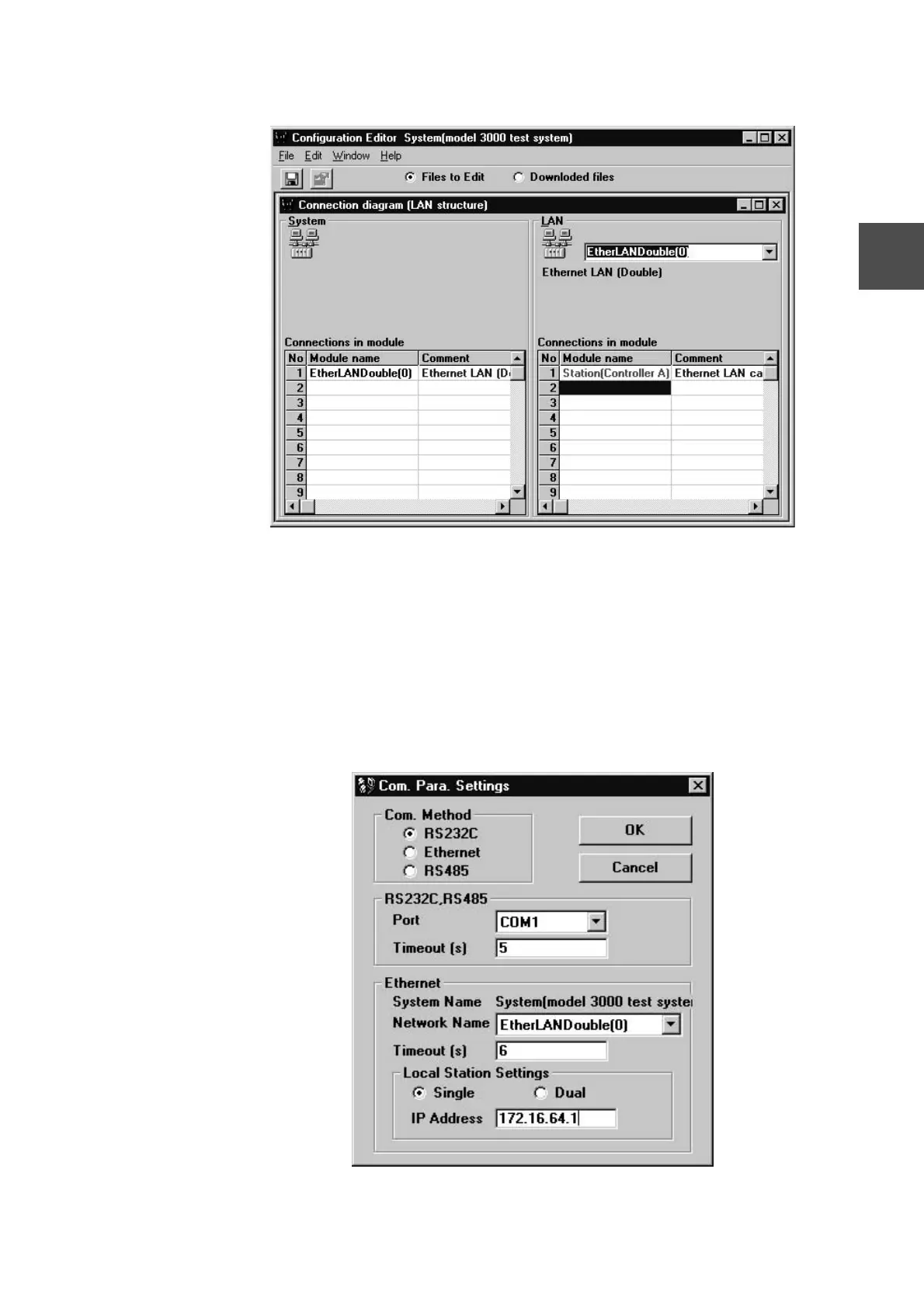

(11)Click Connection (C) to register. The registered result is displayed as shown below.
(12)Execute [File (F)] [Save (S)] to save the registered information.
(13)Confirm the current EN7 module information.
First, connect the Engineering tool to the serial communication port of the EN7
module (TOOL) and take out the information. Set transmission parameters with
[Open (O)] [Transmission parameter setting (T)] on the configuration editor
[Hardware configuration] screen for controller A. In this case, confirm the information
using the serial communication port.
Select RS232C as means of transmission, specify COM1 (in this case) as the port to
use, register EtherLANDouble (0) as network system; 6 as timeout duration (s);
172.16.64.1 as IP Address. Then click [OK].
