TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
103

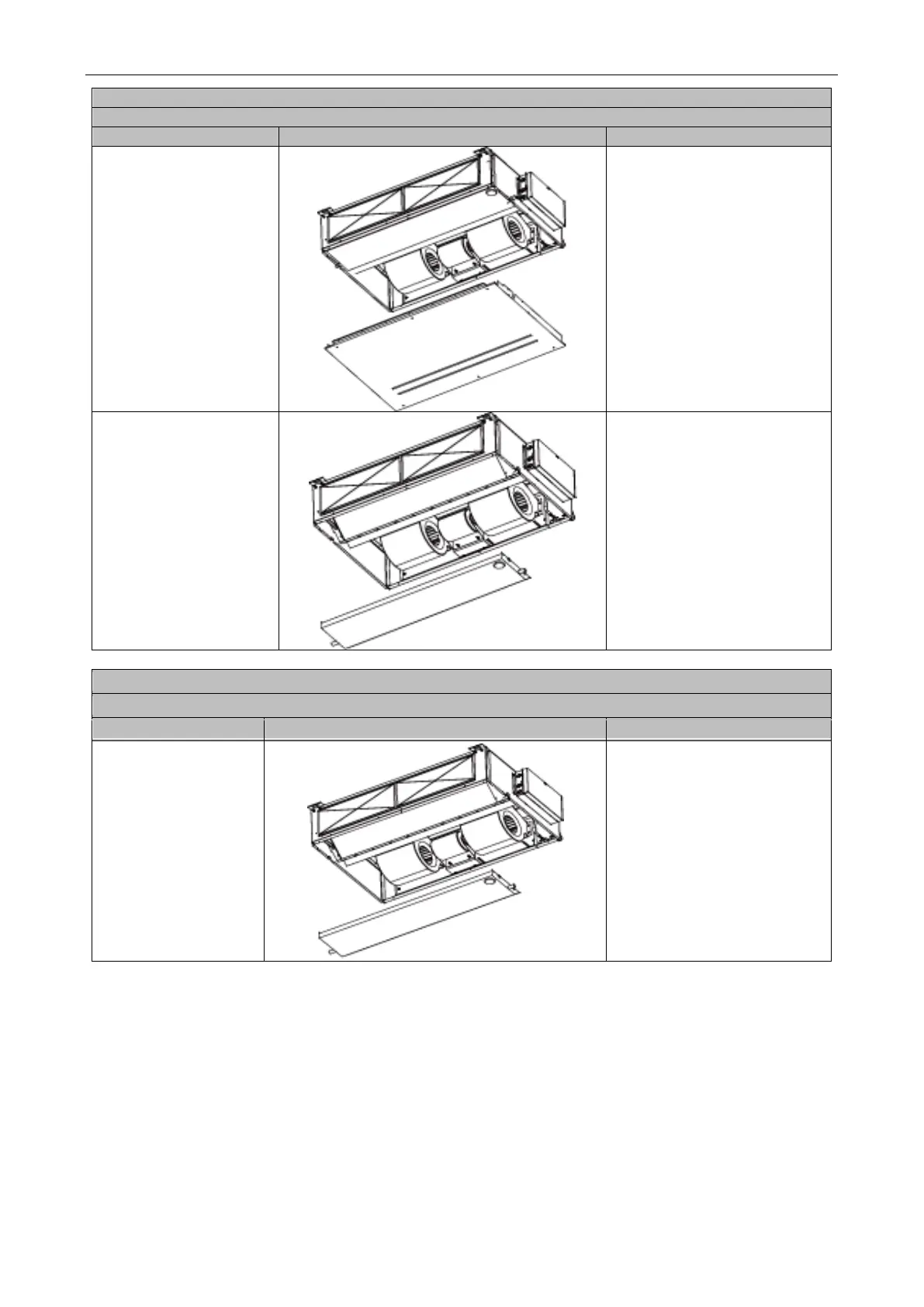

Disassembly of water-containing plate
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
1..Disassembly of cover plate
Disassemble the fastening screws
on the cover plate and remove the
cover plate. (As is shown in the
graph, circle represents 6 fastening
screws under the cover plate and
the box represents two fastening
screws on water-containing plate
symmetrically arranged both on left
and right.)
2..Disassembly of
water-containing plate
Disassemble the fastening screws
on the water-containing plate, pull
upward and remove the
water-containing plate.
Disassembled water-containing
plate is shown in the graph.
Disassembly of fan and motor
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
Disassemble the fixing screws on
the fan components. (As is shown in
Graph 10, circle represents 6
screws.)
Disassemble the fastening screws
on the fan and motor. Remove the
fan. (As is shown in Graph 11, box
represents screws.)
To Next Page
