TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
104

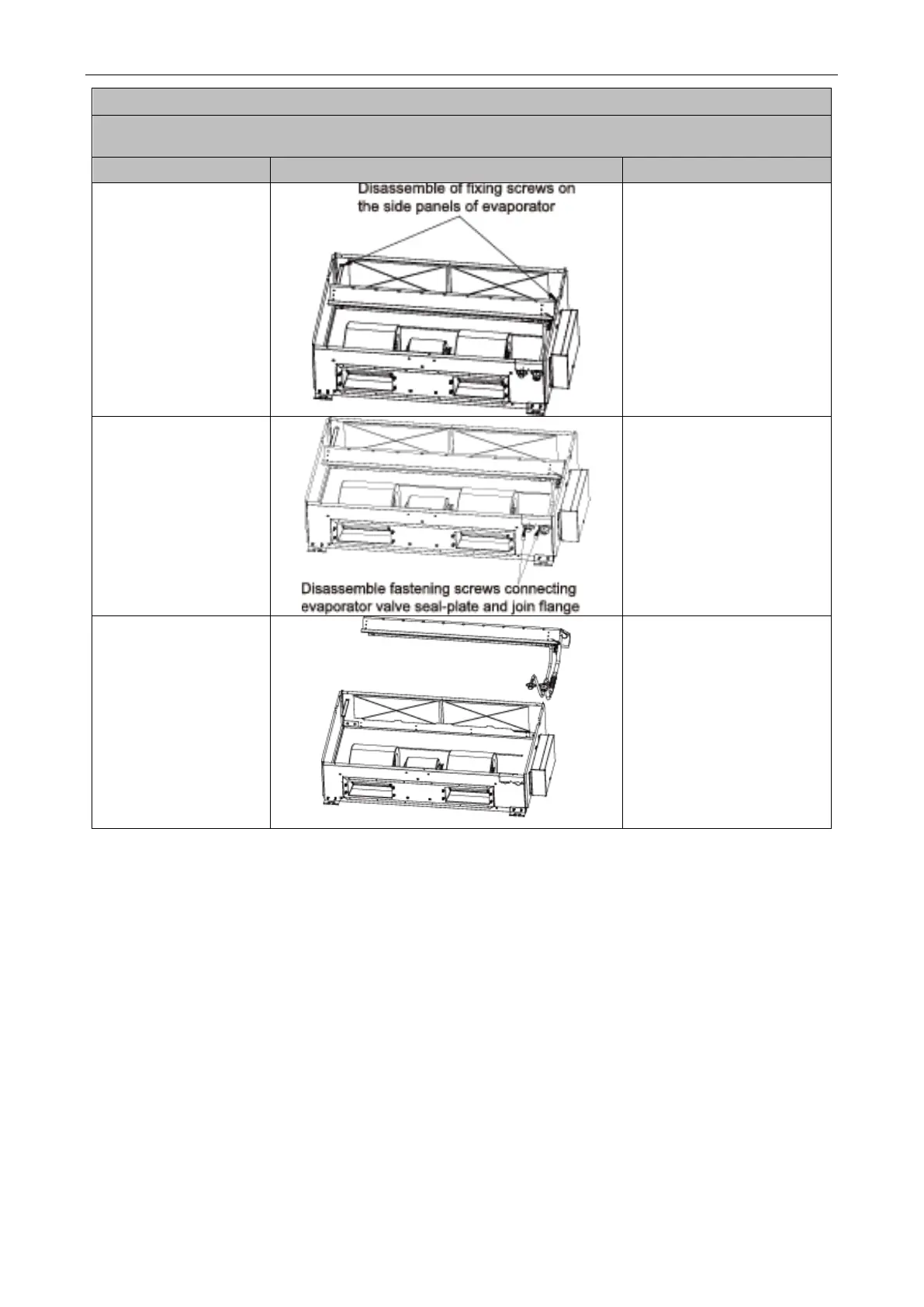

Disassembly of evaporator
Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum fin. If the time for
disassembly shall be long, put the copper tube under pressurized condition.
Step
Illustration
Handling Instruction
1. Disassembly of fixing
screws on the side panels
of evaporator
Disassemble the fastening
screw connecting left and right
side panels on the evaporator
and the upper cover plate. (As is
shown in the arrows direction in
Graph.)
2. Disassemble fastening
screws connecting
evaporator valve
seal-plate and joint flange
Disassemble the fastening
screws on the valve seal-plate
and remove the valve seal-plate.
Disassemble the fastening
screws on the evaporators joint
flange. (As is shown in the graph,
box represents fastening screws
on seal-plates while circle the
fastening screws on joining
flange.
3. Removal of evaporator
Remove the evaporator. Removed
evaporator is shown in the graph.
