Tosot TUHD18ND3F1O User Manual

TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
105
Air Handler type Indoor Unit
Motor and fan
Precondition: The power supply has been disconnected.
Procedures
Diagrams

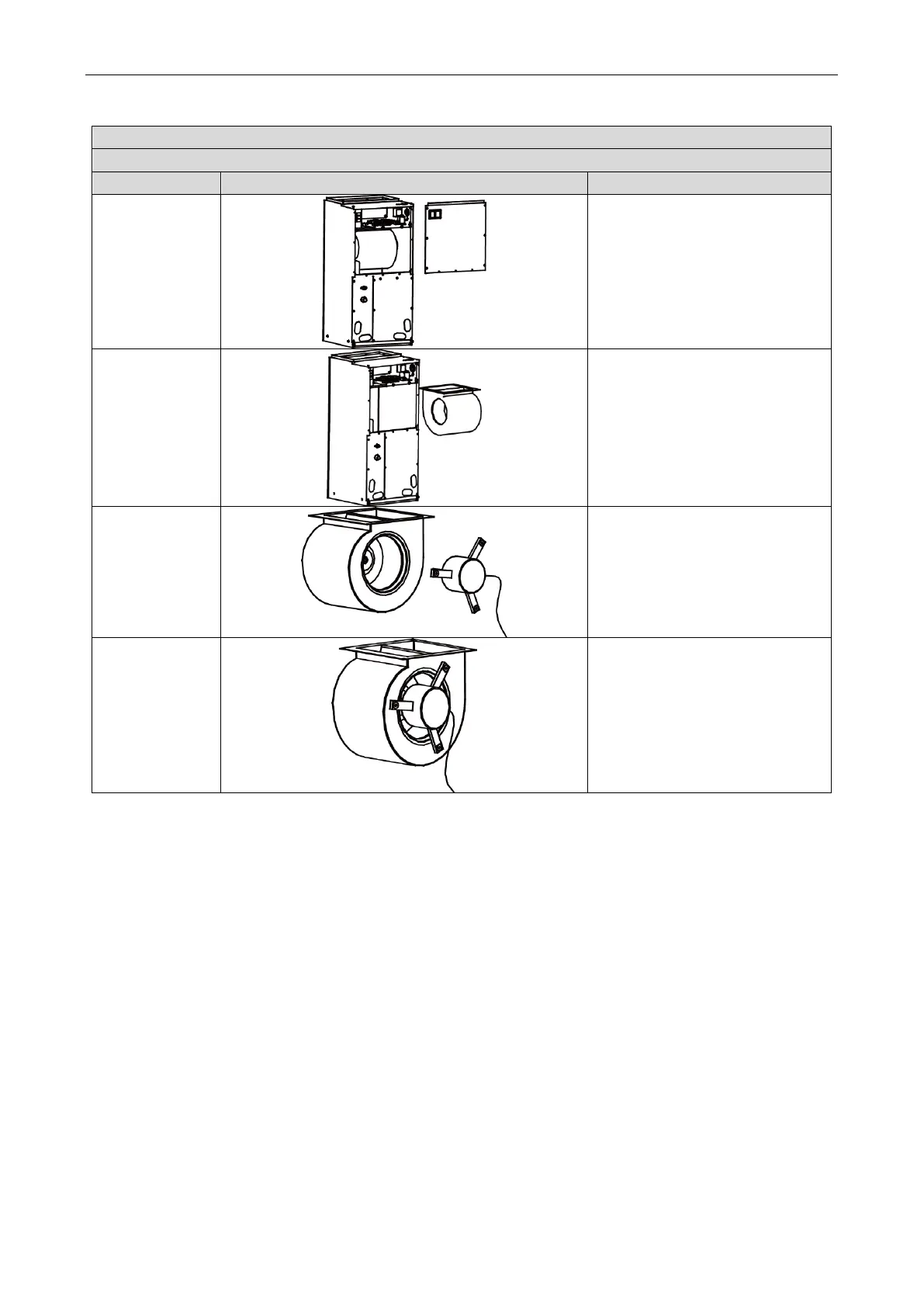

Operating Instructions
1..Remove the
upper panel.
Loosen screws round the upper panel
with a screwdriver.
Remove the upper panel from unit.
2..Remove the
fan.
Disconnect the wires of the fan from the
wiring terminal and draw them out.
Loosen screws located at the front of the
fan with a screwdriver.
Remove the fan from the unit.
3..Remove the
motor.
Loosen screws fixing the motor and fan
blades.
Loosen screw bolts fixing the bracket.
Remove the motor rightward from the
fan.
4..Reinstall the fan.
Place the motor at the proper position.
Tighten screws fixing the motor and fan
blades.
Tighten screw bolts fixning the motor
bracket.
After the installation, reassemble the unit
as before.
