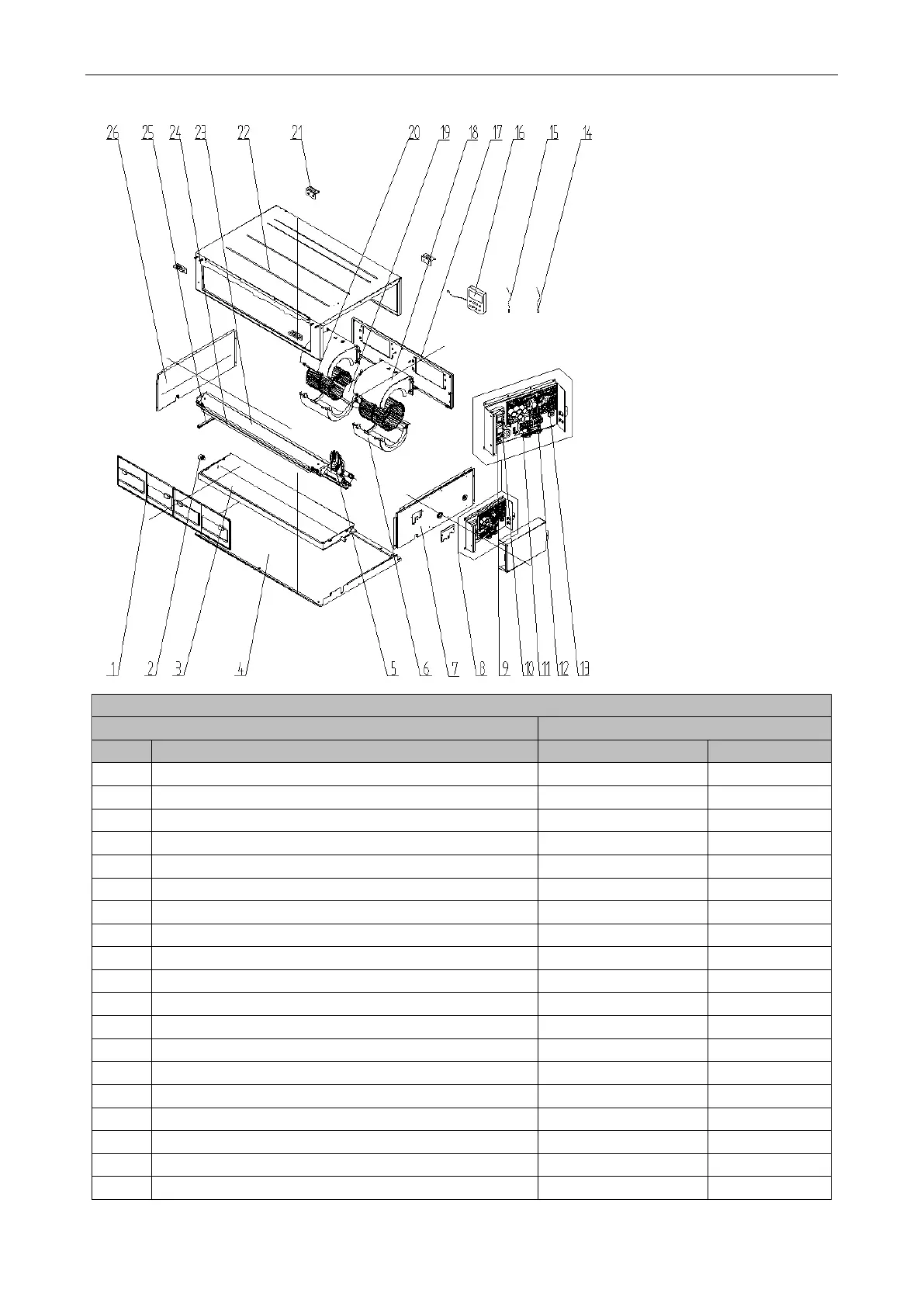

Model: TFH24D3F2I/TFH30D3F2I exploded view and spare parts list
TFH24D3F2I/TFH30D3F2I
Product Code
CF022N0970/ CF022N1010
No.
Name of Part
Part Code
Quantity
1
Filter Sub-Assy
'111253031
2
2
Choke Plug of Drain Pipe
'76712455
2
3
Water Tray Assy
'01285323
1
4
Lower Cover Plate Sub-Assy
'15265301
1
5
Strainer
'07415210
1
6
Propeller Housing(Lower)
'26904100052
2
7
Right Side Plate Sub-Assy
'0131520015501
1
8
Electric Box Assy
'01395200470
1
9
Terminal Board
'42011149
1
10
Filter Board
'30226000065
2
11
Terminal Board
'42010194
1
12
Terminal Board
'4201025301
1
13
Main Board
'30224000065
1
14
Temperature Sensor
'390001921G
1
15
Ambient Temperature Sensor
'3900012123
1
16
Display Board
'30294000007
1
17
Blower Mounting Plate Sub-Assy
'01325200044
1
18
Propeller Housing(Upper)
'26904100051
2
19
Brushless DC Motor
'1570940000601
1
