Tosot TUHD18ND3F1O - Page 122

TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
119
TFH24D3F2I/TFH30D3F2I
Product Code
CF022N0970/ CF022N1010
No.
Name of Part
Part Code
Quantity
20
Centrifugal Fan
'10424100001
2
21
Hook
'02112466
4
22
Top Cover Board Assy
'01265200086
1
23
Evaporator Assy
'01025200120
1
24
Side Plate of Air intake
'01375301
1
25
Supporting Board of evaporator
'018953022
1
26
Left Side Plate Assy
'01315306
1
Above data is subject to change without notice, pls reference the SP in global service website.

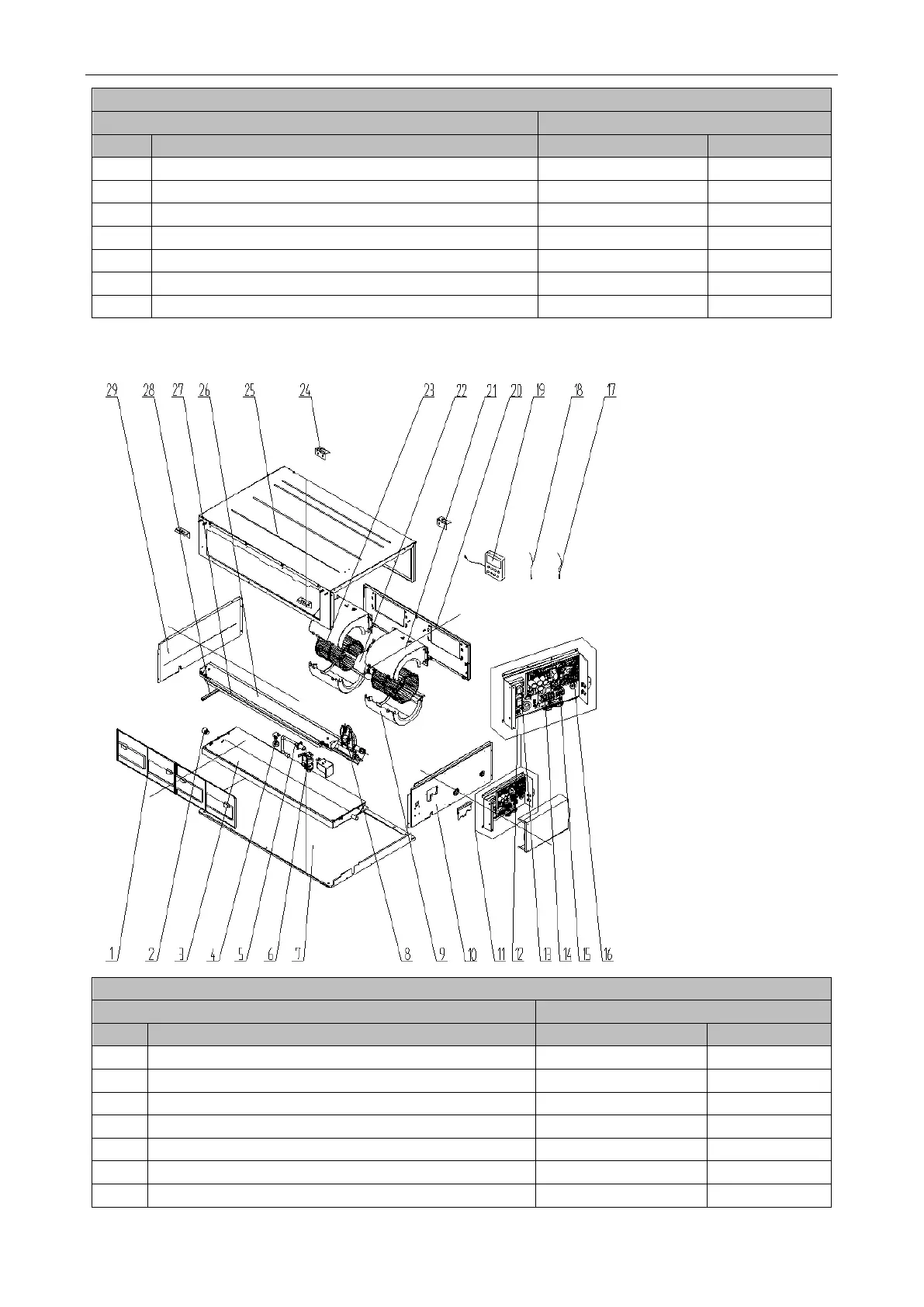

Model: TFH24D3F3I-1/TFH30D3F3I-1 exploded view and spare parts list
TFH24D3F3I-1/TFH30D3F3I-1
Product Code
CF022N0940/ CF022N1000
No.
Name of Part
Part Code
Quantity
1
Filter Sub-Assy
'111253031
2
2
Choke Plug of Drain Pipe
'76712455
2
3
Water Tray Assy
'01285323
1
4
Liquid Level Switch
'4501801203
1
5
Pump Drainpipe
'05235301
1
6
Water Pump
'43138220
1
7
Lower Cover Plate Sub-Assy
'15265301
1
