TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
121

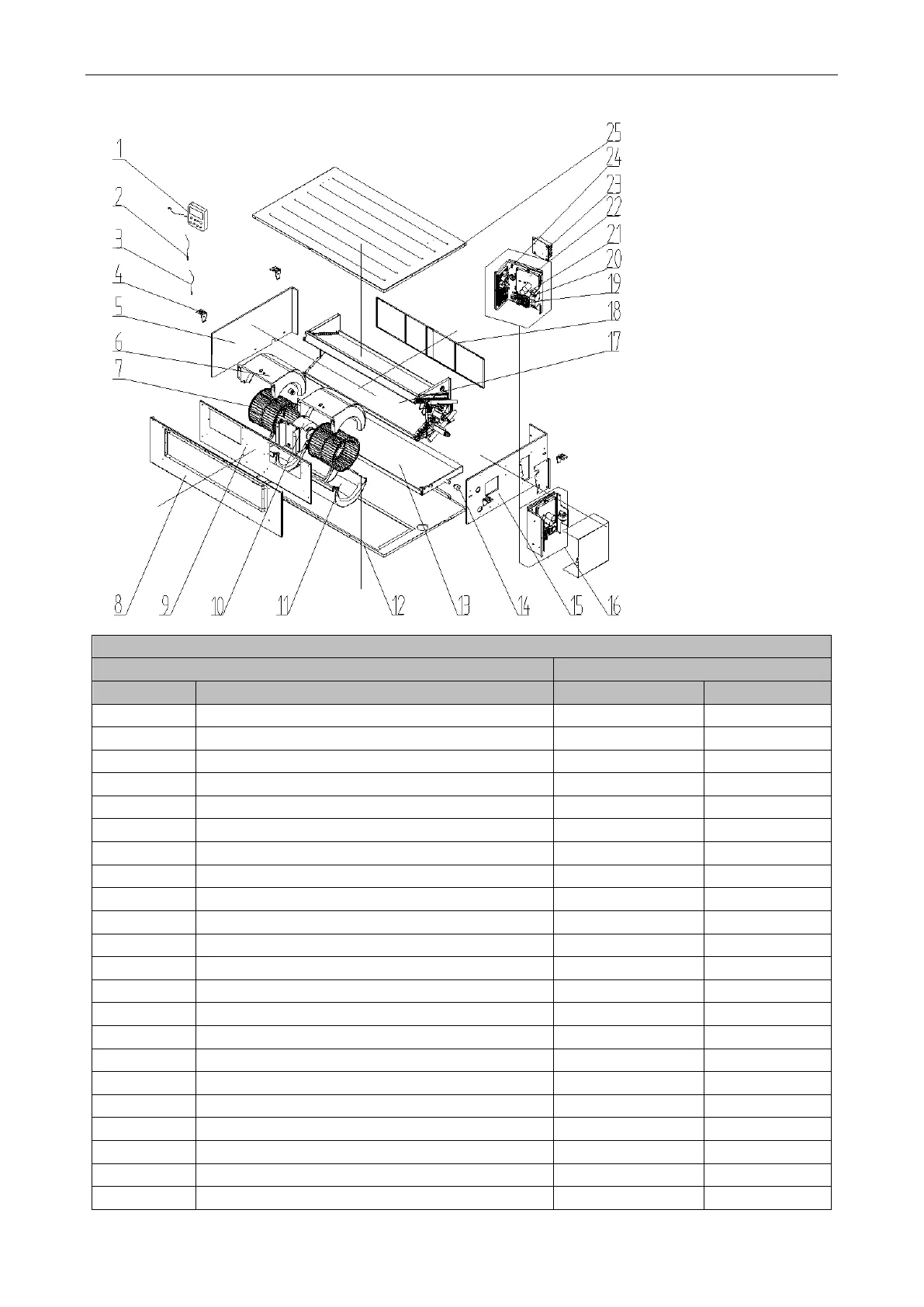

Model: TFH36D3F2I-1 exploded view and spare parts list
TFH36D3F2I-1
Product Code
CF022N0920
No.
Name of Part
Part Code
Quantity
1
Display Board
'30294000007
1
2
Ambient Temperature Sensor
'3900012123
1
3
Tube sensor
'3900012128
1
4
Hook
'02205209
4
5
Left Side Plate Sub-Assy
'01315200064
1
6
Propeller Housing(Upper)
'26905200010
2
7
Centrifugal Fan
'10425200002
2
8
Front Side Plate Sub-Assy
'01315200091
1
9
Blower Mounting Plate Sub-Assy
'01325200057
1
10
Brushless DC Motor
'15709400008
1
11
Propeller Housing(Lower)
'26905200011
2
12
Top Cover Board Assy
'01265200045
1
13
Water Tray Assy
'01285200025
1
14
Choke Plug of Drain Pipe
'76712455
2
15
Right Side Plate Assy
'01315200161
1
16
Electric Box Assy
'01395200458
1
17
Water Pump
'4313822001
1
18
Water Level Switch
'4501270301
1
19
Pump Drainpipe
'05235301
1
20
Evaporator Assy
'01025200133
1
21
Filter Sub-Assy
'111253036
2
22
Terminal Board
'42010194
1
