TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
122
TFH36D3F2I-1
Product Code
CF022N0920
No.
Name of Part
Part Code
Quantity
23
Reactor
'43138000047
1
24
Terminal Board
'4201025301
1
25
Main Board
'30221000018
1
26
Radiator
'49018000068
1
27
Main Board
'30224000063
1
28
Bottom Cover Plate Assy
'01265200081
1
Above data is subject to change without notice, pls reference the SP in global service website.

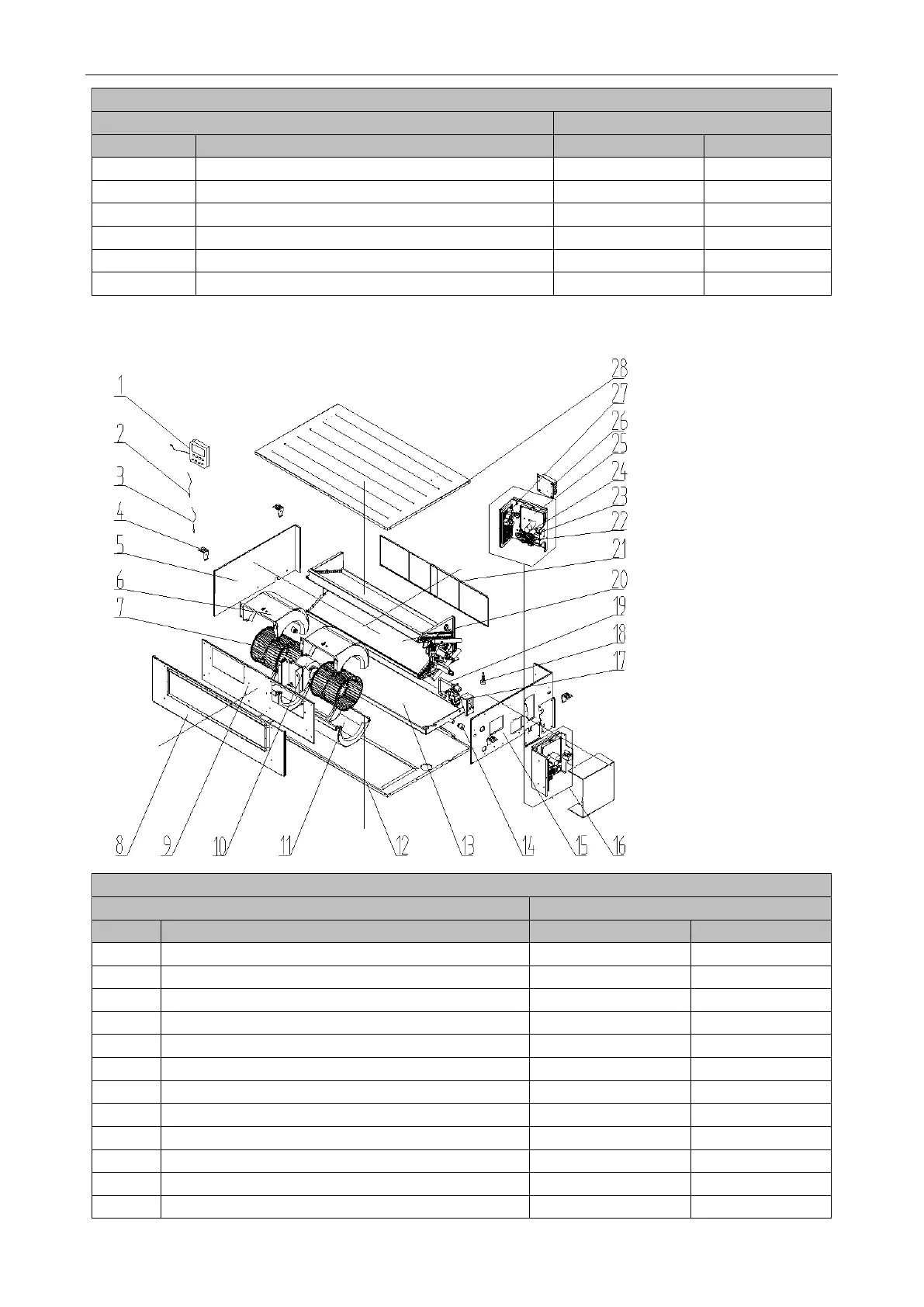

Model: TFH36D3F3I exploded view and spare parts list
TFH36D3F3I
Product Code
CF022N0930
No.
Name of Part
Part Code
Quantity
1
Display Board
'30294000007
1
2
Ambient Temperature Sensor
'3900012123
1
3
Tube sensor
'3900012128
1
4
Hook
'02205209
4
5
Left Side Plate Sub-Assy
'01315200064
1
6
Propeller Housing(Upper)
'26905200010
2
7
Centrifugal Fan
'10425200002
2
8
Front Side Plate Sub-Assy
'01315200091
1
9
Blower Mounting Plate Sub-Assy
'01325200057
1
10
Brushless DC Motor
'15709400008
1
11
Propeller Housing(Lower)
'26905200011
2
12
Top Cover Board Assy
'01265200045
1
