TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
124

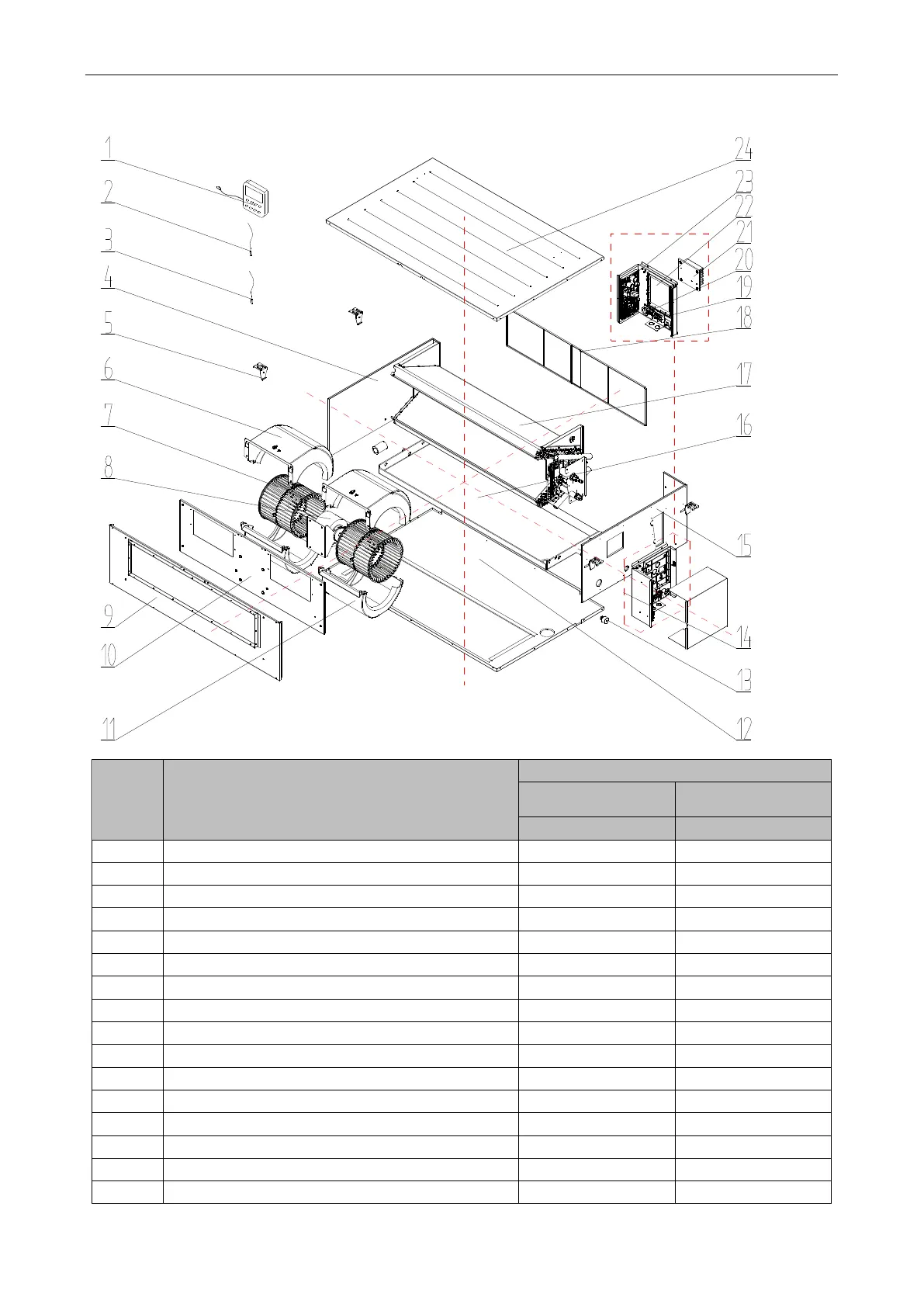

Model: TFH42D3F2I-1/TFH48D3F2I-1 exploded view and spare parts list
No.
Name of Part
TFH42D3F2I/TFH48D3F2I
Product Code
CF022N0910/
CF022N0960
Part Code
Quantity
1
Display Board
30294000007
1
2
Tube sensor
3900012128
1
3
Ambient Temperature Sensor
3900012123
1
4
Left Side Plate Sub-Assy
01315200064
1
5
Hook
02205209
4
6
Propeller Housing(Upper)
26905200010
2
7
Centrifugal Fan
10425200002
2
8
Brushless DC Motor
15709400008
1
9
Front Side Plate Sub-Assy
01315200091
1
10
Blower Mounting Plate Sub-Assy
01325200057
1
11
Propeller Housing(Lower)
26905200011
2
12
Top Cover Board Assy
01265200045
1
13
Choke Plug of Drain Pipe
76712455
1
14
Electric Box Assy
01395200454
1
15
Right Side Plate Assy
0131520006601
1
16
Water Tray Assy
01285200025
1
