TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
125
No.
Name of Part
TFH42D3F2I/TFH48D3F2I
Product Code
CF022N0910/
CF022N0960
Part Code
Quantity
17
Evaporator Assy
01025200055
1
18
Filter Sub-Assy
111253036
2
19
Terminal Board
42010194
1
20
Terminal Board
4201025301
1
21
Radiator
49018000068
1
22
Main Board
30221000011
1
23
Main Board
30224000039
1
24
Bottom Cover Plate Assy
01265200081
1
Above data is subject to change without notice, pls reference the SP in global service website.

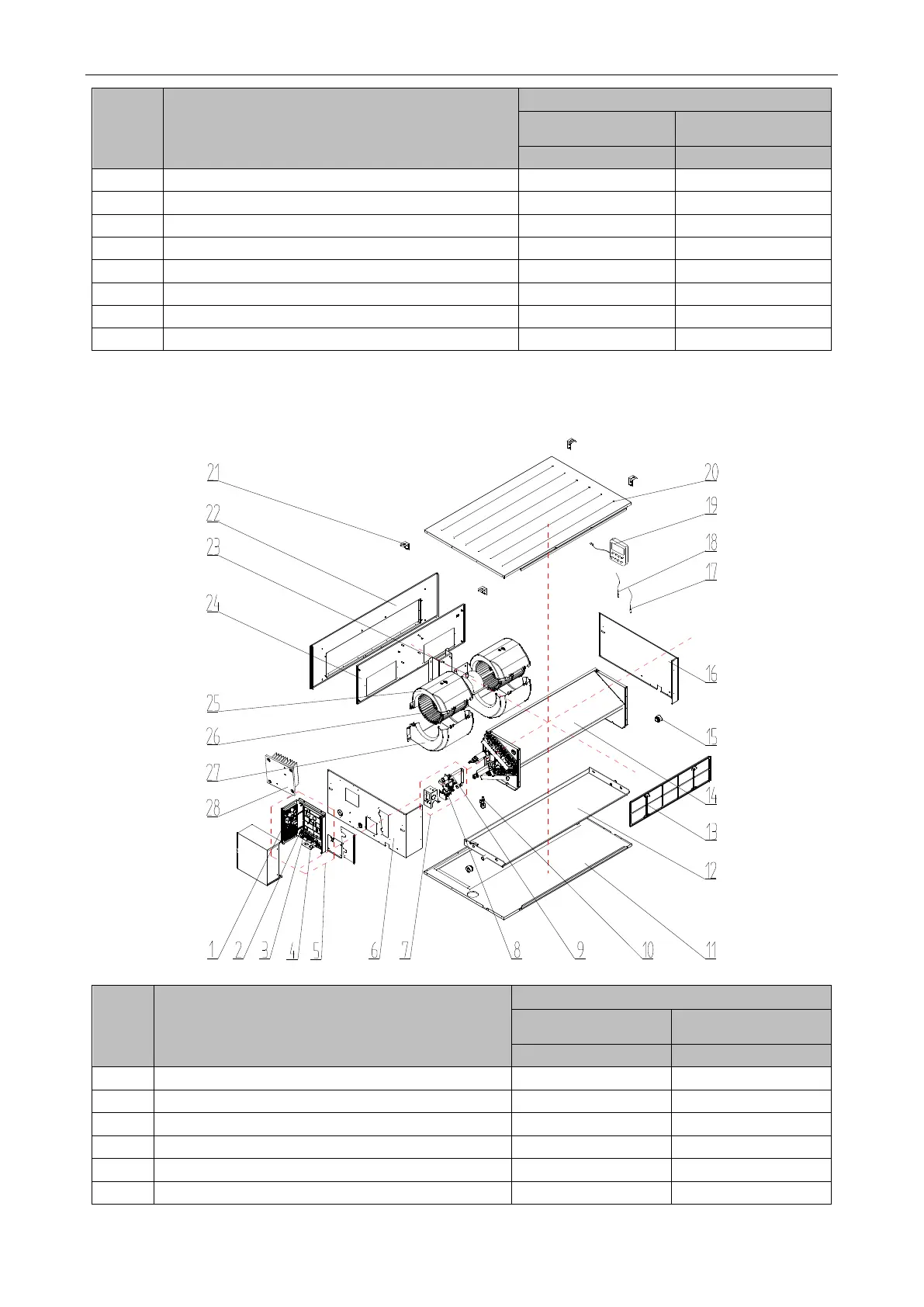

Model: TFH42D3F3I/TFH48D3F3I exploded view and spare parts list
No.
Name of Part
TFH42D3F3I/TFH48D3F3I
Product Code
CF022N0900/
CF022N0990
Part Code
Quantity
1
Main Board
30224000039
1
2
Main Board
30221000011
1
3
Terminal Board
4201025301
1
4
Terminal Board
42010194
1
5
Electric Box Assy
01395200471
1
6
Right Side Plate Sub-Assy
01315200078
1
