Touch Dynamic CP200 - Customer Display Connection

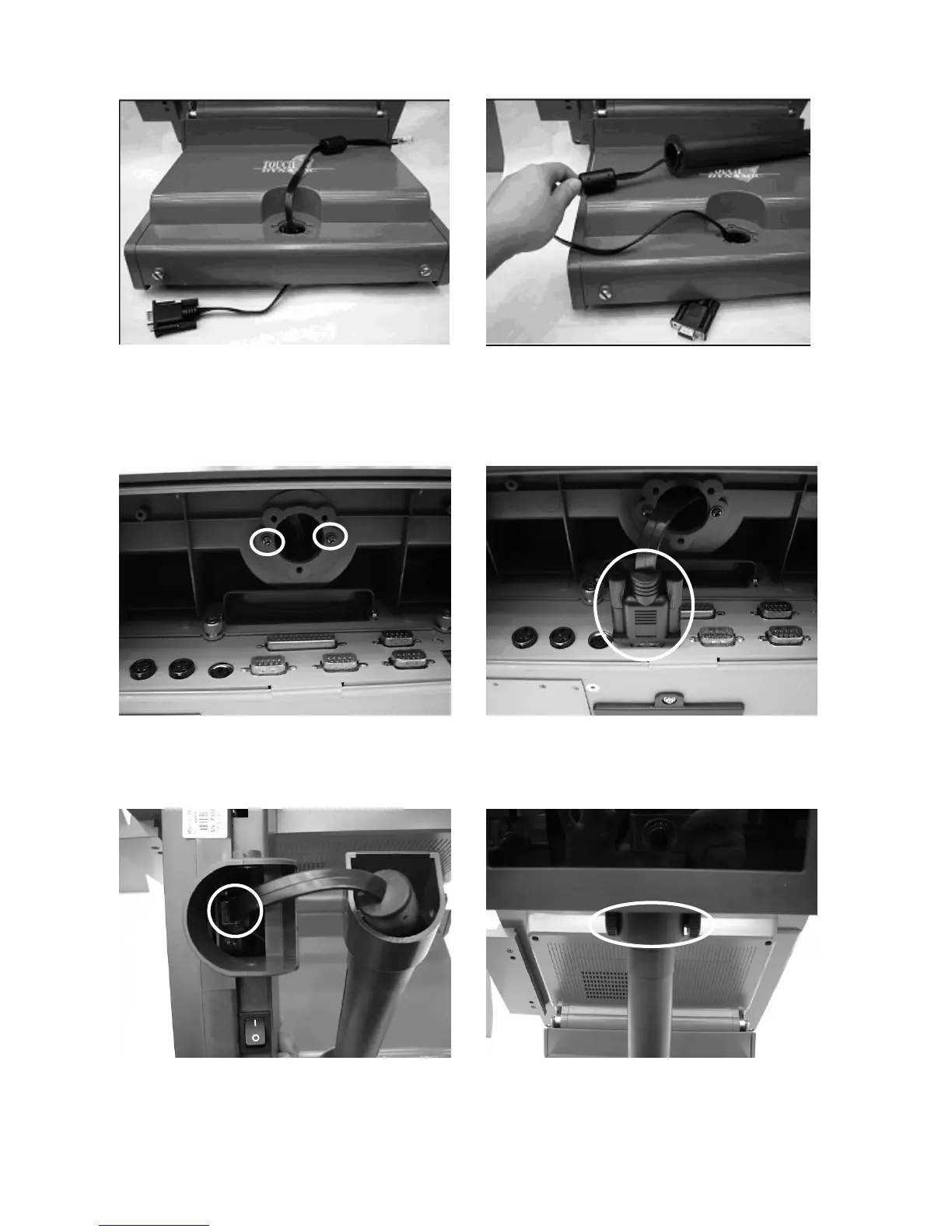

4.3 Customer Display Installation
a. Pass the cable through the hole. b. Pass the cable through the pole.
Place the short or long pole into the
hole.
c. Tighten the screws (2) under the pole. d. Connect the cable. Please setup the
COM port power.
e. Connect the cable into the display. f. Tighten the screws as shown in the
picture.
21
