5. System Disassembly

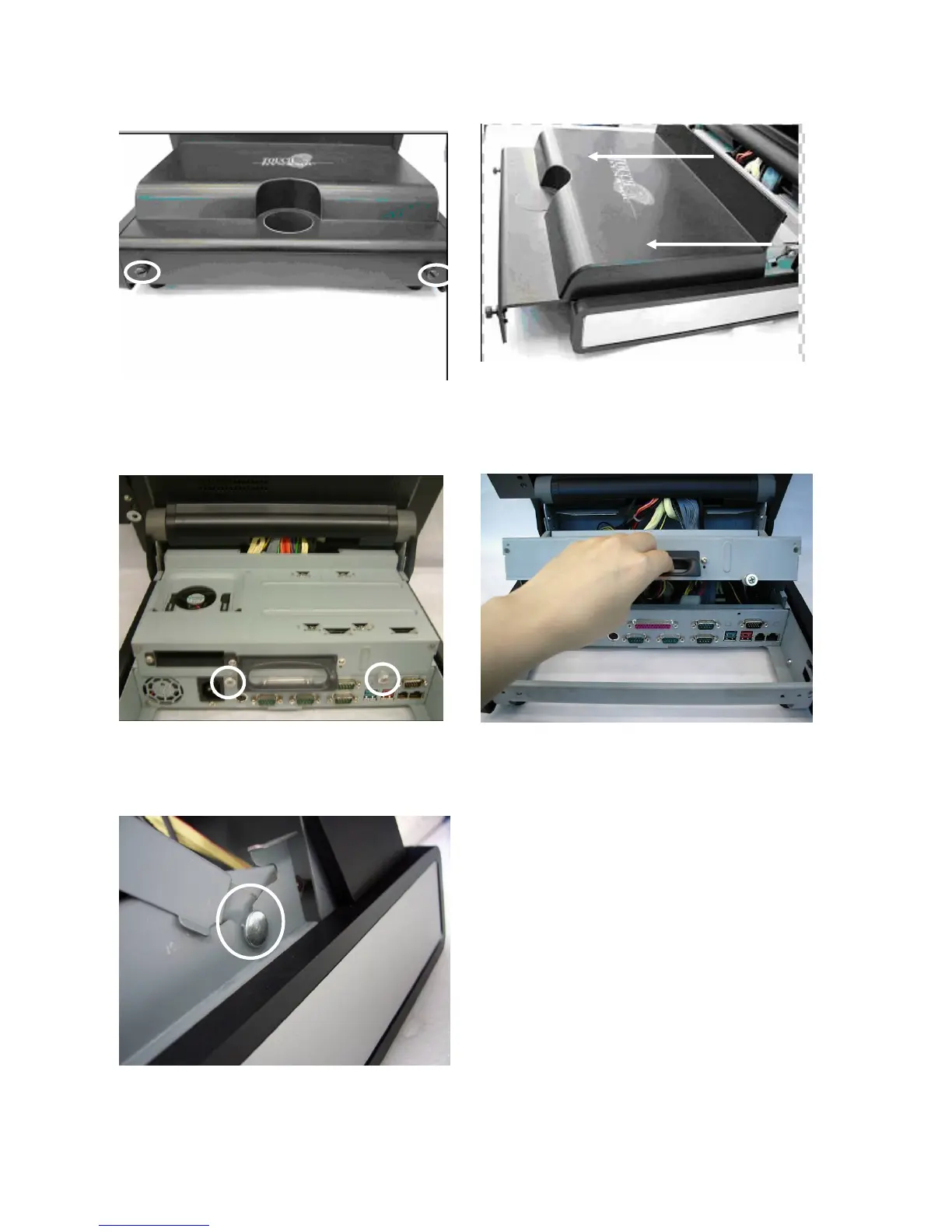

5.1. Remove the Base Cover
a. Release the thumbscrews (2). b. Slide the top cover towards the back and
remove it.
c. Release the thumbscrews (2). d. Pull the base cover bracket towards you
by the handle, and lift it up.
e. Fix the base cover in the open position
as shown in the picture.
23
