TP-Link AP500 User Manual

11
Chapter 3
With the Web-based management page, it is easy to configure and manage the AP
device. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with
a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log into your AP device.
1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your
computer.

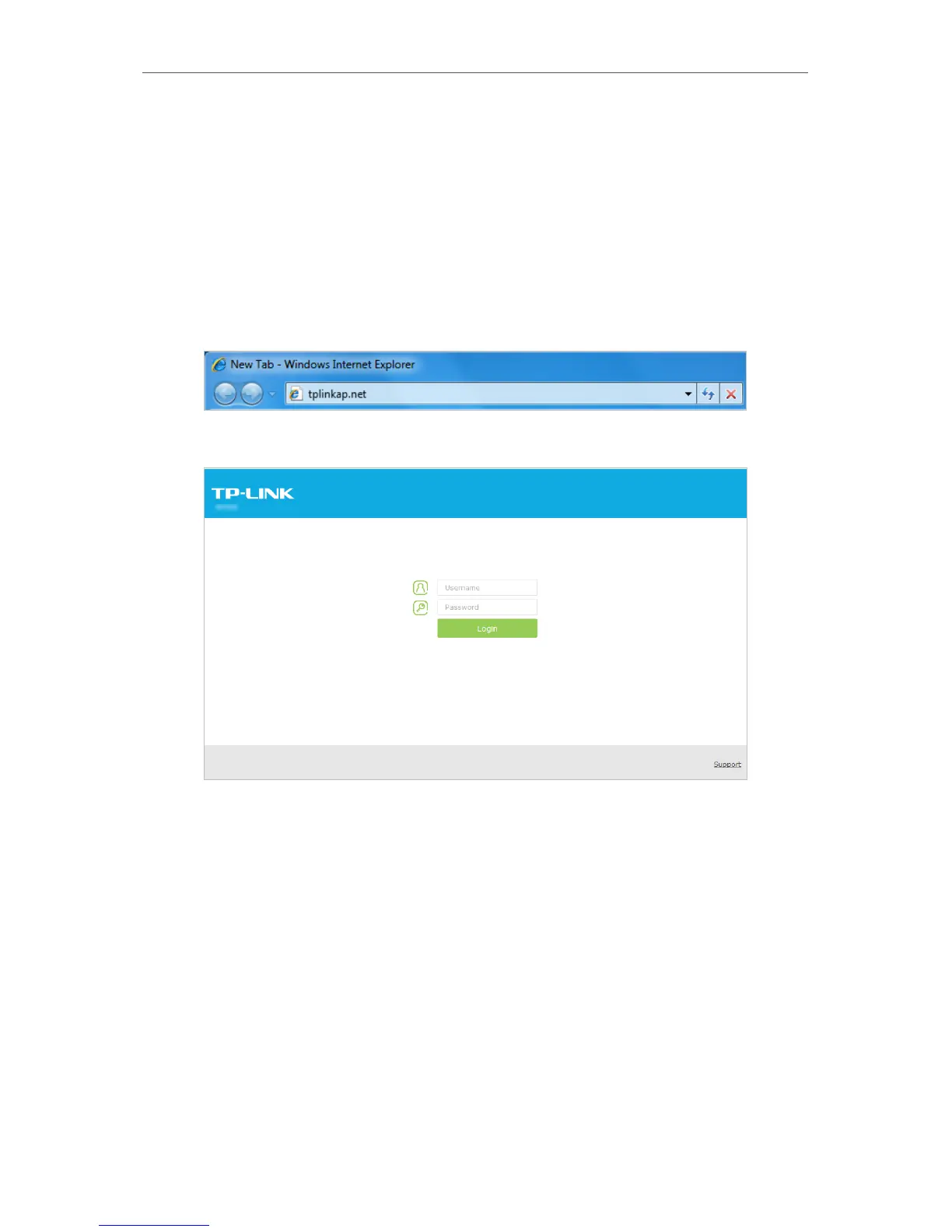

2. Launch your Web browser. Enter http://tplinkap.net in the address field and Press
Enter (PC) or Return (Mac).
3. Upon initial login, please enter admin in the username and password fields.
4. In the following pop-up window, it is recommended to change the device’s username
and password from its default settings for network security. Enter and confirm new
username and password, then click Confirm.

TP-Link AP500 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
LED indicators	Power, WPS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Processor frequency	1000 MHz
Compatible operating systems	Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Detachable antenna
Antennas quantity	3
Package type	Box

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
