Slice: Displays the time-slice of the time-range.
Mode: Displays the mode the time-range adopts.
Operation: Click Edit to modify this time-range and click Detail to display the
complete information of this time–range.
10.2.2 PoE Time-Range Create
On this page you can create time-ranges.
Choose the menu PoE→PoE Time-Range→PoE Time-Range Create to load the following page.

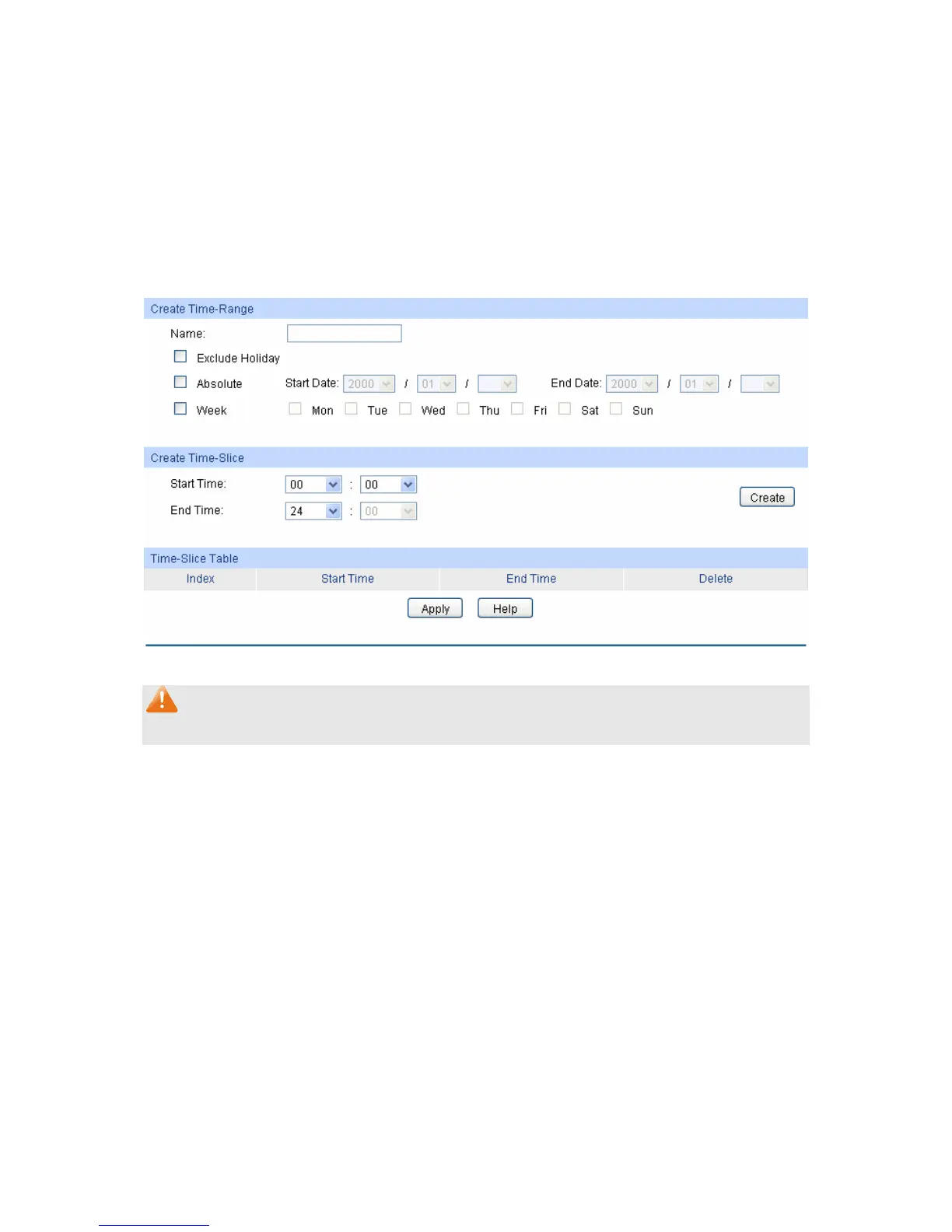

Figure 10-4 Time-Range Create
Note:
To successfully configure time-ranges, please firstly specify time-slices and then time-ranges.
The following items are displayed on this screen:
¾ Create Time-Range
Name: Enter the name of the time-range for time identification.
Exclude Holiday: Select Exclude Holiday, and the port based on this time-range
may not supply power when the system time is within the holiday
Absolute: Select Absolute to configure absolute time-range. The port based
on this time-range will supply power based on this time-range
when the system time is within the absolute time-range.
Week: Select Week to configure week time-range. The port based on this
time-range will supply power based on this time-range when the
system time is within the week time-range.
¾ Create Time-Slice
Start Time: Set the start time of the time-slice.
End Time: Set the end time of the time-slice.
135
