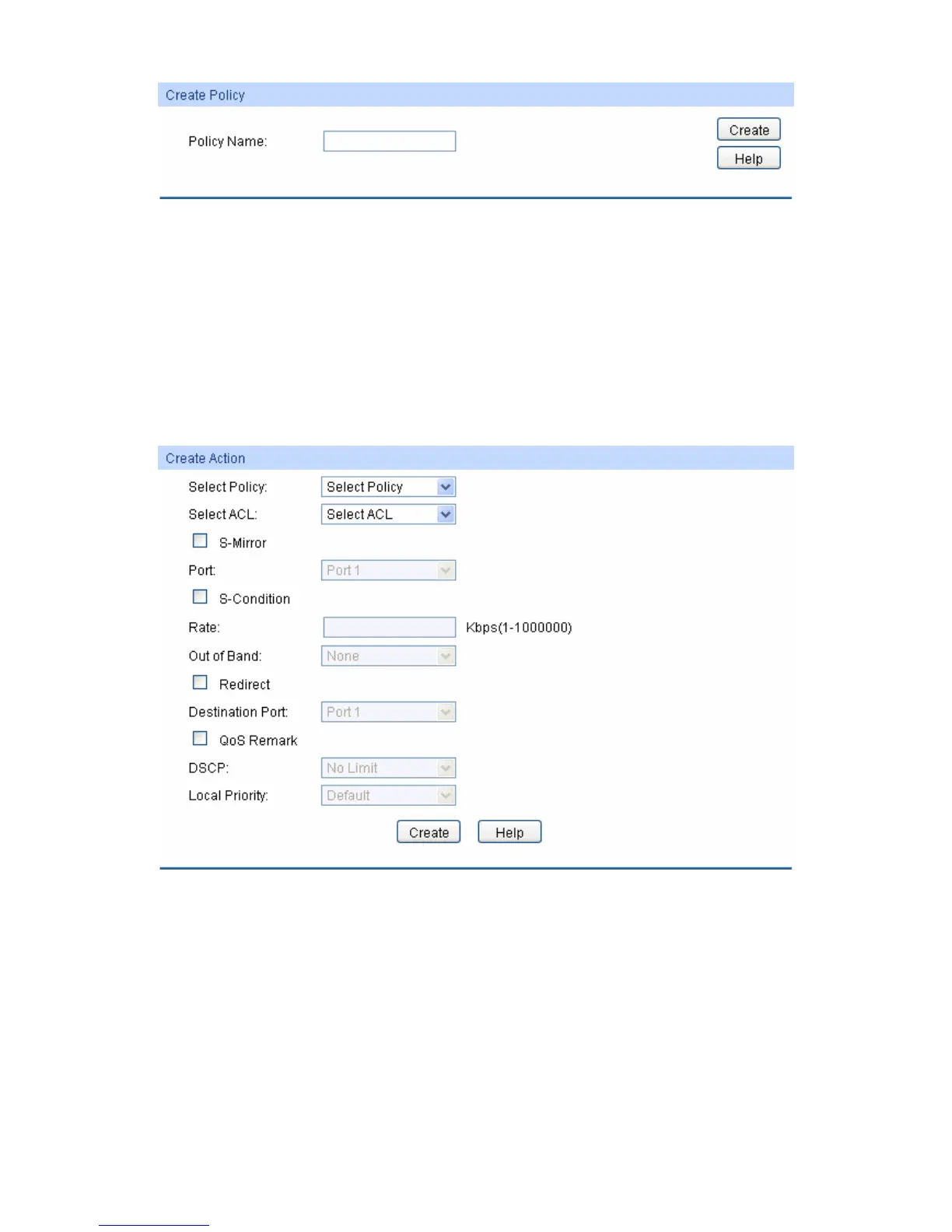

Figure 11-10 Create Policy
The following entries are displayed on this screen:
¾ Create Policy
Policy Name: Enter the name of the policy.
11.3.3 Action Create
On this page you can add ACLs and create corresponding actions for the policy.
Choose the menu ACL→Policy Config→Action Create to load the following page.
Figure 11-11 Action Create
The following entries are displayed on this screen:
¾ Create Action
Select Policy: Select the name of the policy.
Select ACL: Select the ACL for configuration in the policy.
S-Mirror: Select S-Mirror to mirror the data packets in the policy to the
specific port.
145
