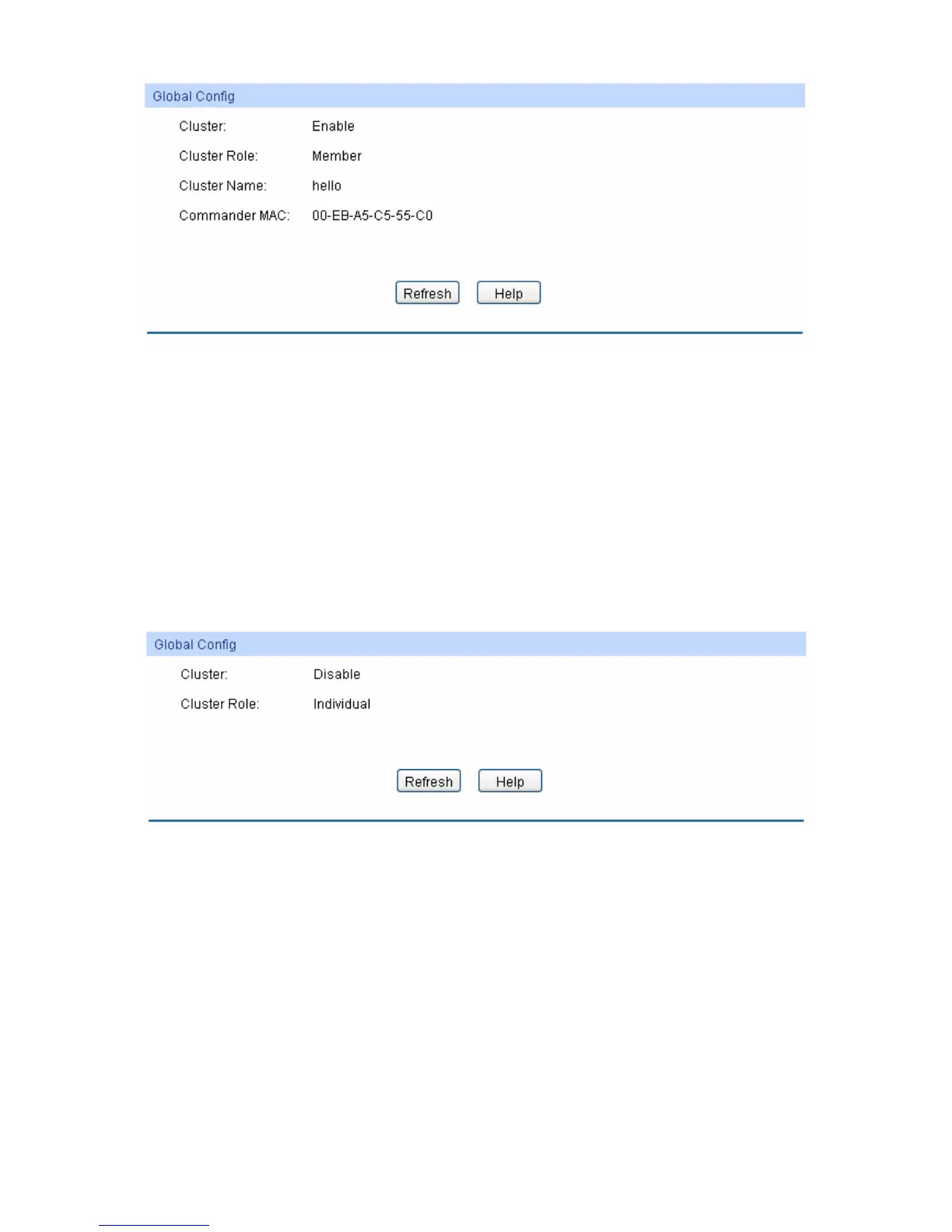

Figure 15-10 Cluster Summary for Member Switch
The following entries are displayed on this screen:
¾ Global Config
Cluster: Displays the cluster status (enabled or disabled) of the switch.
Cluster Role: Displays the role the switch plays in the cluster.
Cluster Name: Displays the name of the current cluster the switch belongs to.
Commander MAC: Displays the MAC address of the commander switch.
z For an individual switch, the following page is displayed:
Figure 15-11 Cluster Summary for Individual Switch
The following entries are displayed on this screen:
¾ Global Config
Cluster: Displays the cluster status (enabled or disabled) of the switch.
Cluster Role: Displays the role the switch plays in the cluster.
15.3.2 Cluster Config
On this page you can configure the status of the cluster the switch belongs to.
Choose the menu Cluster→Cluster→Cluster Config to load the following page.
z For a candidate switch, the following page is displayed.
