Location Identification TLV
The Location Identification TLV provides for advertisement of
location identifier information to Communication Endpoint
Devices, based on configuration of the Network Connectivity
Device it's connected to. You can set the Location Identification
content in Location Identification Parameters. If Location
Identification TLV is included and Location Identification
Parameters isn't set, a default value is used in Location
Identification TLV.
Extended Power-Via-MDI TLV
The Extended Power-Via-MDI TLV is intended to enable
advanced power management between LLDP-MED Endpoint
and Network Connectivity Devices, and it allows advertisement
of fine grained power requirement details, Endpoint power
priority, as well as both Endpoint and Network Connectivity
Device power status.
Inventory TLV
The Inventory TLV set contains seven basic Inventory
management TLVs, that is, Hardware Revision TLV, Firmware
Revision TLV, Software Revision TLV, Serial Number TLV,
Manufacturer Name TLV, Model Name TLV and Asset ID TLV.
If support for any of the TLVs in the Inventory Management set
is implemented, then support for all Inventory Management
TLVs shall be implemented.
LLDP-MED is configured on the Global Config, Port Config, Local Info and Neighbor Info
pages.
14.4.1 Global Config
On this page you can configure the LLDP-MED parameters of the device globally.
Choose the menu LLDP→LLDP-MED→Global Config to load the following page.

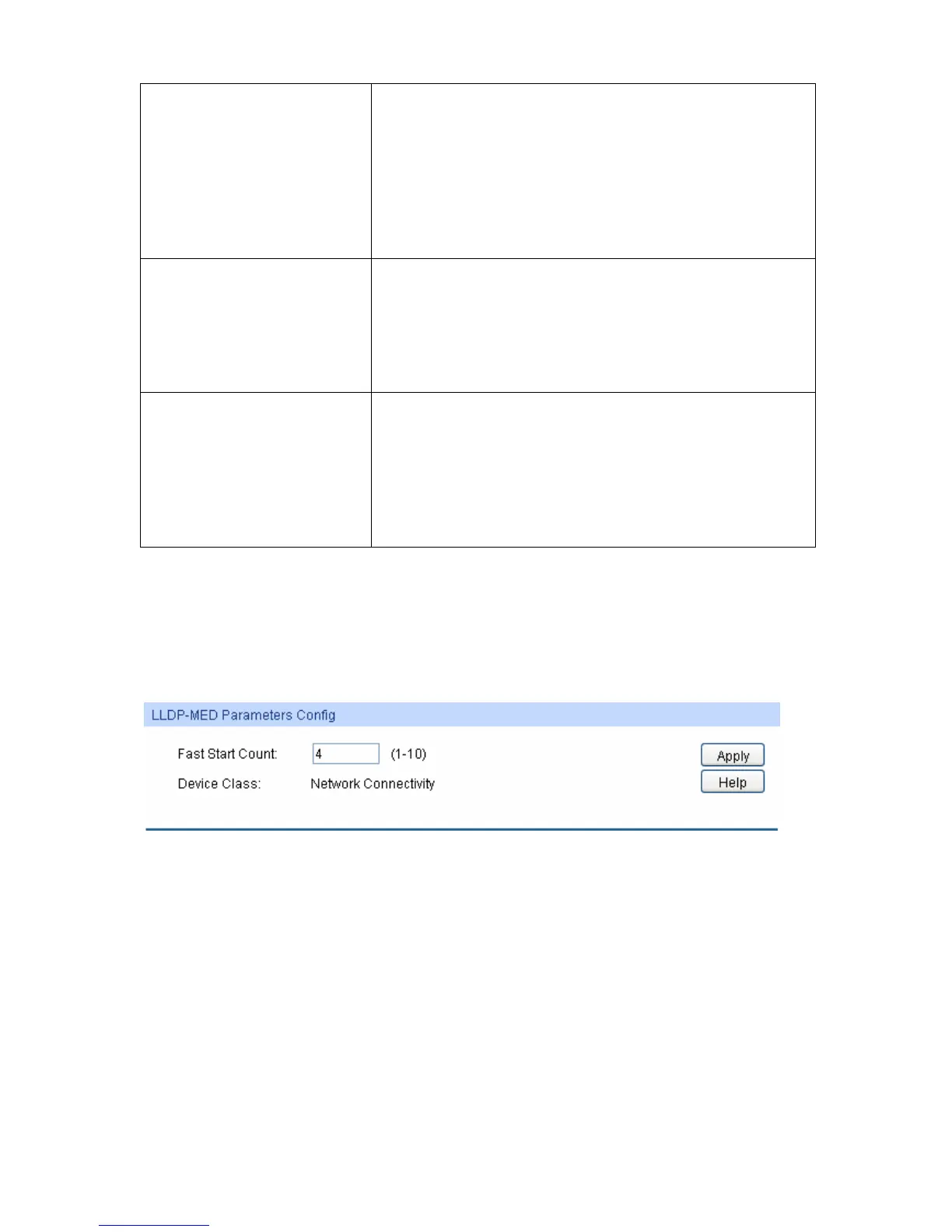

Figure 14-6 LLDP-MED Global Configuration
The following entries are displayed on this screen:
¾ LLDP-MED Parameters Config
Fast Start Count: When LLDP-MED fast start mechanism is activated, multiple
LLDP-MED frames will be transmitted based on this parameter.
Device Class: LLDP-MED devices are comprised of two primary device types:
Network Connectivity Devices and Endpoint Devices. In turn,
Endpoint Devices are composed of three defined Classes: Class I,
Class II and Class III. Bridge is a Network Connectivity Device.
14.4.2 Port Config
On this page you can configure all ports' LLDP-MED parameters.
